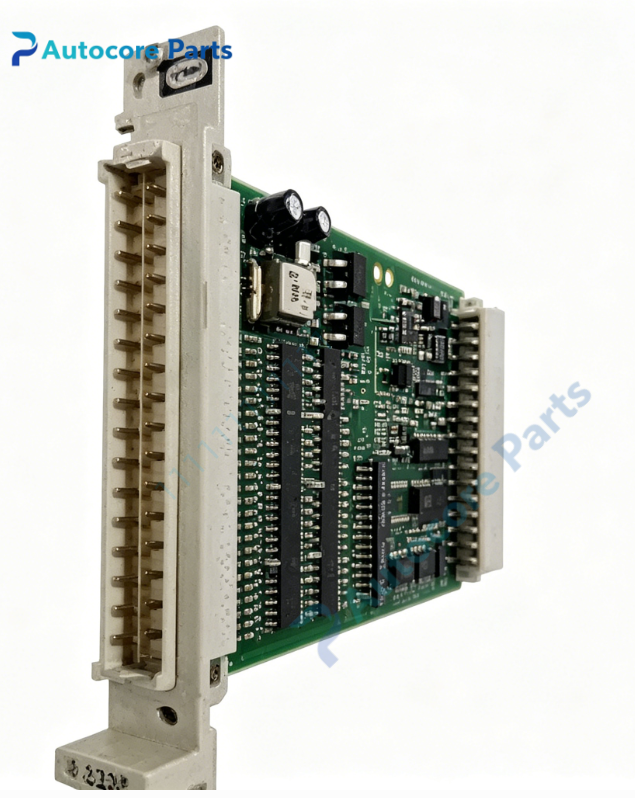

HIMatrix DOZ7136 Digital Output Module

Technical Specifications

Model:DOZ7136

Brand:HIMA(HIMatrix)

Safety certification:SIL3,IEC61508,PL e(Cat.4),TÜV certified

Signal:16-channel digital output

Output level:24V DC

Diagnosis:Wire break and short circuit monitoring

Mounting:DIN rail installation

Protection class:IP20

Power supply:24V DC

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.44kg

Certification:CE

System compatibility:Matches HIMA HIMatrix safety control system,outputs safety on-off signals to solenoid valves,actuators and field safety devices,for petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function:SIL3 fail-safe digital output module.Executes safety logic commands from controller to drive field safety equipment.Continuously monitors output wiring for open and short circuit faults.

Installation:Mount on DIN rail inside control cabinet,wire field actuators to module terminals,complete safety parameter configuration via SILworX software.

Interface:

‑16 channels of digital output terminals

‑24V DC power terminal

‑Backplane bus connector for data exchange

‑LED indicators for channel status,fault and communication

Circuit feature:Dual channel fail-safe hardware architecture,comprehensive self-test function,strong anti-interference performance,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature:HIMatrix 16-channel SIL3 digital output module DOZ7136. Common faults:output channel burnout,switching failure,diagnosis circuit fault.Confirm firmware version before replacement.

Diagnostic:Module or wiring fault triggers channel fault alarm;controller will force output to safe state and execute safety trip logic.

Built‑in function:DOZ7136 sends safety shutdown signals to field devices for safety interlock and emergency shutdown protection,widely used for chemical and power plant safety spare replacement.

Product Brief

DOZ7136 belongs to HIMatrix compact safety I/O family,DIN rail mounted 16-channel SIL3 fail-safe digital output module. Verify system firmware and rack compatibility before ordering. Test output channel and line diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
