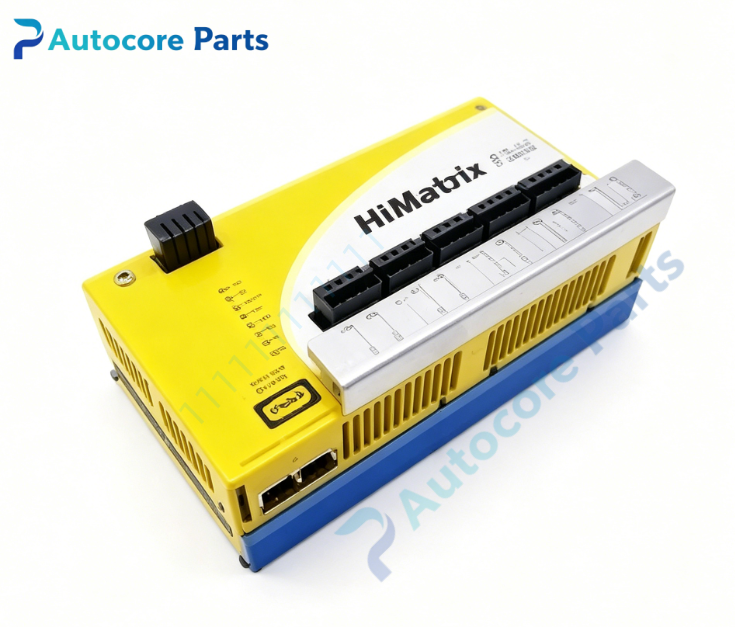

HIMatrix F3 AIO 8/4 01 Analog I/O Module

Technical Specifications

Model:F3AIO8/401

Brand:HIMA(HIMatrix)

Safety certification:SIL3,IEC61508,PL e(Cat.4),TÜV certified

Channel:8 analog inputs,4 analog outputs

Signal type:4-20mA

Diagnosis:Wire break,short circuit monitoring

Communication:SafeEthernet

Mounting:DIN rail installation

Protection class:IP20

Power supply:24V DC

Operating temperature:-20~+70℃

Relative humidity:5~95% non-condensing

Weight:0.48kg

Certification:CE

System compatibility:Matches HIMA HIMatrix safety control system,collects analog signals from transmitters and outputs analog control signals to field positioners,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function:SIL3 safety mixed analog I/O module. Acquires 4-20mA analog process signals from field transmitters,outputs analog safety control commands to valve positioners. Supports continuous wiring fault detection,communicates with safety controller via SafeEthernet.

Installation:Mount on DIN rail inside control cabinet,wire field transmitters and positioners to module terminals,complete hardware configuration via SILworX or ELOPII software.

Interface:

‑8 channels analog input terminals

‑4 channels analog output terminals

‑24V DC power terminal

‑SafeEthernet communication port

‑LED indicators for channel status,fault and communication

Circuit feature:1oo2 dual channel fail-safe safety architecture,continuous hardware self-test,high anti-interference capability,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature:HIMatrix compact SIL3 mixed analog I/O module F3AIO8/401. Common faults:input/output channel drift,circuit burnout,ethernet communication failure.Confirm system firmware before replacement.

Diagnostic:Module or wiring fault triggers channel fault alarm;controller marks analog signal invalid and executes corresponding safety interlock logic.

Built‑in function

F3AIO8/401 collects process analog signals and outputs safety analog control signals for SIS safety instrumented system,widely used for chemical and power plant safety spare replacement.

Product Brief

F3AIO8/401 belongs to HIMatrix compact safety I/O family,DIN rail mounted SIL3 mixed analog I/O module with SafeEthernet interface. Verify system firmware compatibility before ordering. Test analog channel and line diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
