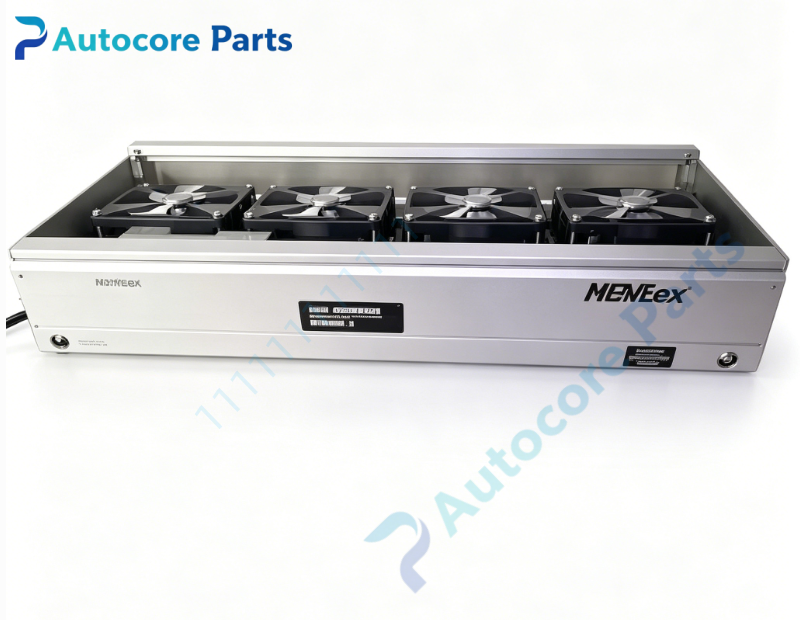

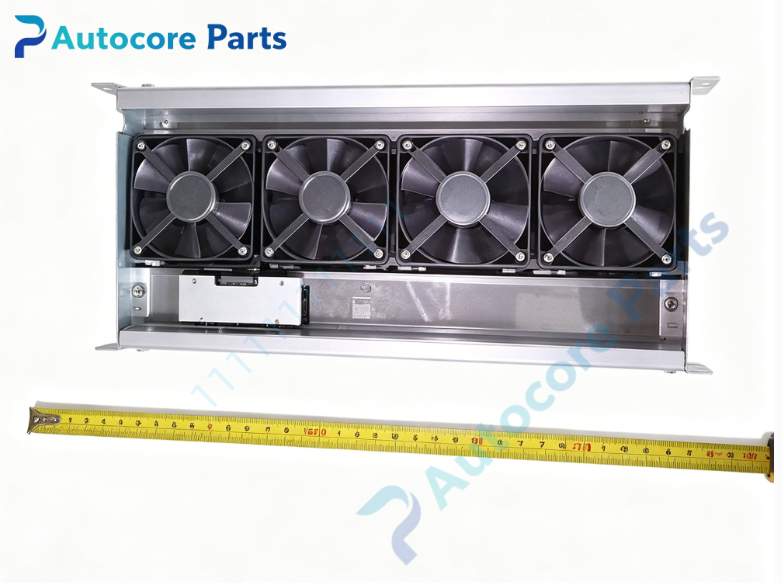

HIMatrix X-FAN18 03 993201813 Rack Fan Module

Technical Specifications

Model:X-FAN18 03,Part No:993201813

Brand:HIMA(HIMatrix)

Power supply:24V DC

Function:Rack forced cooling

Diagnosis:Fan speed monitoring,fault alarm output

Mounting:Plug-in rack installation

Protection:Overheat detection

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.72kg

Certification:CE

System compatibility:Matches HIMA HIMax rack system,cools CPU,communication and I/O modules,for petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function:Rack cooling fan module,delivers continuous airflow to dissipate heat for all plug-in modules in HIMax rack.Monitors fan rotation speed in real time,trigger alarm once fan stall or speed abnormal.

Installation:Plug into dedicated fan slot of HIMax rack,connect 24V DC power terminal.

Interface:

‑24V DC power terminal

‑Fault signal output terminal

‑LED indicator for running and fault status

Circuit feature:Built-in speed detection circuit,continuous self-monitoring,anti-interference design,suitable for industrial harsh environment.

Feature:HIMax rack dedicated fan module X-FAN18 03,part number 993201813. Common faults:fan stuck,blade damage,speed detection circuit failure.Confirm HIMax rack version before replacement.

Diagnostic:Module fault triggers fan failure alarm,rack overheat risk,system may trigger protection alarm.

Built‑in function

X-FAN18 03 993201813 provides cooling for HIMax SIS safety rack,widely used for chemical and power plant safety spare replacement.

Product Brief

X-FAN18 03 993201813 belongs to HIMax rack cooling fan family,plug-in fan assembly with speed diagnostic. Verify rack compatibility before ordering. Check fan rotation and fault alarm function during commissioning. ESD anti‑static protection shall be followed during installation.
