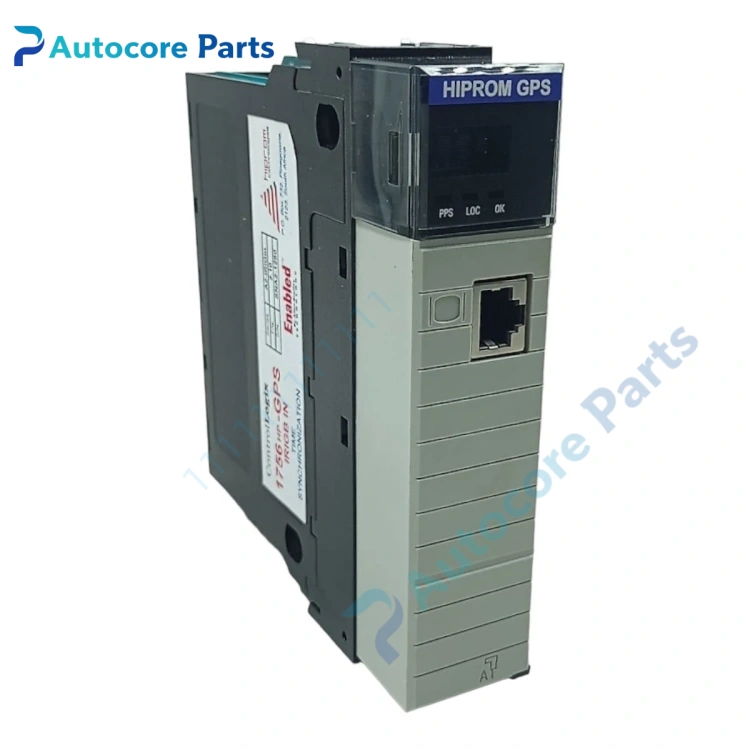

Hiprom 1756HP-GPS GPS Synchronization Module

Feature & Principle

It is a Hiprom developed GNSS time synchronization module for Allen‑Bradley ControlLogix 1756 chassis. It receives L1-band GPS satellite signal, parses NMEA 0183 data, outputs high-precision UTC time to backplane CST clock. It provides time stamp for sequence of events (SOE), also outputs latitude, longitude and altitude positioning data. It supports distributed power SCADA, pipeline and power plant multi-controller time alignment.

Specifications

Model: 1756HP-GPS Brand: Hiprom (Rockwell Encompass partner) Platform: ControlLogix 1756 chassis GNSS band: L1 Time accuracy: Microsecond level Antenna interface: SMA Operating temperature: -40 ~ +85℃ Application: Power grid, SCADA, pipeline, power plant SOE recording Certification: CE

Components & Diagnostics

GNSS receiving chip, backplane interface circuit, SMA antenna port, status LED. Common faults: no satellite lock, time drift, antenna cable damage, backplane communication failure.

Product Brief

1756HP-GPS GPS sync module, Hiprom ControlLogix high-precision time reference spare widely used for power SCADA cabinet overhaul and replacement.
