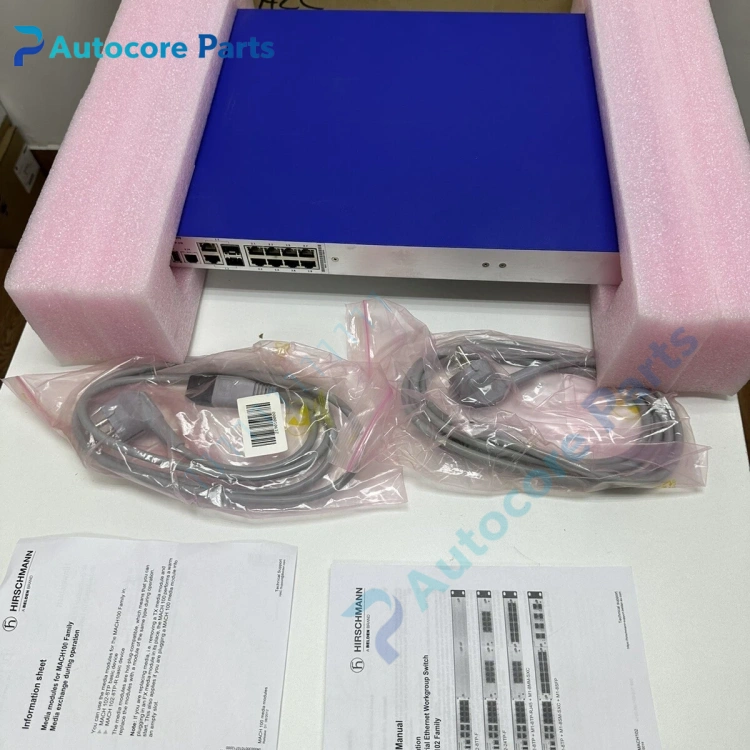

Hirschmann MACH102-24TP-FR Industrial Switch Unit

Feature & Principle

This managed industrial switch receives and forwards Ethernet data frames, supports ring redundancy protocol, VLAN, QoS and network diagnosis functions. It ensures stable and reliable communication between PLC, drives and field instruments under harsh industrial environment.

Specifications

Model: MACH102-24TP-FR Brand: Hirschmann (Belden) Series: MACH102 Port: 24 × 10/100BASE-TX Management: Managed Redundancy: HIPER-Ring Power supply: 24VDC Mounting: DIN rail Protection: IP30 Certification: CE

Components & Diagnostics

Switch mainboard, Ethernet PHY chip, status LED, power terminal, relay alarm contact. Common faults: port no link, ring network breakdown, power failure, port chip damage.

Product Brief

MACH102-24TP-FR industrial Ethernet switch, Hirschmann network spare widely used for DCS, PLC and factory automation communication network.
