Honeywell 51196483100 Controller Module

Technical Specifications

Model:51196483100

Brand:Honeywell

Product type:FSC safety main controller module

System series:FSC Fail Safe Controller SIS

Bus type:Parallel backplane system bus

Compatible modules:FSC I/O modules,backplane,redundant power supply boards

Redundancy:Supports DMR dual modular redundant / QMR quadruple modular redundant configuration

Power bus:5V DC,24V DC power supply

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:3.94kg

Certification:CE,TÜV,SIL3

System compatibility

This core processing unit is built for Honeywell FSC safety instrumented system,installed in FSC rack cabinet. It runs user-defined safety logic programs, processes all I/O channel data, and communicates with upper-level Experion PKS DCS. Widely deployed in oil & gas, petrochemical and chemical plants for ESD emergency shutdown, burner management and fire & gas protection.

Function

51196483100 serves as the core brain of FSC safety system. It executes safety interlock logic, scans all connected I/O channels, performs hardware self-testing, and exchanges real-time data with HMI workstation. It continuously monitors the health status of the whole safety rack.

Installation

Mount vertically into dedicated controller slots on FSC rack backplane. Complete backplane wiring, set redundant pairing, download safety logic program via Honeywell FSC engineering software.

Interface

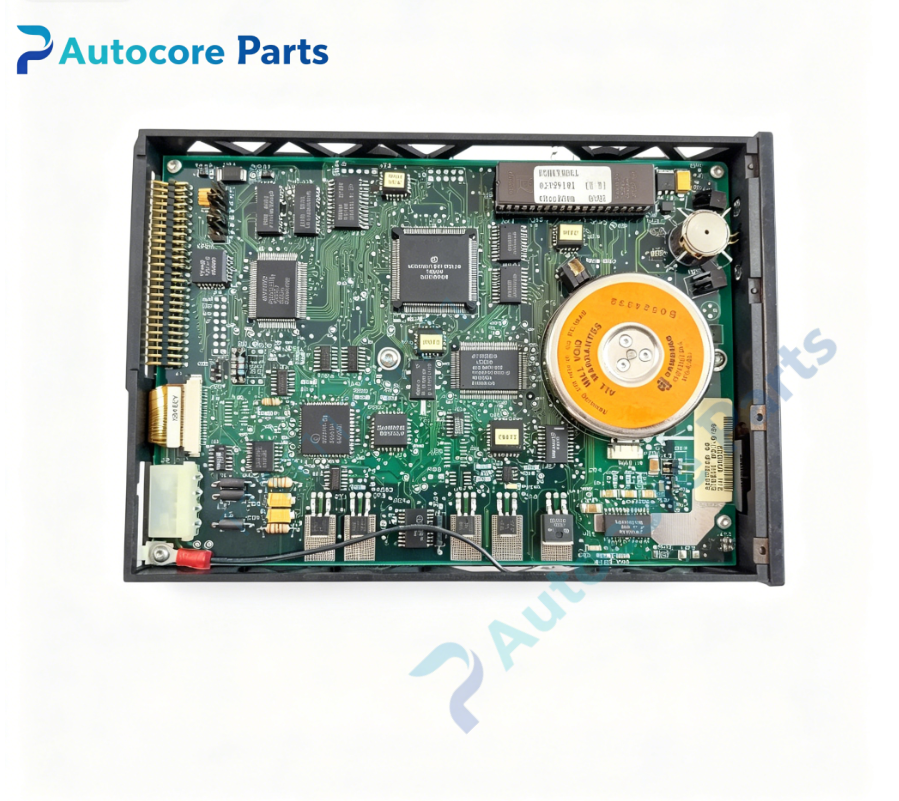

‑Gold finger connector for backplane bus communication

‑Status and diagnostic LED indicators

‑Internal high-speed data bus traces

‑Service port for program download and troubleshooting

Circuit feature

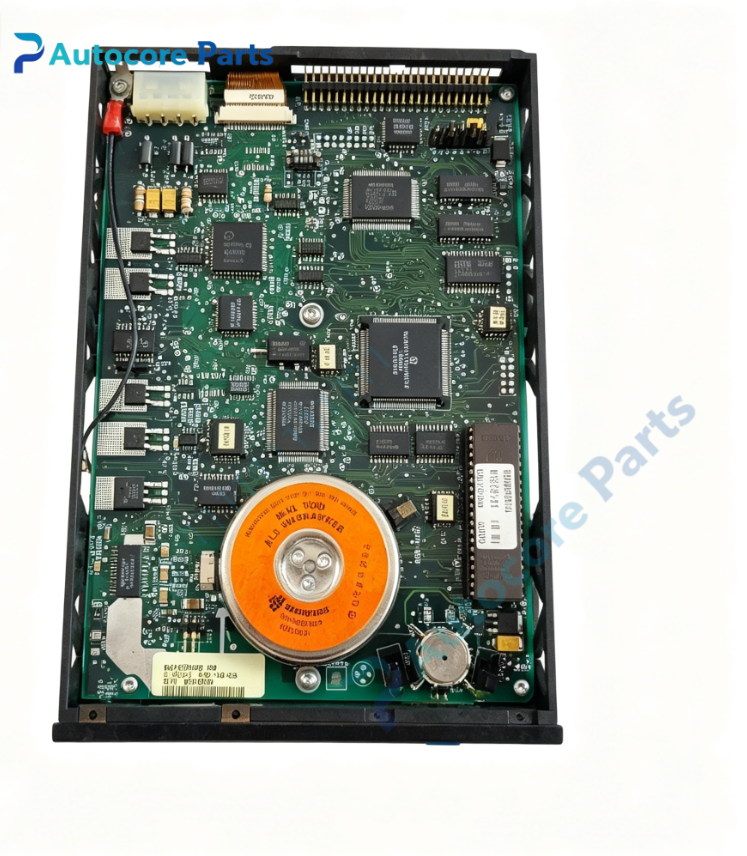

Multi-layer PCB with conformal coating, robust anti-electromagnetic interference design. Built-in periodic self-test circuit, detects internal hardware faults automatically, meets SIL3 safety integrity requirements.

Feature

51196483100 is the core controller spare of Honeywell FSC SIS series. Common faults include chip aging, gold finger corrosion and firmware running exception. Verify rack slot and firmware version before replacement.

Diagnostic

Once internal hardware failure, bus interruption or program abnormality is detected, the module will trigger safety alarm and push fault diagnostic logs to the safety monitoring workstation.

Built‑in function

Safety logic operation, I/O data scanning and system health management for FSC safety rack, used as SIS main controller spare replacement.

Product Brief

51196483100 is Honeywell FSC SIL3 safety main controller module, supporting DMR/QMR redundant setup. Confirm rack compatibility before ordering. ESD protection must be observed during handling and installation.
