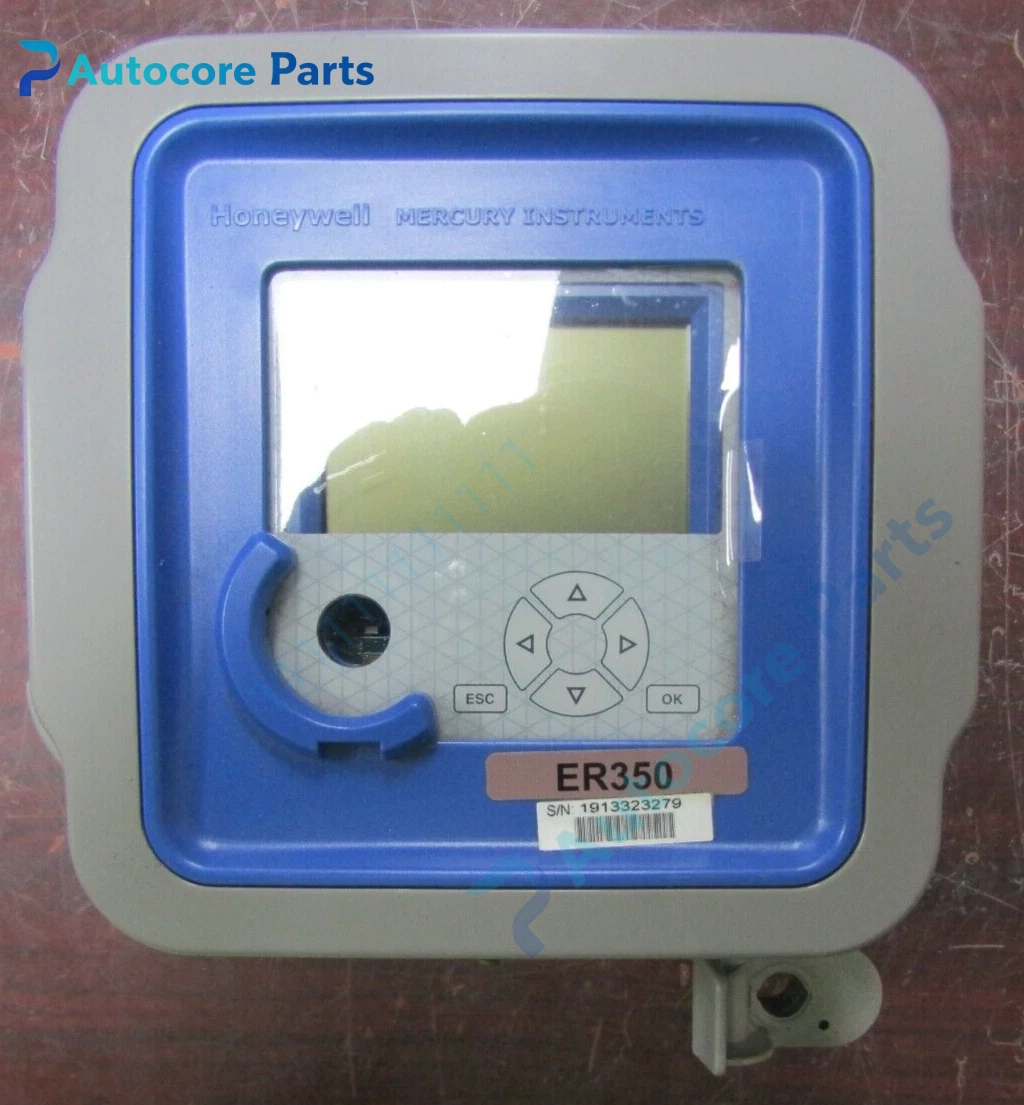

Honeywell ERX350 Pressure Recorder Unit

Module Feature

ERX350 belongs to Honeywell Mercury 350 series, sharing the same hardware platform as EC350 volume corrector. It is a battery-powered electronic pressure recorder dedicated for gas utility distribution network monitoring. It adopts plug-and-play high-precision digital pressure transducer, supports continuous pressure data logging, high-speed event capture for transient pressure surge and configurable pressure high/low alarm. It is equipped with IR local configuration port, optional integrated CloudLink cellular modem for wireless data upload. Long-life lithium battery design reduces site maintenance visits. Supports UMB bracket mounting, meter mount and wall mounting. Widely installed at district regulator stations, pipeline end points and low-pressure monitoring points of natural gas distribution networks.

Working principle

The built-in pressure transducer continuously samples pipeline gas pressure. The internal processor stores pressure readings at user-defined log intervals and monitors for out-of-limit conditions. When pressure exceeds alarm thresholds, the recorder generates event logs and triggers remote alarm transmission via cellular modem. Historical pressure data, audit trail and abnormal event records can be retrieved locally by IR or remotely through telemetry network.

Onboard components

Main processing circuit board, digital pressure transducer, lithium battery pack, IR optical communication module, optional cellular modem, LCD display, local keypad, sealed weatherproof aluminum enclosure, pressure tap fitting.

LED indicators

Power LED, communication LED, alarm status LED.

Hardware self-diagnosis

Battery voltage monitoring, transducer offset self-check, pressure channel fault diagnosis, cellular communication link detection, memory integrity verification.

Programming software

Honeywell MasterLink configuration software, used for logging interval setup, alarm threshold configuration, data retrieval and firmware upgrade.

Electrical & Process Parameters

Model:ERX350 Brand:Honeywell Device type:Electronic Pressure Recorder Power supply:Internal lithium battery Input:Pressure signal Communication:IR, optional CloudLink 4G/5G cellular modem Function:Pressure logging, transient surge capture, alarm transmission

Mechanical & Structure

Mounting:UMB / rotary meter / wall mount Protection class:Outdoor weatherproof Housing:Sealed aluminum enclosure

Environmental

Operating temperature:-40℃ ~ +65℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:UL,FM,CE compliant Status: Honeywell original gas pipeline pressure monitoring recorder

Installation

Cut off pipeline pressure connection safely before operation. Fix Honeywell ERX350 on matched mounting bracket. Connect pressure tap port to gas pipeline isolation valve. Configure logging rate and alarm setpoints, verify pressure reading and wireless upload function before commissioning.

Interface

Pressure tap port, IR optical configuration port, cellular antenna port, battery compartment.

Diagnostic

Low battery alert: schedule battery replacement. Pressure reading zero or frozen: transducer damage or blockage at pressure impulse line. Remote transmission failure: weak cellular signal or modem fault.

Product Brief

Honeywell ERX350 battery-operated gas pressure recorder, high accuracy pressure logging and surge alarm, for natural gas distribution regulator and pipeline end-point pressure monitoring.
