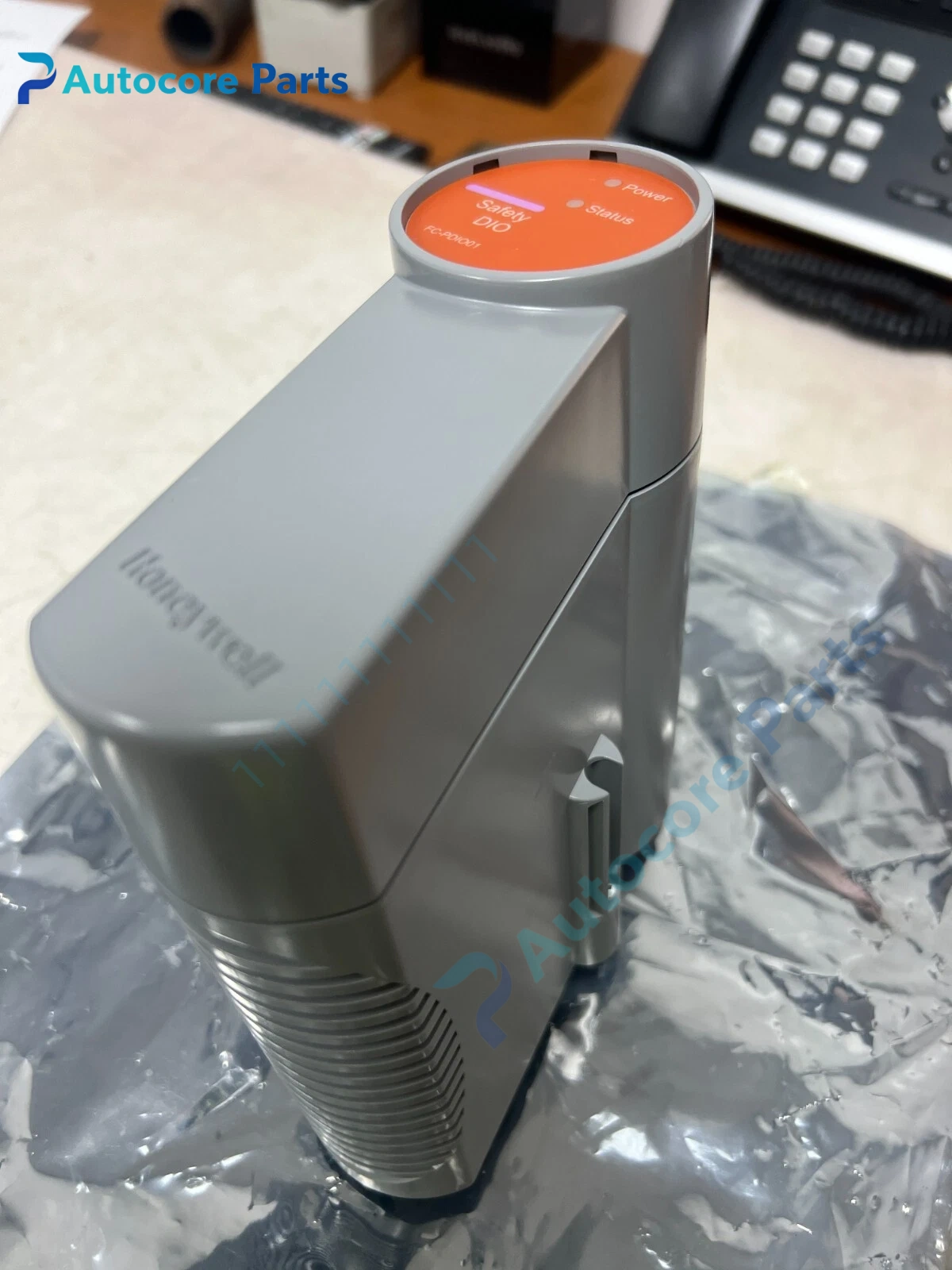

Honeywell FC-PDIO01 Safety DIO Module Unit

Module Feature

FC-PDIO01 belongs to Honeywell Safety Manager SC safety instrumented system series. It is a TÜV certified SIL3 grade rack-mounted digital I/O module. The 32 channels can be individually configured as digital input or digital output. It adopts safety-oriented QMR fault-tolerant circuit design, supports hot swap without system shutdown. Built-in channel diagnostic and fault voting mechanism, suitable for safety shutdown system, emergency trip circuit and critical safety interlock control. It communicates with safety controller through proprietary safety backplane bus. Widely used in oil & gas, petrochemical and refining SIS cabinets.

Working principle

The module exchanges safety signal data with the Safety Manager SC controller via backplane bus. For input channels, it samples 24VDC discrete signals from field emergency stop switches, limit switches and safety contact feedback. For output channels, it receives safety logic commands and drives field solenoid valves and trip relays. Every channel carries out continuous fault detection, and fault information is sent to the safety controller for safety voting.

Onboard components

Safety processing chip group, optical isolation circuit, channel condition detection circuit, backplane safety bus interface, status LED array, 24VDC power regulation circuit, fault voting logic circuit.

LED indicators

Power LED, Run LED, Fault LED, individual channel status LED.

Hardware self-diagnosis

Power supply monitoring, backplane communication diagnosis, channel open/short circuit detection, internal logic self-test, cross-channel comparison check, records safety fault events.

Programming software

Honeywell Safety Builder configuration software, used for channel I/O type definition, safety logic programming, SIL verification and module health monitoring.

Electrical & Process Parameters

Model:FC-PDIO01 Brand:Honeywell Device type:Safety Digital I/O Module Power supply:24VDC Channels:32 configurable DI/DO Safety rating:SIL3 certified Communication:Honeywell safety backplane bus Protection:Channel short-circuit, reverse polarity protection

Mechanical & Structure

Mounting:Rack slot mount for Safety Manager SC I/O chassis Protection class:IP20 Housing:Plastic industrial safety module enclosure

Environmental

Operating temperature:0℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:TÜV, CE, UL compliant Status: Honeywell original Safety Manager SC safety I/O module

Installation

Cut off safety chassis power before operation. Insert Honeywell FC-PDIO01 module into matched backplane slot and lock the latch. Wire field safety discrete signals to termination assembly. Download safety configuration, perform channel test and fault injection test before commissioning.

Interface

Safety backplane bus connector, 24VDC power terminals, field discrete signal terminals.

Diagnostic

Module fault alarm: backplane contact failure or internal safety circuit fault. Channel stuck state: field wiring short/open or channel circuit damage. Communication loss: backplane bus fault or safety controller synchronization lost.

Product Brief

Honeywell FC-PDIO01 Safety Manager SC SIL3 32-channel configurable digital I/O module, hot-swappable safety discrete card for SIS and ESD safety interlock system.
