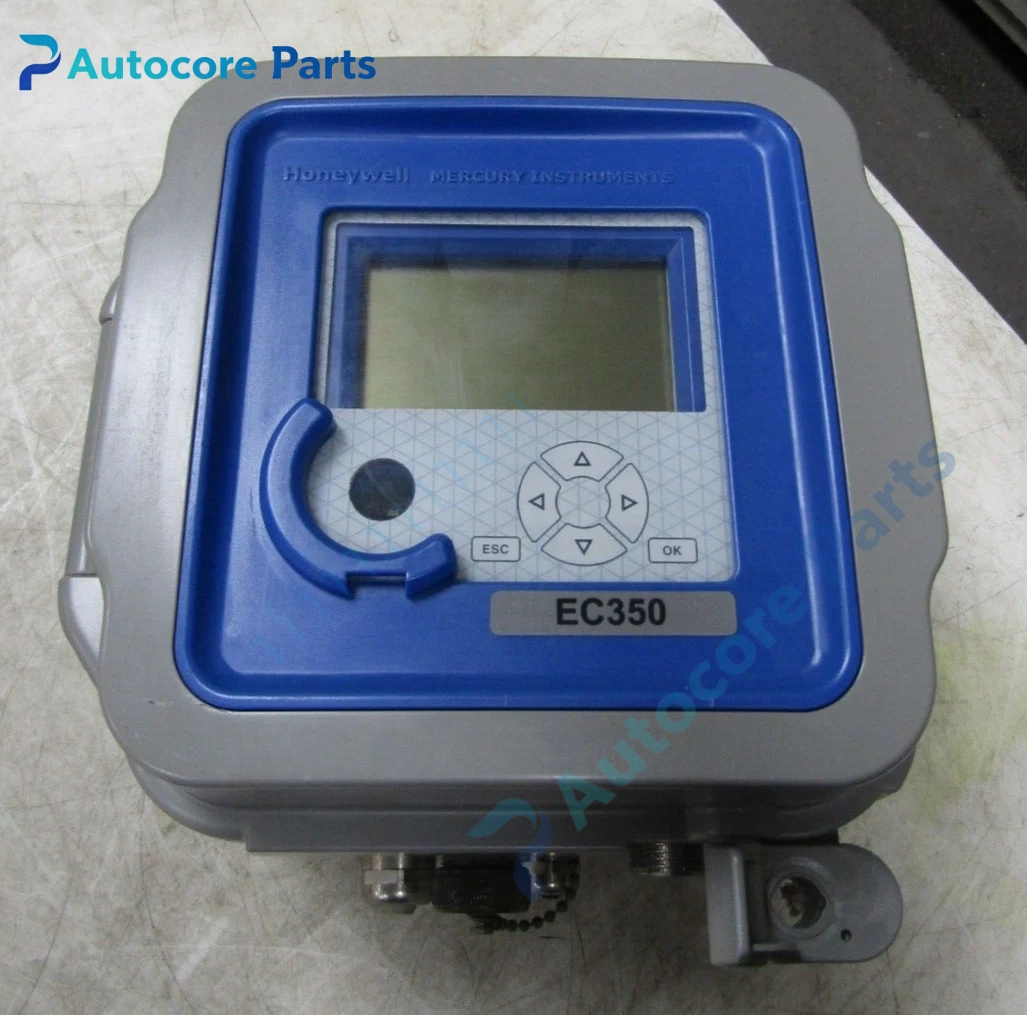

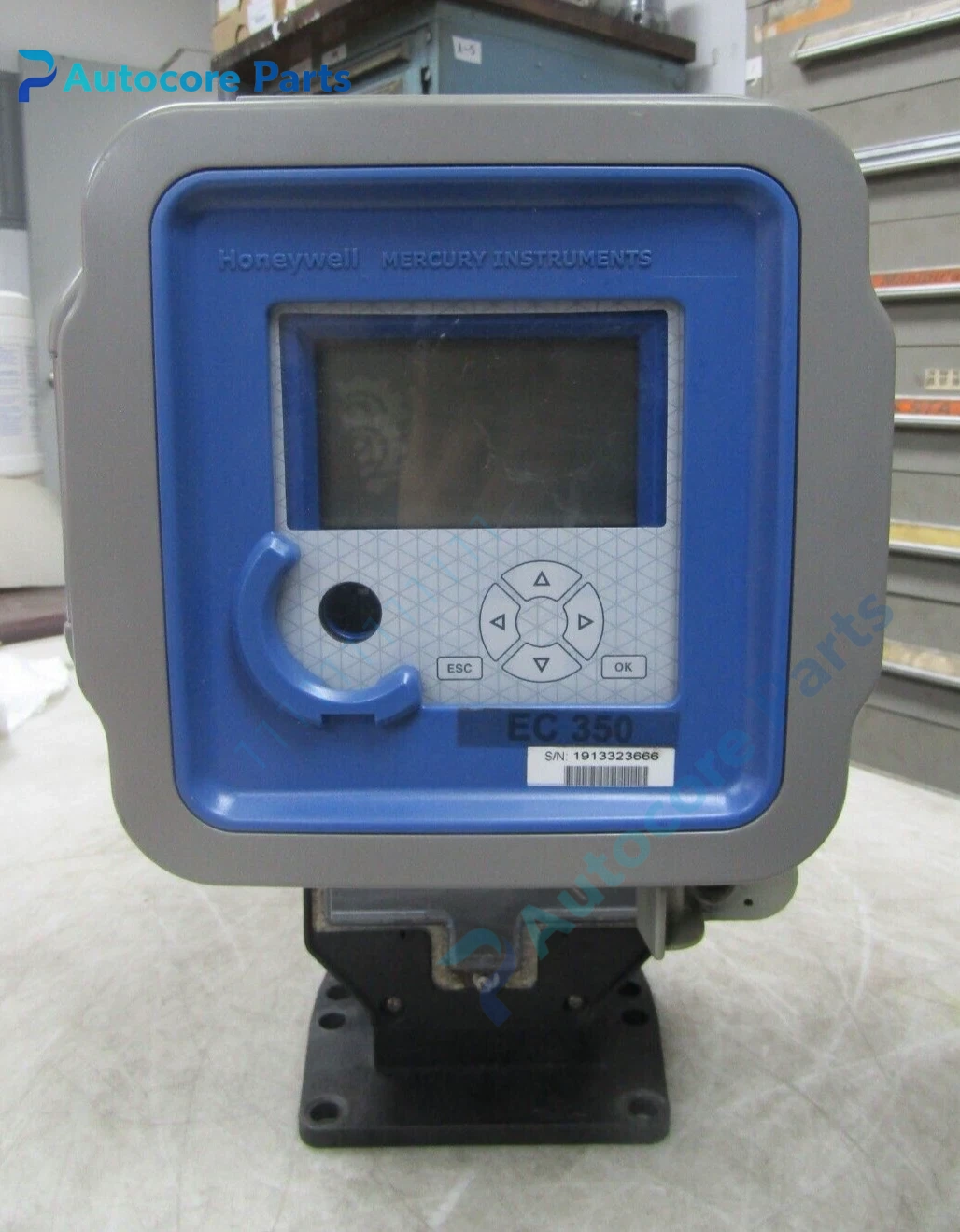

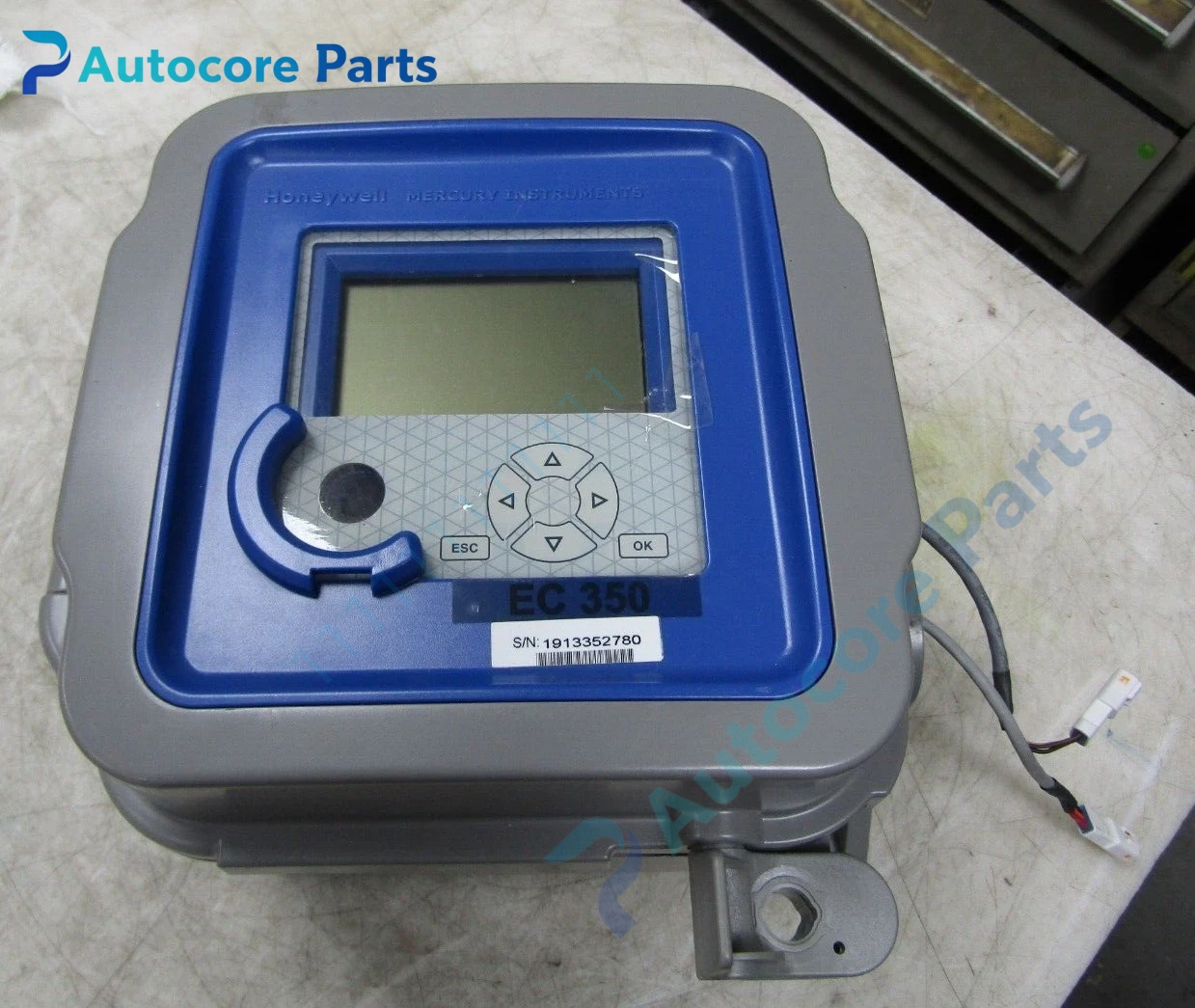

Honeywell EC350 Volume Corrector Unit

Module Feature

EC350 is Honeywell Mercury Instruments gas electronic volume corrector, successor platform of Mini-Max and Mini-AT series. It calculates compensated gas volume based on pulse input from gas meter, pressure and temperature measurement. Built-in high precision pressure transducer, supports reverse flow detection, audit trail recording and firmware remote upgrade. Equipped with IR local configuration port, optional integrated cellular modem for telemetry data upload. Supports UMB bracket mounting, rotary meter mounting and wall mounting. Low power battery design, up to 10 years service life. Widely used in natural gas distribution station, industrial gas metering point for trade transfer measurement.

Working principle

The corrector receives pulse signal from flow meter, collects real-time gas pressure and temperature. Internal CPU calculates gas compression factor and converts operating condition volume into standard reference volume. It stores historical flow data, alarm events and audit logs, sends measurement data to host system via cellular or serial communication. It triggers alarm when pressure, temperature or flow status goes abnormal.

Onboard components

Main processing board, built-in digital pressure sensor, temperature sensing circuit, pulse input opto-isolation circuit, battery pack, IR communication module, cellular modem option, LCD display, local keypad, sealed aluminum enclosure.

LED indicators

Power LED, communication LED, alarm status LED.

Hardware self-diagnosis

Battery voltage monitoring, sensor offset check, pulse input fault diagnosis, communication link detection, memory integrity self-test.

Programming software

Honeywell MasterLink configuration software, used for meter factor setup, gas parameter configuration, data retrieval and firmware update.

Electrical & Process Parameters

Model:EC350 Brand:Honeywell Device type:PTZ Gas Volume Corrector Power supply:Internal lithium battery Input:Meter pulse, pressure, temperature Communication:IR, RS485, optional cellular modem Accuracy:Pressure ±0.1% Protection:Reverse flow monitoring, event logging

Mechanical & Structure

Mounting:UMB / rotary meter / wall mount Protection class:Weatherproof field enclosure Housing:Aluminum sealed enclosure

Environmental

Operating temperature:-40℃ ~ +65℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:UL,FM,CE compliant Status: Honeywell original gas custody transfer volume corrector

Installation

Cut off meter and corrector power before operation. Fix Honeywell EC350 onto matched mounting bracket. Wire meter pulse signal, install pressure tap and temperature probe. Set gas composition, meter K-factor and communication parameters, verify pulse counting and volume compensation before commissioning.

Interface

Meter pulse input terminals, pressure tap port, temperature sensor port, IR optical port, cellular antenna port.

Diagnostic

Battery low warning: replace internal lithium battery. Pulse count missing: meter pulse pickup fault or wiring break. Communication offline: cellular signal weak or modem fault.

Product Brief

Honeywell EC350 PTZ gas volume corrector, battery operated, pressure temperature compensated volume calculation, for natural gas custody transfer and industrial gas metering.
