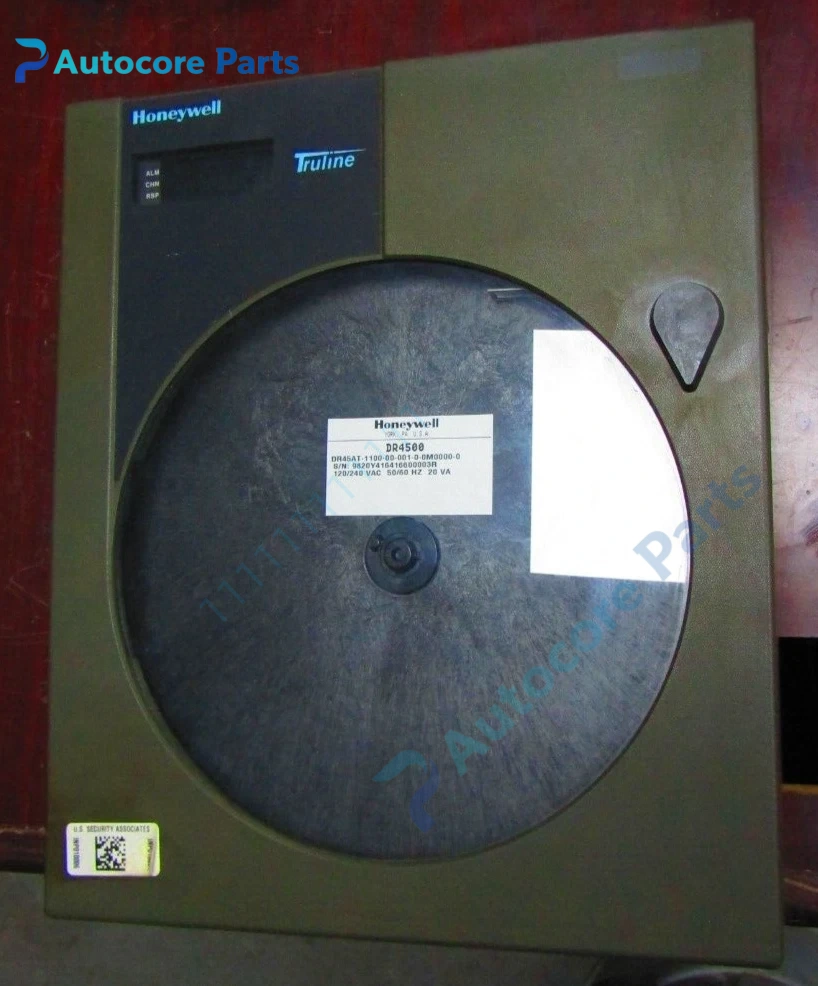

Honeywell DR45AT-1100-00-001-0-0M00000  Circular Chart Recorder Unit

Module Feature

DR45AT-1100-00-001-0-0M00000 belongs to Honeywell DR4500 Truline recorder series. It is a microprocessor-based 12-inch circular thermal chart recorder. It adopts thermal stylus marking on thermal chart paper, supports thermocouple, RTD and 4-20mA analog input signals. It is equipped with local digital display and membrane operation keypad. Panel cutout mounting structure, sealed transparent viewing window, meets traceability requirements for regulated production processes. Widely used in food sterilization, pharmaceutical, heat treatment and boiler monitoring applications.

Working principle

Field process signals enter the signal conditioning circuit. The internal processor converts raw signals into engineering values and drives the thermal stylus to draw continuous trend traces on the rotating circular chart. It compares real-time readings with configured setpoints for alarm judgment. Recorded data can be reviewed locally on the display.

Onboard components

Main control PCB, thermal print head assembly, chart rotation drive motor, signal conditioning circuit, digital display unit, membrane keypad, thermal chart paper holder, power regulation circuit.

LED indicators

Power LED, alarm LED, status indicator LED.

Hardware self-diagnosis

Power supply inspection, thermal head temperature detection, motor drive diagnosis, input open/short circuit fault detection.

Programming software

Honeywell recorder configuration tool, used for input type selection, range calibration and alarm parameter setup.

Electrical & Process Parameters

Model:DR45AT-1100-00-001-0-0M00000 Brand:Honeywell Device type:Circular Chart Recorder Chart size:12 inch Input:Thermocouple, RTD, 4-20mA Function:Process trend recording, local alarm monitoring

Mechanical & Structure

Mounting:Panel cutout mount Protection class:NEMA Type 1 Housing:Metal enclosure with transparent viewing door

Environmental

Operating temperature:0℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:UL,FM,CE compliant Status: Honeywell original DR4500 Truline recorder

Installation

Cut off all power before operation. Install Honeywell DR45AT recorder into matched panel opening and fasten brackets. Wire process signal and power terminals. Load thermal circular chart paper, configure signal range and alarm parameters before commissioning.

Interface

Process signal input terminals, power supply terminals, alarm relay terminals.

Diagnostic

No trace printed: thermal print head failure or chart paper installed incorrectly. Fluctuating reading: loose wiring or field sensor drift. Chart stops rotating: drive motor fault.

Product Brief

Honeywell DR45AT-1100-00-001-0-0M00000 12 inch Truline thermal circular chart recorder, single channel input, for regulated industrial process trend recording.
