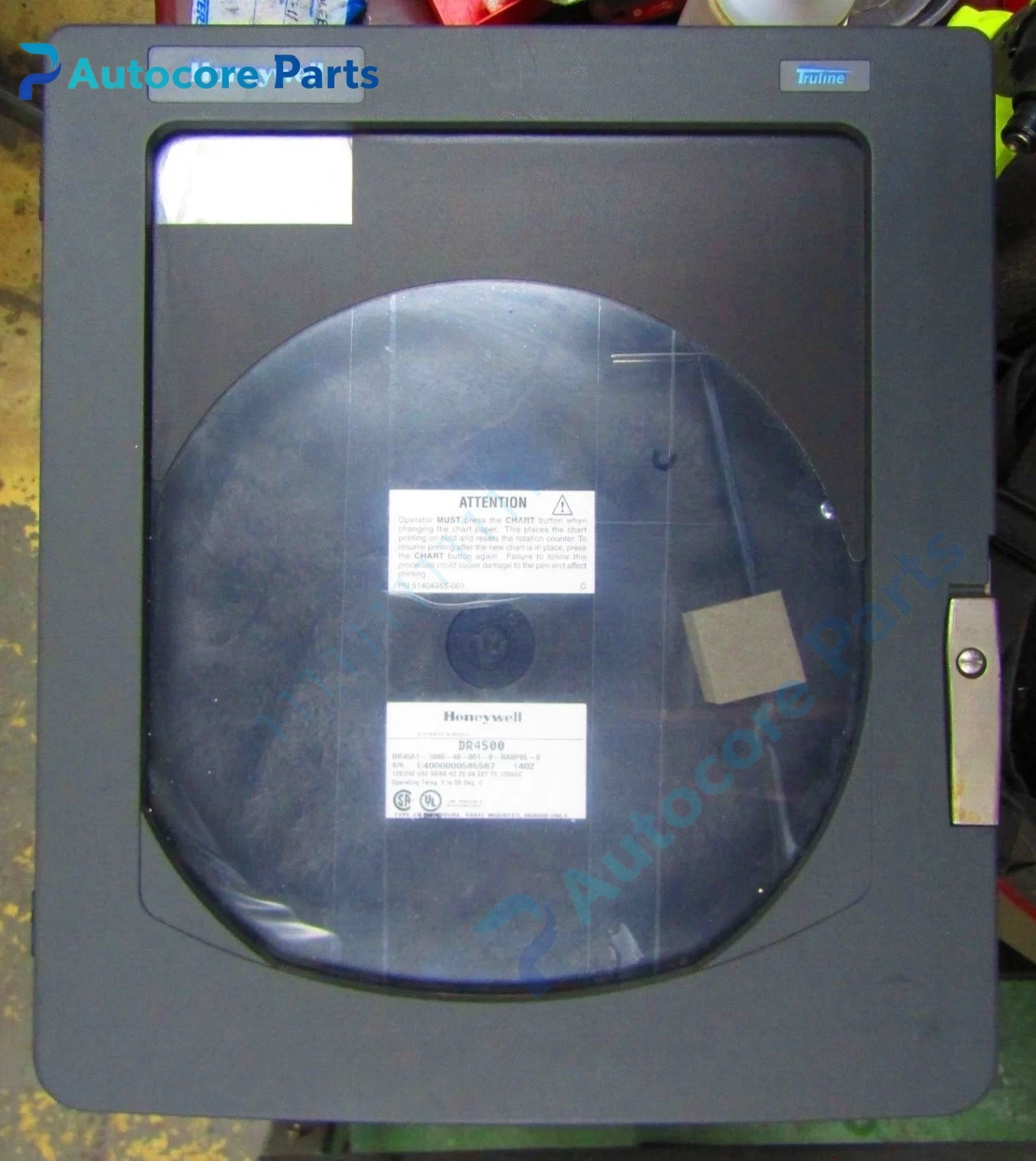

Honeywell DR45AT-1000-40-001-0-RA0P0E-0  Circular Chart Recorder Unit

Module Feature

DR45AT-1000-40-001-0-RA0P0E-0 belongs to Honeywell DR4500 Truline recorder series. It is a microprocessor controlled 12-inch circular thermal chart recorder. It uses thermal stylus marking on thermal chart paper, supports thermocouple, RTD and 4-20mA analog input signals. It is equipped with configurable alarm relays, local digital display, membrane keypad and RS485 Modbus RTU communication. Panel cutout mounting, sealed viewing window, suitable for regulated industries requiring paper record traceability. Widely used in pharmaceutical, food sterilization, heat treatment and boiler process monitoring.

Working principle

Field analog signals are conditioned and converted by internal circuit. The main processor calculates the process value, drives the thermal stylus to draw trend traces on the rotating circular chart. The unit compares real-time value against alarm setpoints and activates relay outputs on fault conditions. It can exchange real-time data and alarm information with upper host system via Modbus bus.

Onboard components

Main control circuit board, thermal print head assembly, chart rotation drive motor, signal conditioning board, alarm relay set, digital display, membrane keypad, RS485 communication circuit, chart paper holder.

LED indicators

Power LED, alarm LED, status indicator LED.

Hardware self-diagnosis

Power supply inspection, thermal head temperature check, motor drive diagnosis, input signal fault detection, communication timeout monitoring.

Programming software

Honeywell recorder configuration tool, used for signal type selection, alarm setup, communication address configuration and parameter backup.

Electrical & Process Parameters

Model:DR45AT-1000-40-001-0-RA0P0E-0 Brand:Honeywell Device type:Circular Chart Recorder Chart size:12 inch Input:Thermocouple, RTD, 4-20mA Communication:RS485 Modbus RTU Function:Trend recording, alarm monitoring

Mechanical & Structure

Mounting:Panel cutout mount Protection class:NEMA Type 1 Housing:Metal enclosure with transparent cover

Environmental

Operating temperature:0℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:UL,FM,CE compliant Status: Honeywell original DR4500 Truline recorder

Installation

Cut off all power before operation. Fit Honeywell DR45AT recorder into matched panel cutout and secure mounting brackets. Wire process input, power and alarm relay terminals. Install thermal circular chart paper, configure input type and alarm parameters before commissioning.

Interface

Process signal input terminals, power terminals, alarm relay terminals, RS485 communication terminals.

Diagnostic

No trace output: thermal print head damage or chart paper misloaded. Communication failure: Modbus address conflict or reversed wiring. Unstable readings: field transmitter drift or loose signal wiring.

Product Brief

Honeywell DR45AT-1000-40-001-0-RA0P0E-0 12 inch Truline thermal circular chart recorder, multi-signal input with alarm and Modbus, for industrial regulated process trend recording.
