Honeywell DR45AT Circular Chart Recorder Unit

Module Feature

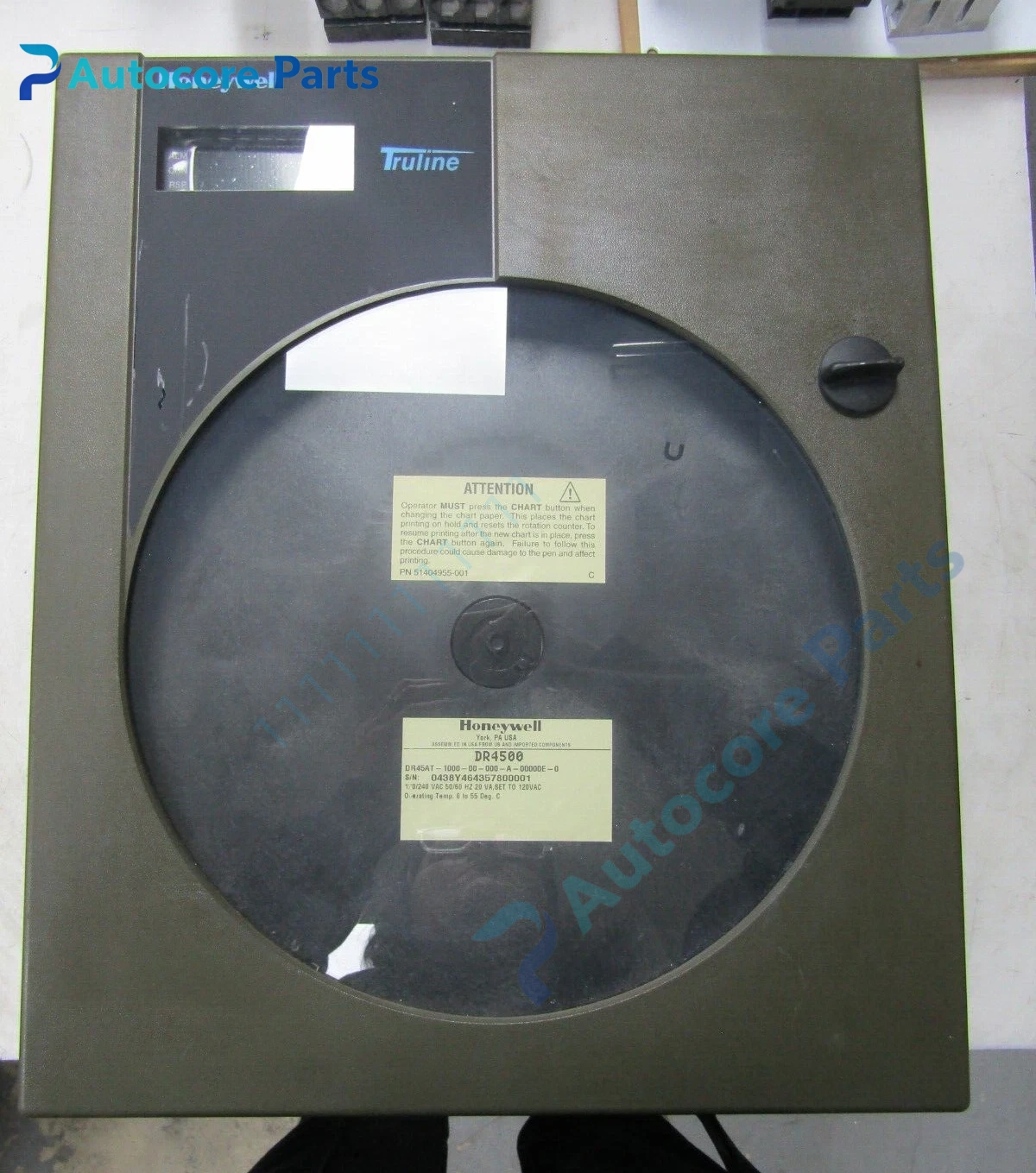

DR45AT-1000-00-000-A-00000E-0 belongs to Honeywell DR4500 Truline recorder series. It is a microprocessor-based 12-inch circular thermal chart recorder. It adopts single hot stylus printing design, can print multiple traces and text information on blank thermal chart paper without pre-printed charts. This unit accepts multiple signal types including 4-20mA, RTD and thermocouple inputs. It has built-in PID control function, configurable alarm relays, password protection and RS485 Modbus communication interface. NEMA4X waterproof enclosure option is available, panel cutout mounting structure. Widely applied in food sterilization, pharmaceutical production, thermal processing and water treatment for compliance process data recording.

Working principle

Field process signals are sent to the recorder input terminal. The internal processor converts the signal value and drives the thermal stylus to draw trend traces on the rotating circular thermal chart. It compares real-time process value with alarm setpoints and triggers relay output when threshold is exceeded. It supports PID output to regulate field control valves. Historical data and alarm events can be uploaded to SCADA host through Modbus bus.

Onboard components

Main control PCB, thermal print stylus assembly, chart rotating drive motor, signal input conditioning circuit, alarm relay group, LED digital display, membrane operation keypad, RS485 communication circuit, thermal chart paper holder.

LED indicators

Power LED, alarm LED, status indicator LED.

Hardware self-diagnosis

Power supply check, print head temperature detection, motor drive diagnosis, input signal fault detection, communication timeout alarm.

Programming software

Honeywell recorder configuration tool, used for input type selection, alarm setpoint setup, PID parameter tuning, communication address configuration.

Electrical & Process Parameters

Model:DR45AT-1000-00-000-A-00000E-0 Brand:Honeywell Device type:Circular Chart Recorder Chart size:12 inch Input:4-20mA, RTD, Thermocouple Communication:RS485 Modbus RTU Function:Trend recording, PID control, alarm relay output

Mechanical & Structure

Mounting:Panel cutout mount Protection class:NEMA Type 1, optional NEMA4X Housing:Metal enclosure with transparent viewing door

Environmental

Operating temperature:0℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:UL,FM,CE compliant Status: Honeywell original DR4500 Truline recorder

Installation

Cut off power supply before operation. Cut matched opening on control panel, install and fix Honeywell DR45AT recorder. Wire process input signal, power and alarm relay terminals. Load thermal circular chart paper, configure signal type, alarm and PID parameters before commissioning.

Interface

Process signal input terminals, power terminals, alarm relay output terminals, RS485 communication terminals.

Diagnostic

No trace printed: print head failure or chart paper installed incorrectly. Recorder cannot communicate: Modbus address conflict or wiring polarity reversed. Frequent alarm triggering: setpoint misadjusted or field transmitter drift.

Product Brief

Honeywell DR45AT-1000-00-000-A-00000E-0 12 inch Truline thermal circular chart recorder, single channel, with PID and alarm relay, used for regulated process trend recording in food and pharmaceutical industries.
