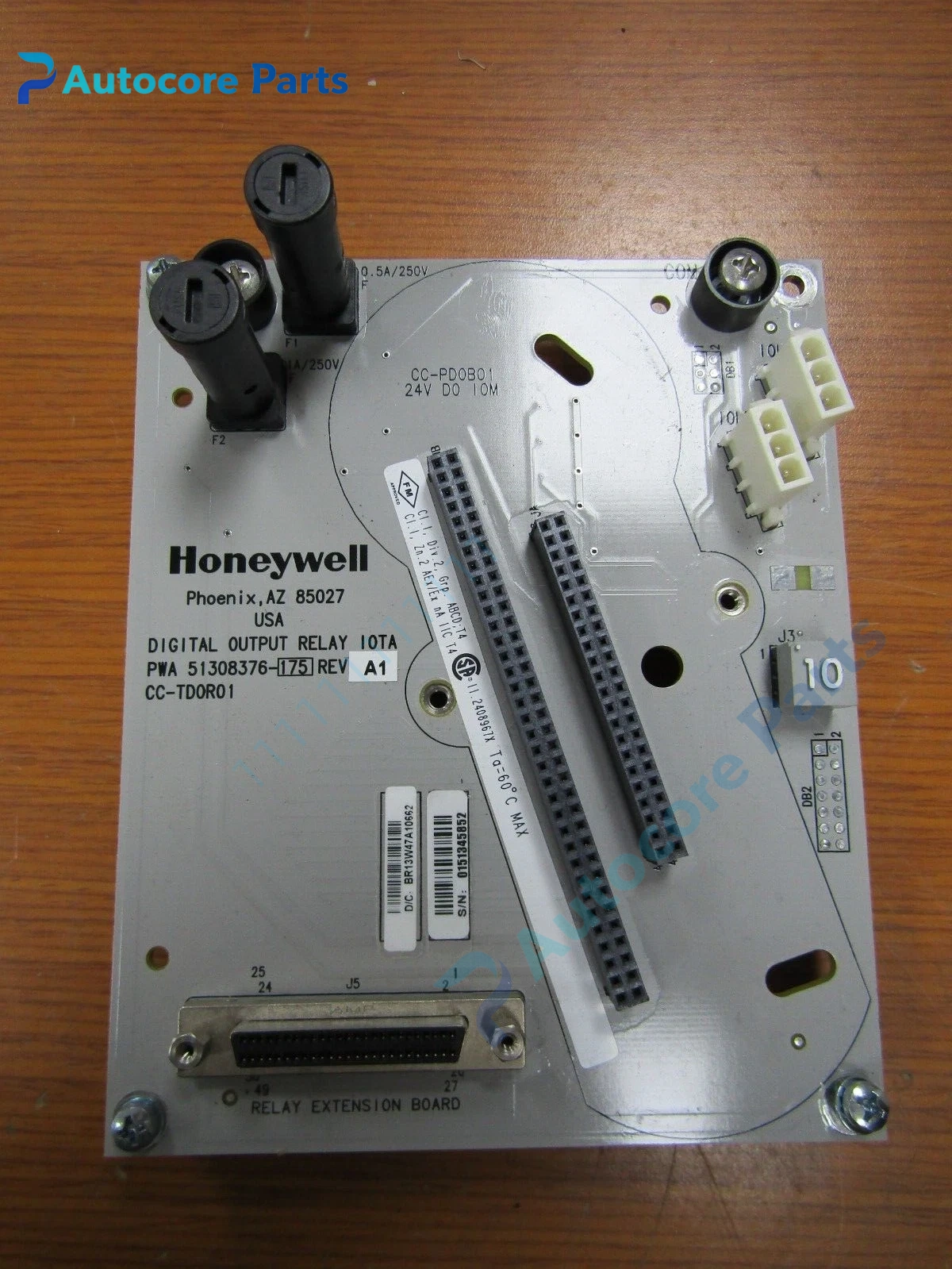

Honeywell CC-TD0R01 Relay Output Module Unit

Module Feature

CC-TD0R01 belongs to Honeywell Experion PKS series I/O modules. It is a rack-mounted discrete relay output card for Honeywell DCS platform. This module provides isolated dry relay contact outputs, receiving control commands from the controller to drive field solenoid valves, motor starters, alarm horns and auxiliary switchgear interlock circuits. Each channel adopts independent relay isolation design, separating DCS control side and field power loop. Built-in channel status monitoring, short-circuit protection and surge suppression circuit. It communicates with the controller through the I/O backplane bus. Widely used in petrochemical, refining and power plant DCS cabinets for safety interlock and sequence control.

Working principle

The controller sends output command through backplane bus. Onboard logic circuit drives corresponding relay coil. The dry contact changes ON/OFF state to switch the field load circuit. Each relay channel has status feedback signal, the module uploads channel state and fault information back to the DCS controller. When abnormal condition is detected, the module reports fault alarm to the control system.

Onboard components

Backplane bus interface chip, control logic circuit, isolated relay groups, surge absorption components, channel status LED array, power regulation circuit, screw terminal assembly.

LED indicators

Power LED, Run LED, Fault LED, individual channel status LED.

Hardware self-diagnosis

Power supply detection, backplane communication diagnosis, relay channel open/short fault detection, records fault flags in DCS system.

Programming software

Honeywell Experion PKS Control Builder, used for channel tag configuration, output logic programming and module health monitoring.

Electrical & Process Parameters

Model:CC-TD0R01 Brand:Honeywell Device type:Relay Digital Output Module Power supply:24VDC Contact type:Dry contact relay Communication:Honeywell I/O backplane bus Protection:Surge suppression, channel overcurrent protection

Mechanical & Structure

Mounting:Rack slot mount for Experion PKS I/O chassis Protection class:IP20 Housing:Plastic industrial module enclosure

Environmental

Operating temperature:0℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: Honeywell original Experion PKS I/O module

Installation

Cut off I/O chassis power before operation. Insert Honeywell CC-TD0R01 module into matched backplane slot and lock the latch. Wire field load circuits to relay contact terminals. Download I/O configuration, test each channel on-off action before power restoration.

Interface

I/O backplane connector, 24VDC power terminals, field relay output screw terminals.

Diagnostic

Module communication loss: poor backplane contact or bus configuration error. Channel fails to act: relay coil burnout or terminal wiring break. Intermittent output: contact oxidation or load surge interference.

Product Brief

Honeywell CC-TD0R01 Experion PKS rack mount relay output module, isolated dry contact outputs, for DCS field discrete device control and safety interlock.
