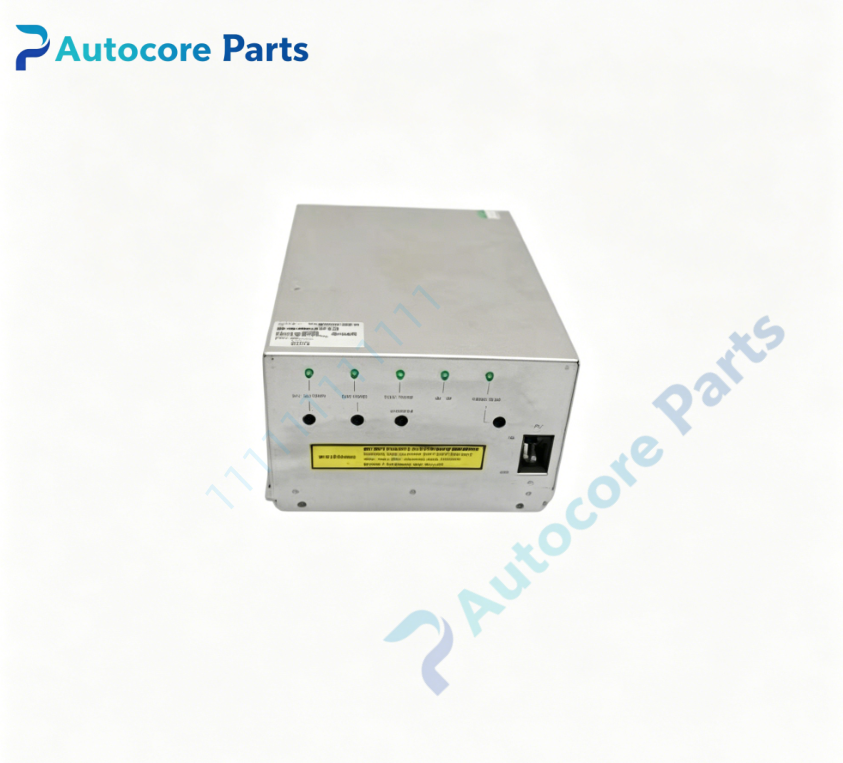

Honeywell 51196654100 Communication Interface Module

Technical Specifications

Model:51196654100

Brand:Honeywell

Product type:FSC communication interface module

System series:FSC Fail Safe Controller SIS

Bus type:Parallel backplane system bus

Compatible modules:FSC main controller, I/O modules, backplane base, redundant power supply units

Redundancy:Supports DMR dual modular redundant / QMR quadruple modular redundant configuration

Power bus:5V DC,24V DC power supply

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:4.06kg

Certification:CE,TÜV,SIL3

System compatibility

This interface card belongs to Honeywell FSC safety instrumented system and is installed inside FSC rack cabinet. It serves as the dedicated communication bridge linking FSC safety controller and Experion PKS DCS. It transmits process variable data, safety alarm events and equipment operational status. Widely used in oil & gas, petrochemical and chemical sites for ESD emergency shutdown and fire & gas safety protection.

Function

51196654100 takes charge of bidirectional data interaction for FSC safety rack. It collects safety logic results and channel diagnostic data from main controller and uploads information to HMI monitoring station. Meanwhile, it receives configuration and query commands from upper host system and forwards instructions to FSC controller. It continuously monitors communication link stability and performs real-time link diagnosis.

Installation

Insert the module vertically into the dedicated communication slot of FSC rack backplane. Complete backplane power wiring, configure communication address and protocol parameters via Honeywell FSC engineering software.

Interface

‑Gold finger connector for backplane bus access

‑External communication port for connection with host monitoring system

‑Internal high-speed signal traces

‑LED indicators for running status and communication fault alert

Circuit feature

Conformal coated multi-layer PCB design with isolated communication circuit to suppress electromagnetic interference. Built-in continuous link self-test function, can quickly detect communication disconnection, fully compliant with SIL3 functional safety standards.

Feature

51196654100 is a spare communication board within Honeywell FSC SIS spare portfolio. Common failures include port circuit burnout, gold finger oxidation and communication timeout. Confirm rack slot definition and firmware compatibility before replacement.

Diagnostic

When communication interruption, signal fluctuation or hardware defect is detected, the module will trigger safety alarm and push detailed fault diagnostic logs to safety workstation.

Built‑in function

Bidirectional cross-platform data transmission and communication link health monitoring for FSC safety rack, used as SIS communication interface spare replacement.

Product Brief

51196654100 is Honeywell FSC SIL3 communication interface module,supporting DMR/QMR redundant architecture. Check rack compatibility before ordering. ESD anti-static protection is mandatory during handling and installation.
