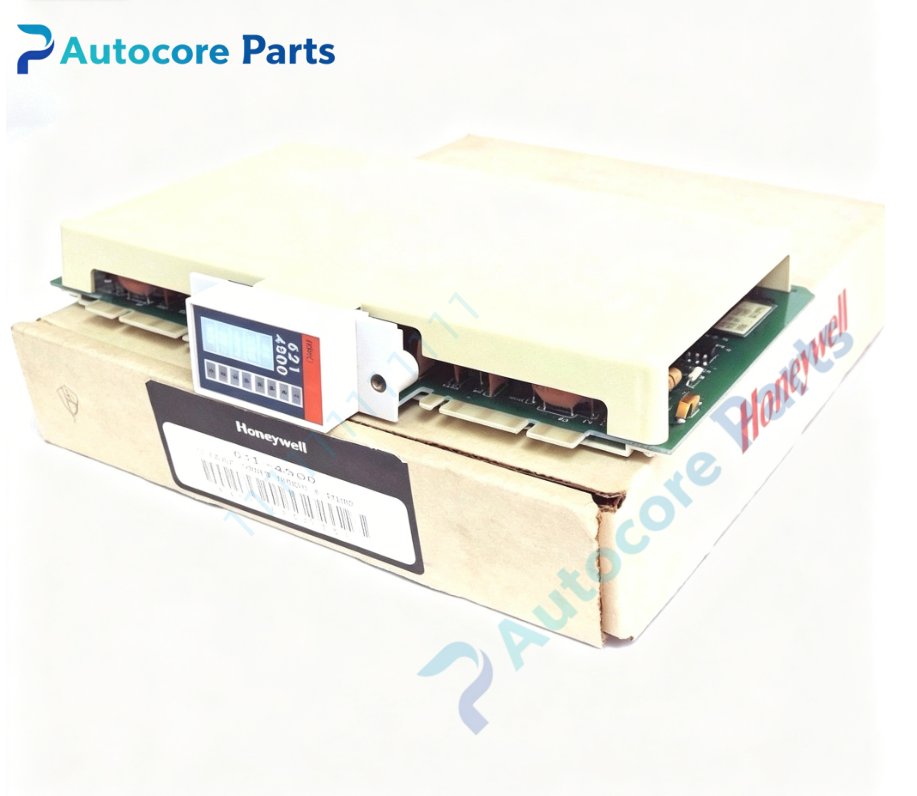

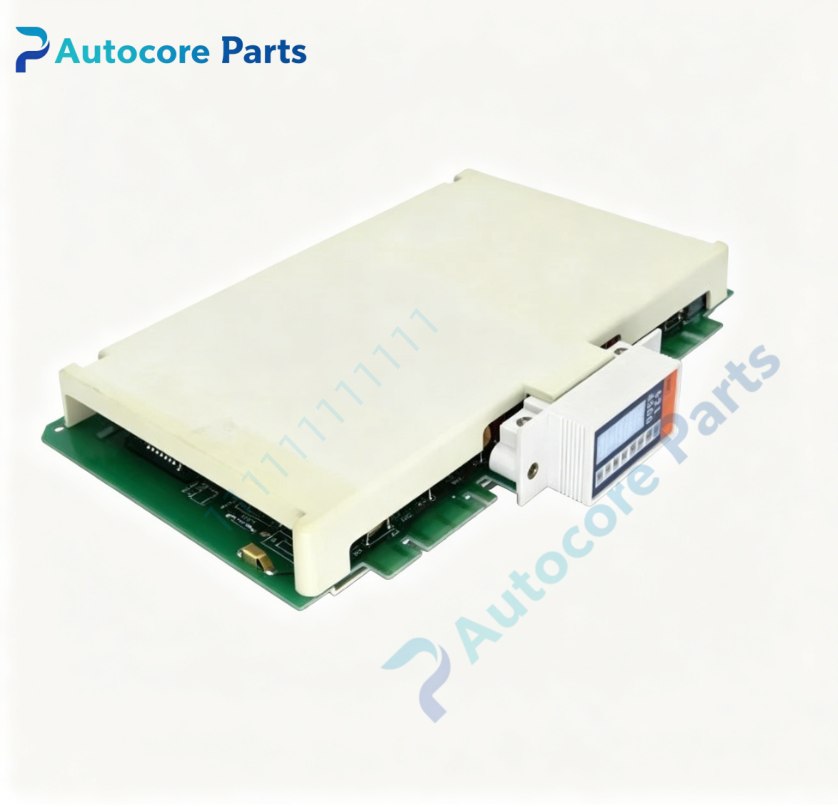

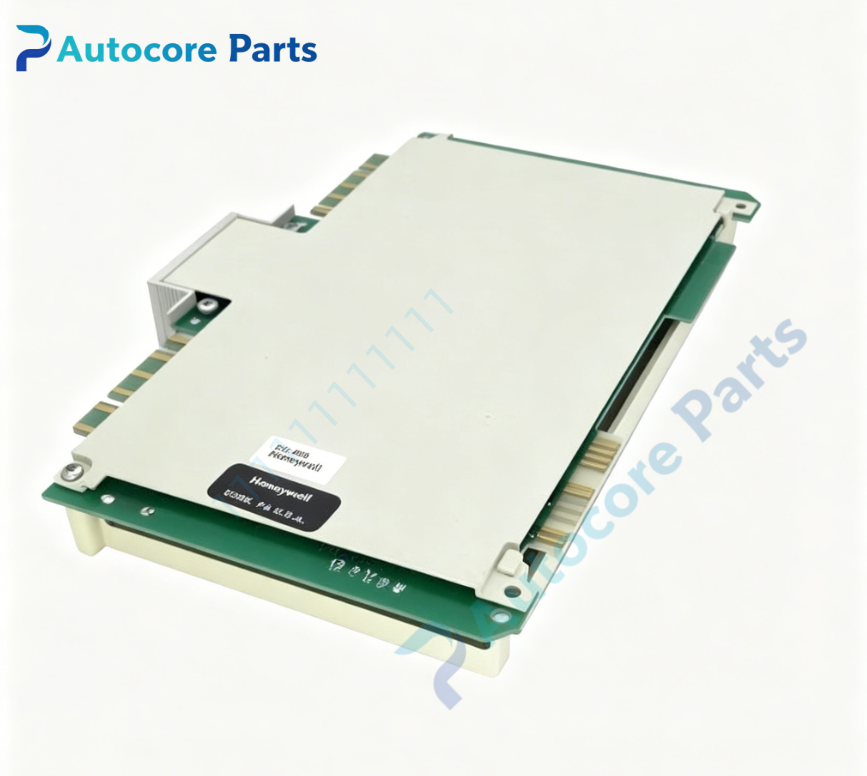

Honeywell 6214500 FSC Rack Backplane Board

Technical Specifications

Model:6214500

Brand:Honeywell

Product type:FSC safety rack backplane board

System series:FSC Fail Safe Controller SIS

Bus type:Parallel system backplane bus

Compatible modules:FSC controller,analog input,digital input,digital output modules

Redundancy:Supports DMR dual modular redundant / QMR quadruple modular redundant architecture

Power bus:5V DC,24V DC power distribution

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:2.38kg

Certification:CE,TÜV

System compatibility

Designed for Honeywell FSC safety instrumented system(SIS),installed inside FSC safety rack.It provides power distribution and backplane bus communication for FSC series safety processor and I/O modules,interconnects with Honeywell Experion PKS DCS,widely used in petrochemical,oil & gas,chemical refining ESD emergency shutdown and fire & gas safety interlock systems.

Function

6214500 is FSC rack backplane bus board.It provides power supply distribution and high-speed parallel backplane data bus for all plug-in modules in the FSC rack.Realizes data exchange between safety controller and I/O modules via onboard bus traces.Supports DMR and QMR redundant safety architecture,ensures reliable signal transmission for safety logic calculation.Each slot is equipped with continuous circuit monitoring function.

Installation

Fixed inside FSC rack chassis,install modules vertically into backplane slots,wire rack power supply to backplane terminals,configure redundancy parameters via Honeywell FSC engineering software.

Interface

‑Module gold finger connectors for each slot

‑Rack power input terminals

‑Internal bus signal traces

‑Status test points

Circuit feature

Multi-layer PCB design,anti-surge protection,stable power distribution,high noise immunity,continuous bus integrity detection,meets SIL3 safety system hardware requirements.

Feature

6214500 belongs to Honeywell FSC SIS rack accessory series.Common faults:gold finger oxidation,PCB trace aging,power circuit damage.Confirm FSC rack and firmware compatibility before replacement.

Diagnostic

Bus communication failure,slot power abnormality or backplane circuit fault triggers alarm and upload diagnostic information to safety workstation.

Built‑in function

Power distribution and backplane bus signal transmission for FSC safety rack,used for SIS safety spare replacement.

Product Brief

6214500 is Honeywell FSC SIL3 safety rack backplane board,supports DMR/QMR redundant configuration.Check FSC rack cabinet compatibility before ordering.ESD anti-static protection required during installation.
