GE DS200DCFBG1BLC DCFB DC Feedback Board

Technical Specifications

Model: DS200DCFBG1BLC

Brand: GE (GE Vernova)

Product Type: DCFB DC Feedback Board

Applicable System: Speedtronic Mark V gas & steam turbine control system

Core Function: Excitation DC current and voltage signal sampling, signal conditioning, noise filtering

Connector: 50‑pin board‑to‑board ribbon connector, configurable jumpers, multiple test points

Circuit Feature: Precision signal conversion, surge suppression, anti‑interference filter network

Indicator: On‑board LED indicators for operation status and fault alarm

Power Supply: Cabinet backplane control power supply

Operating Temperature:‑30℃ ~ +65℃, non‑condensing

Humidity:5%‑95% non‑condensing

Protection Class:IP20, cabinet rack‑mount only

Weight:0.48kg

Dimension:242mm ×191mm ×31mm

Application: Power plant turbine generator excitation control cabinet

Product Function Description

DS200DCFBG1BLC DCFB DC feedback board is an important signal acquisition component for Mark V excitation loop. It collects DC voltage and DC current feedback signals from the generator excitation unit, completes precision conversion and filtering processing, and transmits effective sampling data to the main controller.

Hardware jumpers on the board can adjust sampling range to adapt to different exciter parameters. LED indicators intuitively reflect the running state of the board, which is convenient for on‑site inspection and fault diagnosis. BLC hardware version optimizes the sampling circuit, improves the stability of feedback signal transmission, and provides accurate basis for generator excitation closed‑loop regulation and over‑current protection.

Product Details

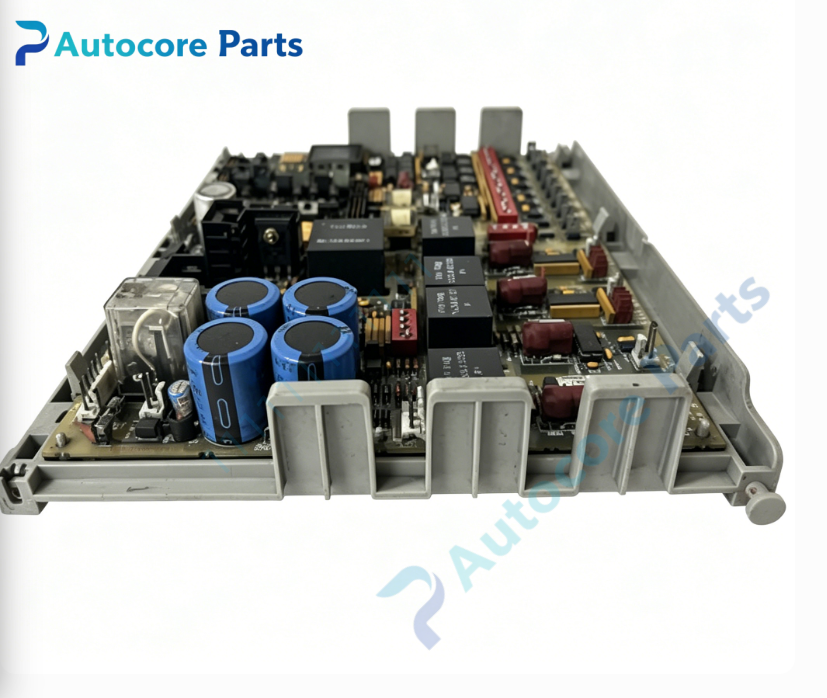

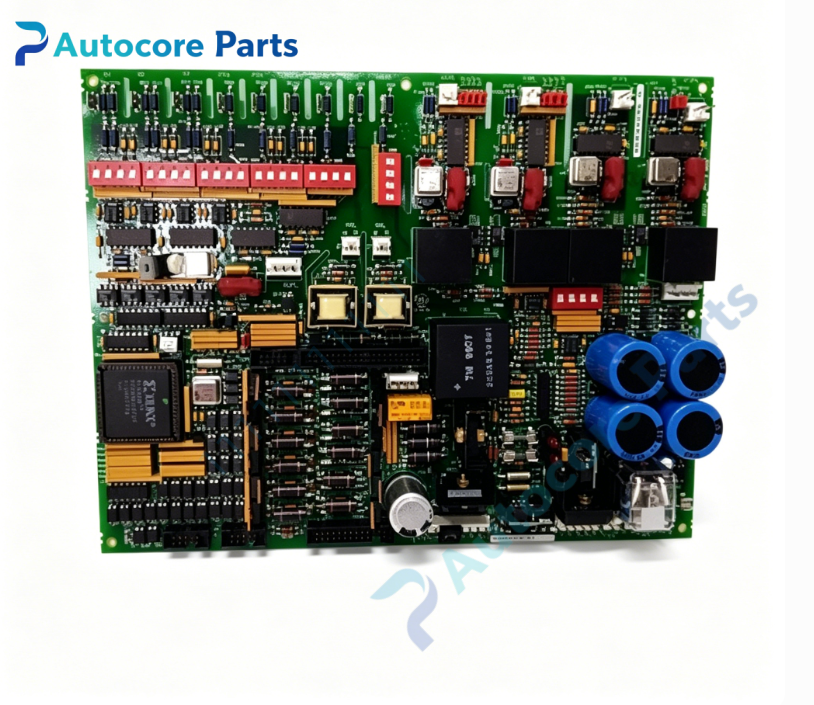

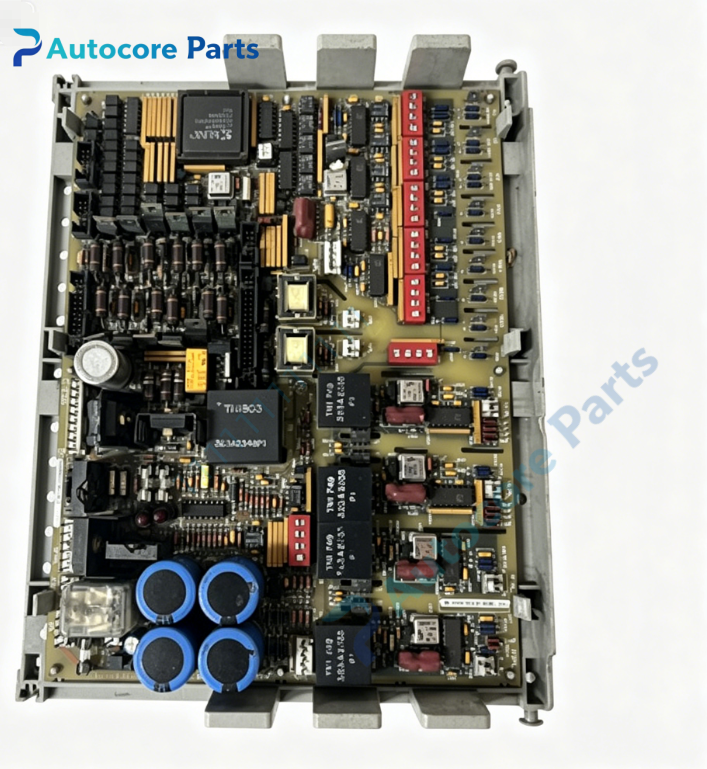

Rack‑mount multilayer PCB plugs directly into Mark V cabinet slot, and needs to cooperate with supporting terminal board. Conformal coated circuit board resists dust, moisture and complex electromagnetic interference in power‑plant environment, meeting the requirement of long‑term continuous operation. The original manufacturer has ended production, and it is mostly used for unit maintenance and spare‑part replacement. ESD protection shall be done during installation, check hardware revision and jumper setting to ensure system compatibility.
