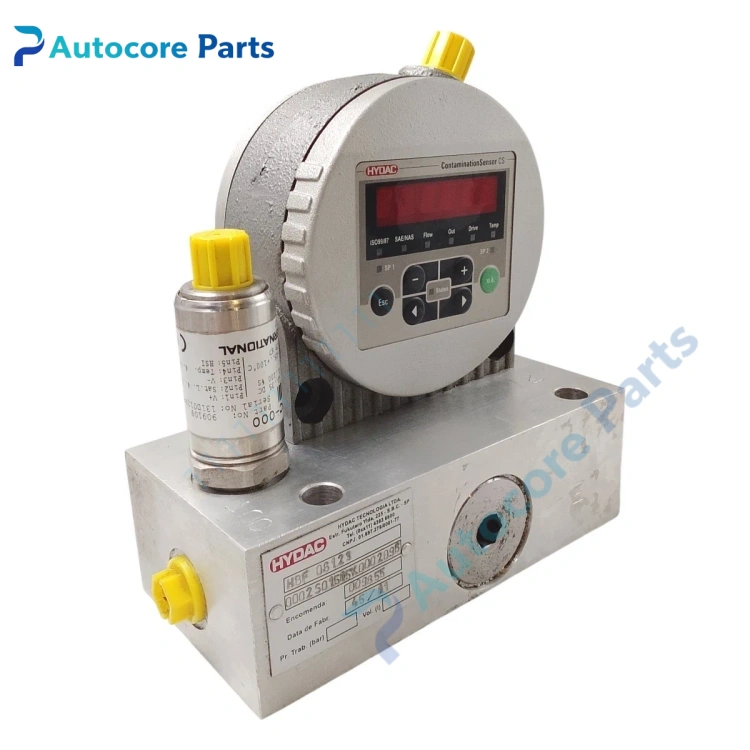

Hydac CS1320 Oil Contamination Monitoring Sensor

Feature & Principle

It is an online oil contamination sensor of Hydac CS1000 series. It uses light extinction counting principle to detect solid particle pollution grade in hydraulic oil and lubricating oil, outputs ISO cleanliness code. It supports 4-20mA analog signal and RS485 digital communication, with local display option. It continuously monitors oil pollution in real time, helps to judge filter failure and oil degradation, widely used for hydraulic station, gearbox and lubrication system condition maintenance.

Specifications

Model: CS1320 Brand: Hydac Series: CS1000 Measuring: Solid particle contamination / ISO cleanliness Power supply: 9~36VDC Output: 4-20mA, RS485 Mounting: Pipe / flange mount Medium: Hydraulic oil, lubricating oil Application: Hydraulic power station, wind turbine gearbox, metallurgy lubrication system Certification: CE

Components & Diagnostics

Optical detection chamber, signal processing board, digital display, M12 connector, housing. Common faults: optical window polluted, signal drift, communication interruption, power supply abnormal.

Product Brief

CS1320 contamination sensor, Hydac online oil monitoring spare widely used for hydraulic and lubrication system overhaul and replacement.
