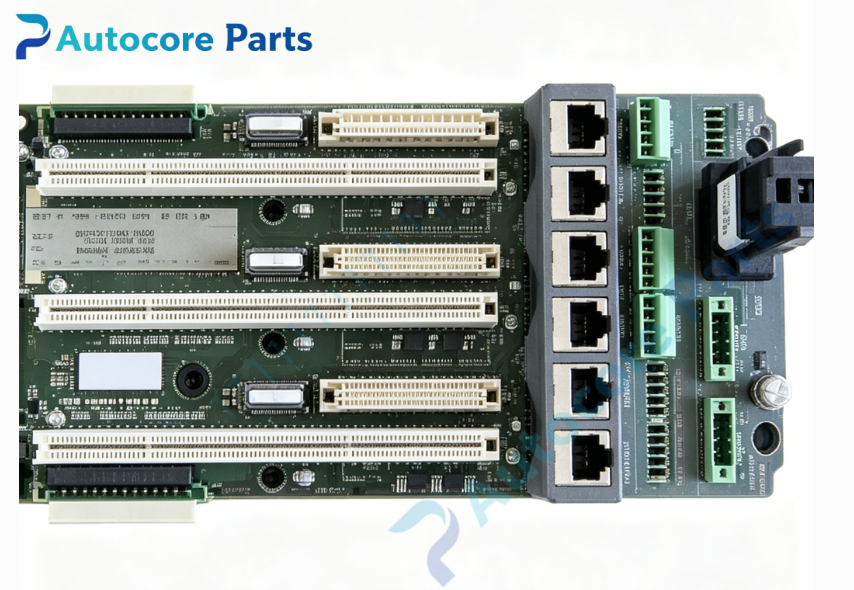

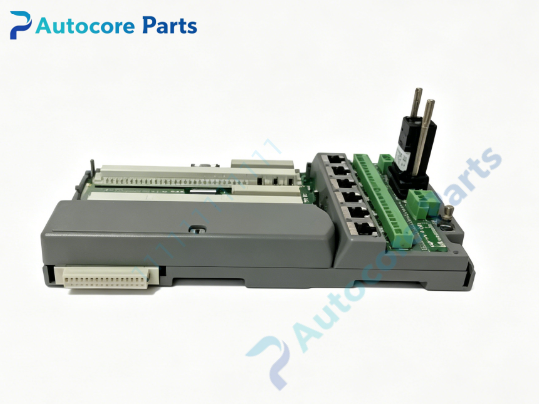

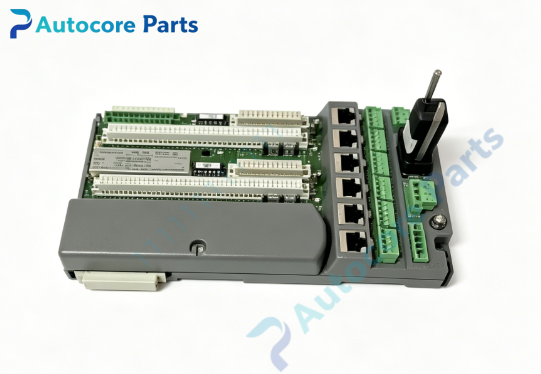

ICS TRIPLEX 9100 Controller Module

Technical Specifications

Model:9100

Brand:ICS TRIPLEX

Product type:Safety controller module

System series:AADvance SIS

Bus type:Parallel backplane system bus

Compatible modules:I/O boards,backplane base units,redundant power supply modules

Redundancy:Supports triple modular redundant hot swap configuration

Power bus:5V DC,24V DC power supply

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:5.83kg

Certification:CE,TÜV,SIL3

System compatibility

This controller hardware belongs to ICS TRIPLEX safety instrumented system and is installed inside rack cabinet. It receives digital and analog signals from field transmitters and safety sensors. It executes safety interlock logic and outputs control commands to field actuators. It communicates with DCS platform,widely deployed in oil & gas,petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

9100 serves as the core safety logic processing unit of AADvance SIS. It collects field signals,runs safety interlock algorithm. It continuously runs hardware self-diagnosis to detect internal circuit failure and communication fault in real time.

Installation

Insert the module vertically into dedicated controller slot of SIS rack. Complete backplane bus connection,download safety logic program and verify fault diagnosis via ICS TRIPLEX engineering software.

Interface

‑Gold finger connector for backplane bus communication

‑Ethernet communication port for system configuration

‑Onboard logic processing and fault detection circuit

‑LED indicators for module running,alarm and fault prompt

Circuit feature

Conformal coated multi-layer PCB design,built-in surge and overvoltage protection circuit. Independent channel monitoring design,fully compliant with SIL3 functional safety hardware specifications.

Feature

9100 is a spare safety controller board for ICS TRIPLEX SIS system. Common faults include internal circuit damage,logic chip failure and backplane communication fault. Confirm rack slot definition and firmware compatibility before replacement.

Diagnostic

When internal hardware failure,communication loss or power breakdown is detected,the module will trigger fault alarm and upload diagnostic messages to safety workstation.

Built‑in function

Safety interlock logic calculation and module hardware self-diagnosis for SIS safety rack,used as SIS controller spare replacement.

Product Brief

9100 is ICS TRIPLEX SIL3 safety controller module,supporting TMR triple modular redundant architecture. Verify rack compatibility before ordering. ESD anti-static protection must be followed during handling installation.
