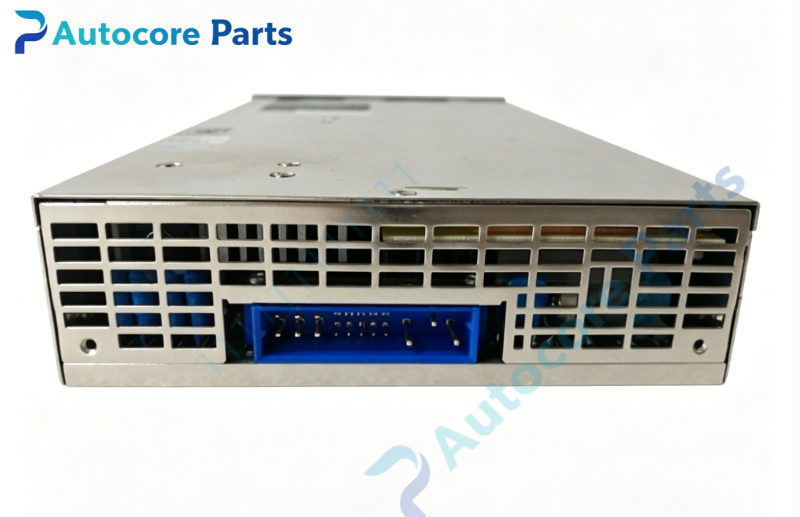

ICS TRIPLEX T8230 Power Distribution Module

Technical Specifications

Model:T8230

Brand:ICS TRIPLEX

Product type:TMR power distribution module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus

Compatible modules:T8100 chassis,T8225 power supply,T8110 series processor,I/O modules

Redundancy:TMR triple modular redundant hot swap architecture

Power bus:24VDC input from power supply module

Output:Distributed multi-channel 24VDC for backplane slots

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:1.10kg

Certification:CE,TÜV,SIL3

System compatibility

This power distribution hardware belongs to ICS TRIPLEX Trusted SIS safety instrumented system and is installed inside T8100 Trusted rack cabinet. It receives 24VDC power from power supply module and distributes regulated power to all backplane slots for processor and I/O modules. It communicates with system engineering workstation,widely deployed in oil & gas,petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

T8230 serves as the high integrity rack power distribution unit of Trusted TMR SIS. It routes and distributes 24VDC power to each module slot on the backplane. It continuously runs self-diagnosis to detect branch overcurrent,short circuit and power distribution abnormality in real time. Built-in branch protection prevents single slot fault from affecting the whole rack power.

Installation

Insert the module vertically into dedicated power distribution slot of T8100 Trusted SIS rack. Complete power wiring and backplane bus connection,verify power distribution status and fault diagnosis via Trusted Workbench engineering software.

Interface

‑Gold finger connector for triple redundant backplane bus communication

‑DC input terminal block receiving power from power supply

‑Multi-channel power output circuit for backplane slot distribution

‑LED indicators for power running,alarm and fault prompt

Circuit feature

Conformal coated multi-layer PCB design,built-in surge and overcurrent protection circuit. Independent branch power monitoring design,fully compliant with SIL3 functional safety hardware specifications.

Feature

T8230 is a spare power distribution board for ICS TRIPLEX Trusted SIS system. Common faults include distribution circuit damage,branch overcurrent shutdown and backplane contact fault. Confirm T8100 rack slot definition and power module compatibility before replacement.

Diagnostic

When branch overcurrent,short circuit or hardware breakdown is detected,the module will trigger fault alarm and upload diagnostic messages to safety workstation.

Built‑in function

24VDC power distribution,branch circuit protection and hardware self-diagnosis for Trusted TMR safety rack,used as SIS power distribution spare replacement.

Product Brief

T8230 is ICS TRIPLEX Trusted SIL3 TMR power distribution module,supporting hot swap,compatible with T8100 chassis and T8225 power supply. Verify rack compatibility before ordering. ESD anti-static protection must be followed during handling installation.
