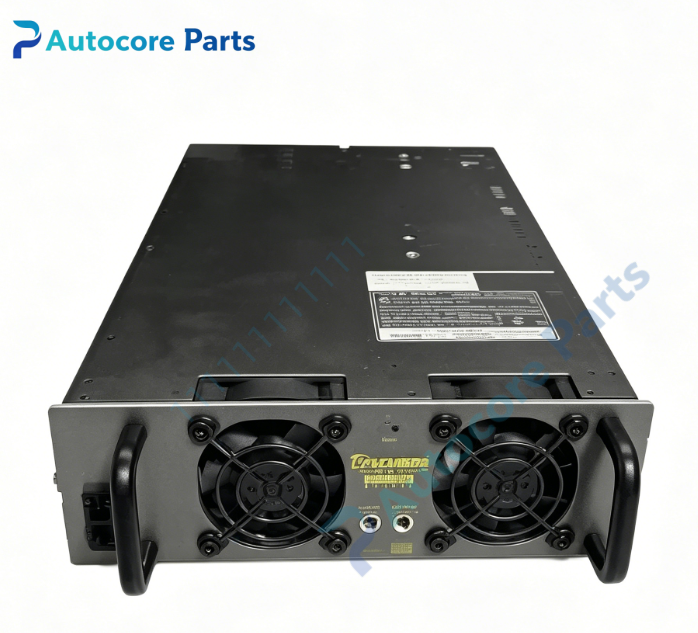

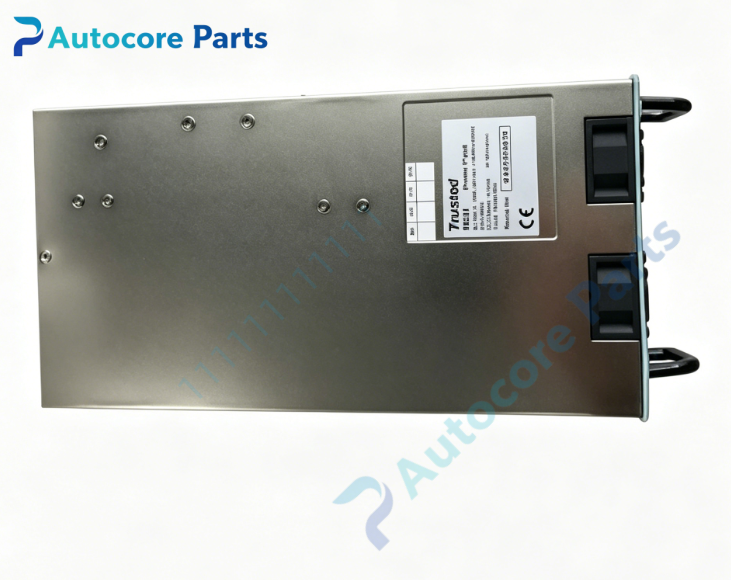

ICS TRIPLEX T8231 Power Pack Module

Technical Specifications

Model:T8231

Brand:ICS TRIPLEX

Product type:TMR high capacity power pack module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus

Compatible modules:T8100 chassis,T8110 series processor,I/O modules,T8225 power supply

Redundancy:TMR triple modular redundant hot swap architecture

Power input:24~28VDC

Power output:Multi-channel stable DC power for rack backplane

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:1.85kg

Certification:CE,TÜV,SIL3

System compatibility

This power pack hardware belongs to ICS TRIPLEX Trusted SIS safety instrumented system and is installed inside T8100 Trusted rack cabinet. It delivers high-capacity auxiliary power to rack backplane and all TMR modules. It communicates with system engineering workstation,widely deployed in oil & gas,petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

T8231 serves as the high integrity high-capacity power pack unit of Trusted TMR SIS. It converts input DC power into multiple regulated power rails for processor and I/O hardware. It continuously runs self-diagnosis to detect input loss,overvoltage,overcurrent,short circuit and overtemperature fault in real time. Its multi-stage protection prevents fault propagation to the whole safety rack and supports hot swap replacement.

Installation

Insert the module vertically into dedicated power slot of T8100 Trusted SIS rack. Complete DC power wiring and backplane bus connection,verify power output status and fault diagnosis via Trusted Workbench engineering software.

Interface

‑Gold finger connector for triple redundant backplane bus communication

‑DC input terminal block for main power source connection

‑Onboard multi-channel power conversion and multi-protection circuit

‑LED indicators for power running,alarm and fault prompt

Circuit feature

Conformal coated multi-layer PCB design,built-in surge and overvoltage protection circuit. Triple channel power monitoring and fault tolerant design,fully compliant with SIL3 functional safety hardware specifications.

Feature

T8231 is a spare high-capacity power pack board for ICS TRIPLEX Trusted SIS system. Common faults include power conversion circuit damage,output channel failure and over-temperature shutdown. Confirm T8100 rack slot definition and power compatibility before replacement.

Diagnostic

When input power loss,overvoltage,overcurrent,overtemperature or hardware breakdown is detected,the module will trigger fault alarm and upload diagnostic messages to safety workstation.

Built‑in function

Multi-channel DC power conversion,power fault monitoring and hardware self-diagnosis for Trusted TMR safety rack,used as SIS high capacity power pack spare replacement.

Product Brief

T8231 is ICS TRIPLEX Trusted SIL3 TMR high capacity power pack module,supporting hot swap,compatible with T8100 chassis. Verify rack compatibility before ordering. ESD anti-static protection must be followed during handling installation.
