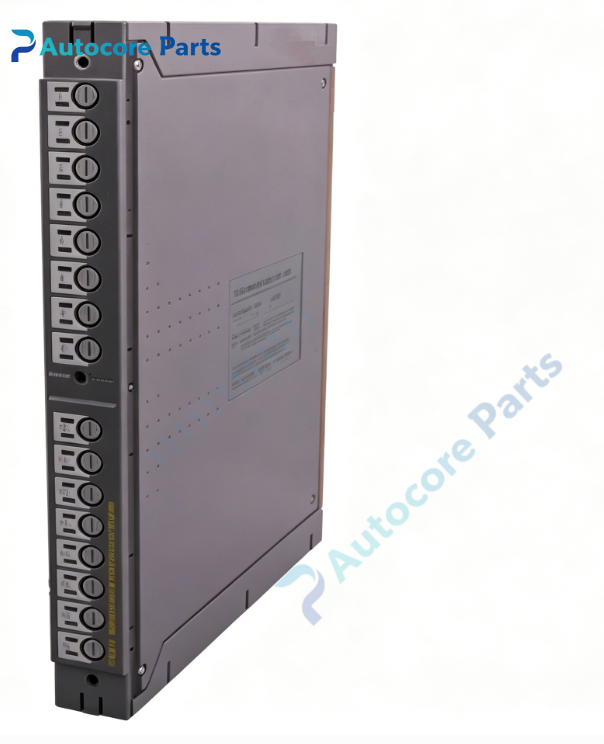

ICS TRIPLEX T3310 I/O Transceiver Module

Technical Specifications

Model:T3310

Brand:ICS TRIPLEX

Product type:TMR I/O transceiver module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus

Compatible modules:Trusted processor boards,AI/DI/DO I/O modules,backplane base units,redundant power supply

Redundancy:TMR triple modular redundant hot swap architecture

Power bus:5V DC,24V DC power supply

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:4.35kg

Certification:CE,TÜV,SIL3

System compatibility

This transceiver hardware belongs to ICS TRIPLEX Trusted SIS safety instrumented system and is installed inside Trusted rack cabinet. It acts as the bridge between TMR controller and field I/O modules,transmits field collected analog and digital signals to processor,and forwards safety control commands to I/O modules. It communicates with engineering workstation,widely deployed in oil & gas,petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

T3310 serves as the high-speed I/O bus transceiver unit of Trusted TMR SIS. It implements bidirectional data transmission between the main controller and I/O modules. It continuously runs hardware self-diagnosis to detect bus disconnection,signal error and internal circuit fault in real time.

Installation

Insert the module vertically into dedicated transceiver slot of Trusted SIS rack. Complete backplane bus connection,verify bus link status and fault diagnosis via Trusted Workbench engineering software.

Interface

‑Gold finger connector for triple redundant backplane bus communication

‑Onboard TMR voting and high-speed bus transceiver circuit

‑LED indicators for module running,bus link,alarm and fault prompt

Circuit feature

Conformal coated multi-layer PCB design,built-in surge and overvoltage protection circuit. Triple channel hardware voting design,fully compliant with SIL3 functional safety hardware specifications.

Feature

T3310 is a spare I/O transceiver board for ICS TRIPLEX Trusted SIS system. Common faults include transceiver circuit damage,bus signal chip failure and backplane contact fault. Confirm rack slot definition and firmware compatibility before replacement.

Diagnostic

When bus communication loss,signal abnormality or hardware breakdown is detected,the module will trigger fault alarm and upload diagnostic messages to safety workstation.

Built‑in function

Redundant I/O bus high-speed data transmission and module hardware self-diagnosis for Trusted TMR safety rack,used as SIS transceiver spare replacement.

Product Brief

T3310 is ICS TRIPLEX Trusted SIL3 I/O transceiver module,supporting TMR triple modular redundant architecture. Verify rack compatibility before ordering. ESD anti-static protection must be followed during handling installation.
