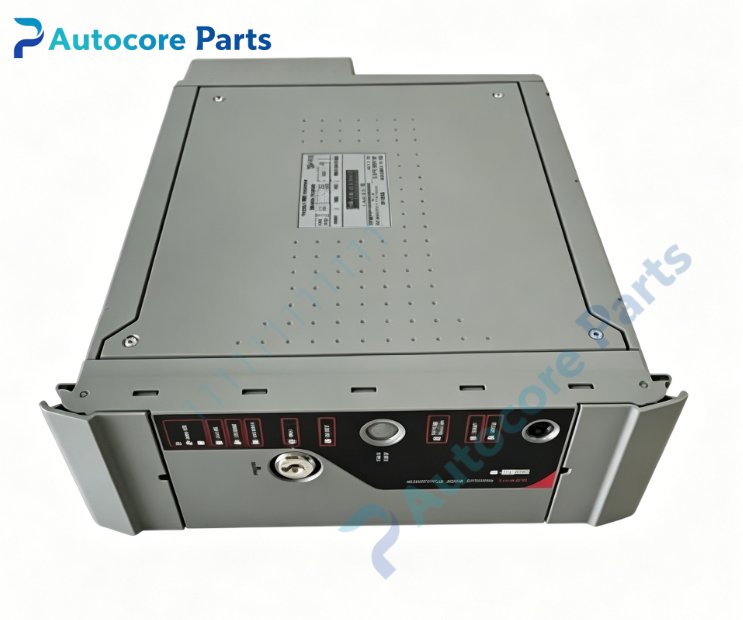

ICS TRIPLEX T8013 Power Supply Module

Technical Specifications

Model:T8013

Brand:ICS TRIPLEX

Product type:TMR redundant power supply module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus

Compatible modules:Trusted processor boards,AI/DI/DO I/O modules,backplane base units,interface modules

Redundancy:Redundant hot swap architecture

Power input:110/230V AC

Power output:5V DC,24V DC

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:3.60kg

Certification:CE,TÜV,SIL3

System compatibility

This power supply hardware belongs to ICS TRIPLEX Trusted SIS safety instrumented system and is installed inside Trusted rack cabinet. It converts AC input to stable DC power and supplies power for all rack modules. It communicates with system engineering workstation,widely deployed in oil & gas,petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

T8013 serves as the high integrity redundant power supply unit of Trusted TMR SIS. It converts alternating current to multiple groups of direct current power for rack internal modules. It continuously runs self-diagnosis to detect overvoltage,overcurrent,overtemperature and short circuit fault in real time. Its redundant design prevents system shutdown caused by single power supply failure.

Installation

Insert the module vertically into dedicated power slot of Trusted SIS rack. Complete mains power wiring and backplane bus connection,verify power output status and fault diagnosis via Trusted Workbench engineering software.

Interface

‑Gold finger connector for triple redundant backplane bus communication

‑AC input terminal block for mains power connection

‑Onboard power conversion and protection circuit

‑LED indicators for power running,alarm and fault prompt

Circuit feature

Conformal coated multi-layer PCB design,built-in surge,overvoltage and overcurrent protection circuit. Hardware redundant power design,fully compliant with SIL3 functional safety hardware specifications.

Feature

T8013 is a spare power supply board for ICS TRIPLEX Trusted SIS system. Common faults include power conversion circuit damage,output detection chip failure and input wiring fault. Confirm rack slot definition and firmware compatibility before replacement.

Diagnostic

When overvoltage,overcurrent,overtemperature or short circuit breakdown is detected,the module will trigger fault alarm and upload diagnostic messages to safety workstation.

Built‑in function

Redundant DC power conversion and hardware self-diagnosis for Trusted TMR safety rack,used as SIS rack power supply spare replacement.

Product Brief

T8013 is ICS TRIPLEX Trusted SIL3 redundant rack power supply module,supporting hot swap architecture. Verify rack compatibility before ordering. ESD anti-static protection must be followed during handling installation.
