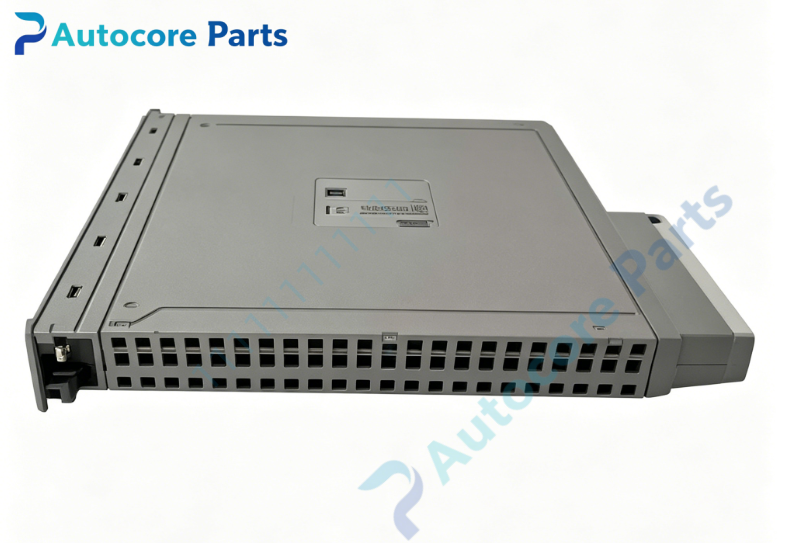

ICS TRIPLEX T8082U Power Pack Module

Technical Specifications

Model:T8082U

Brand:ICS TRIPLEX

Product type:TMR auxiliary power pack module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus

Compatible modules:Trusted processor boards,AI/DI/DO I/O modules,backplane base units,main power supply

Redundancy:TMR triple modular redundant hot swap architecture

Power input:24VDC

Power output:Multiple DC auxiliary power for rack circuit

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:1.28kg

Certification:CE,TÜV,SIL3

System compatibility

This power pack hardware belongs to ICS TRIPLEX Trusted SIS safety instrumented system and is installed inside Trusted rack cabinet. It provides auxiliary power for rack internal circuits and I/O modules. It communicates with system engineering workstation,widely deployed in oil & gas,petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

T8082U serves as the high integrity auxiliary power pack unit of Trusted TMR SIS. It converts input power into multi-channel stable auxiliary DC power for rack internal hardware. It continuously runs self-diagnosis to detect overvoltage,overcurrent,overtemperature and short circuit fault in real time. Its TMR redundant design prevents system abnormality caused by single power channel failure.

Installation

Insert the module vertically into dedicated power slot of Trusted SIS rack. Complete power wiring and backplane bus connection,verify power output status and fault diagnosis via Trusted Workbench engineering software.

Interface

‑Gold finger connector for triple redundant backplane bus communication

‑DC input terminal block for power connection

‑Onboard power conversion and hardware protection circuit

‑LED indicators for power running,alarm and fault prompt

Circuit feature

Conformal coated multi-layer PCB design,built-in surge,overvoltage and overcurrent protection circuit. Triple channel hardware voting and power safety design,fully compliant with SIL3 functional safety hardware specifications.

Feature

T8082U is a spare auxiliary power pack board for ICS TRIPLEX Trusted SIS system. Common faults include power conversion circuit damage,output detection chip failure and input wiring fault. Confirm rack slot definition and firmware compatibility before replacement.

Diagnostic

When overvoltage,overcurrent,overtemperature or short circuit breakdown is detected,the module will trigger fault alarm and upload diagnostic messages to safety workstation.

Built‑in function

Auxiliary DC power conversion and hardware self-diagnosis for Trusted TMR safety rack,used as SIS rack auxiliary power spare replacement.

Product Brief

T8082U is ICS TRIPLEX Trusted SIL3 auxiliary power pack module,supporting TMR triple modular redundant hot swap architecture. Verify rack compatibility before ordering. ESD anti-static protection must be followed during handling installation.
