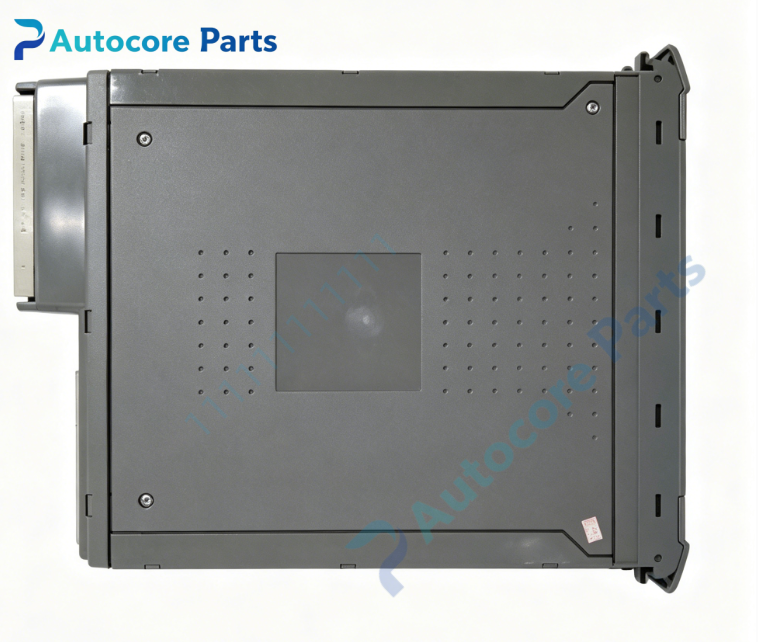

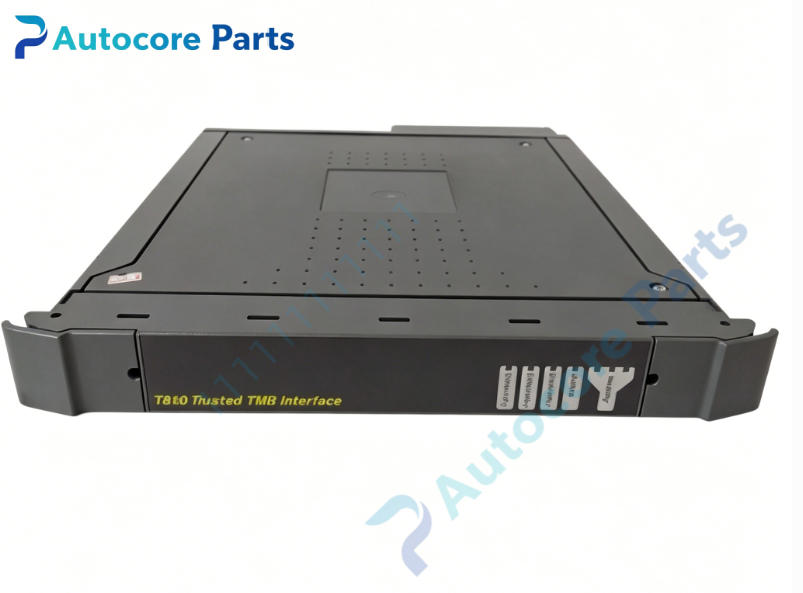

ICS TRIPLEX T8160 Regent Interface Module

Technical Specifications

Model:T8160

Brand:ICS TRIPLEX

Product type:TMR Regent interface module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus

Compatible modules:T8110/T8110B/T8110C processor boards,T8100 chassis,Regent series remote I/O modules,redundant power supply

Redundancy:TMR triple modular redundant hot swap architecture

Power bus:20~32V DC field power supply

Regent I/O bus:High speed differential serial bus

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:2.65kg

Certification:CE,TÜV,SIL3

System compatibility

This interface hardware belongs to ICS TRIPLEX Trusted SIS safety instrumented system and is installed inside T8100 Trusted rack cabinet. It serves as dedicated gateway to connect Trusted main controller and Regent remote I/O subsystem,transfers safety input and output signals between local rack and distributed Regent I/O units. It communicates with system engineering workstation,widely deployed in oil & gas,petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

T8160 serves as the high integrity Regent I/O gateway unit of Trusted TMR SIS. It executes bidirectional safety data transmission between Trusted CPU and Regent I/O modules. It continuously runs per-channel self-diagnosis to detect bus disconnection,signal transmission error and remote I/O hardware fault in real time. Its TMR voting design ensures reliable safety signal transmission even with single internal channel failure.

Installation

Insert the module vertically into dedicated interface slot of T8100 Trusted SIS rack. Complete Regent I/O bus wiring and backplane bus connection,verify gateway communication status and fault diagnosis via Trusted Workbench engineering software.

Interface

‑Gold finger connector for triple redundant backplane bus communication

‑Differential serial port for Regent remote I/O bus connection

‑Onboard TMR voting and signal conversion circuit

‑LED indicators for gateway running,alarm and fault prompt

Circuit feature

Conformal coated multi-layer PCB design,built-in surge and overvoltage protection circuit. Triple channel hardware voting and safety gateway design,fully compliant with SIL3 functional safety hardware specifications.

Feature

T8160 is a spare Regent interface gateway board for ICS TRIPLEX Trusted SIS system. Common faults include signal conversion circuit damage,Regent bus port failure and field wiring fault. Confirm T8100 rack slot definition and firmware compatibility before replacement.

Diagnostic

When Regent bus disconnection,signal transmission error or hardware breakdown is detected,the module will trigger fault alarm and upload diagnostic messages to safety workstation.

Built‑in function

Bidirectional safety signal bridging and hardware self-diagnosis between Trusted controller and Regent I/O subsystem for Trusted TMR safety rack,used as SIS Regent interface spare replacement.

Product Brief

T8160 is ICS TRIPLEX Trusted SIL3 Regent interface module,supporting TMR triple modular redundant hot swap architecture,compatible with T8100 chassis and Regent remote I/O. Verify rack compatibility before ordering. ESD anti-static protection must be followed during handling installation.
