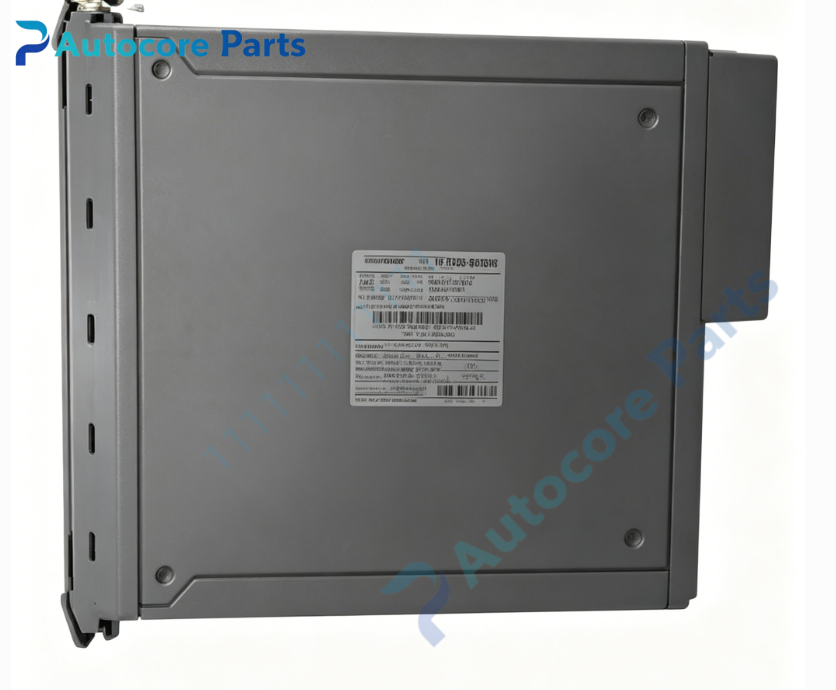

ICS TRIPLEX T8170C Enhanced Gateway Module

Technical Specifications

Model:T8170C

Brand:ICS TRIPLEX

Product type:TMR enhanced embedded gateway module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus

Compatible modules:T8110/T8110B/T8110C processor boards,T8100 chassis,T8173 gateway adapter,redundant power supply

Redundancy:TMR triple modular redundant hot swap architecture

Power bus:24VDC supplied from rack backplane

Network ports:Dual 10/100Base-T Ethernet

Auxiliary port:1 serial maintenance port

Peripheral interface:VGA, keyboard, mouse via T8173 adapter

Storage:30GB internal storage

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:2.78kg

Certification:CE,TÜV,SIL3

System compatibility

This gateway hardware belongs to ICS TRIPLEX Trusted SIS safety instrumented system and is installed inside T8100 Trusted rack cabinet. It serves as upgraded embedded computing gateway,hosts OPC server and archives SOE sequence of events data,exchanges safety tags and alarm messages between Trusted SIS and upper SCADA/HMI historian. Widely deployed in oil & gas,petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

T8170C is the high integrity upgraded embedded gateway unit of Trusted TMR SIS. It runs OPC DA & A&E server for upper monitoring system access to safety controller data. It adopts non-interfering architecture and will not affect core safety logic execution of TMR processor. It continuously runs self-diagnosis to detect ethernet link break,storage fault and communication abnormality in real time. Dual redundant Ethernet design prevents communication interruption caused by single link failure,with expanded local event archive capacity.

Installation

Insert the module vertically into dedicated gateway slot of T8100 Trusted SIS rack. Install T8173 gateway peripheral adapter,complete ethernet cable wiring and backplane bus connection,verify gateway running status and fault diagnosis via Trusted Workbench engineering software.

Interface

‑Gold finger connector for triple redundant backplane bus communication

‑Dual 10/100Mbps Ethernet port for redundant network connection

‑Serial maintenance port for local debugging and configuration

‑Rear connector for T8173 VGA/keyboard/mouse peripheral adapter

‑LED indicators for gateway running,alarm and fault prompt

Circuit feature

Conformal coated multi-layer PCB design,built-in surge and overvoltage protection circuit. Independent embedded hardware architecture separated from safety voting path,fully compliant with SIL3 functional safety hardware specifications.

Feature

T8170C is a spare upgraded gateway board for ICS TRIPLEX Trusted SIS system. Common faults include storage media failure,ethernet port damage and backplane contact fault. Confirm T8100 rack slot definition and firmware compatibility before replacement.

Diagnostic

When ethernet link disconnection,storage abnormality or hardware breakdown is detected,the module will trigger fault alarm and upload diagnostic messages to safety workstation.

Built‑in function

Enhanced embedded gateway operation,OPC data service,large-capacity SOE event archiving and hardware self-diagnosis for Trusted TMR safety rack,used as SIS upper monitoring gateway spare replacement.

Product Brief

T8170C is ICS TRIPLEX Trusted SIL3 upgraded TMR embedded gateway module,supporting hot swap,requires T8173 adapter. Verify rack and processor firmware compatibility before ordering. ESD anti-static protection must be followed during handling installation.
