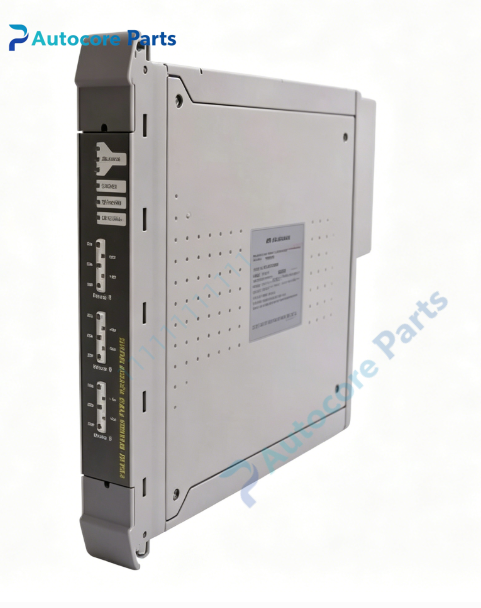

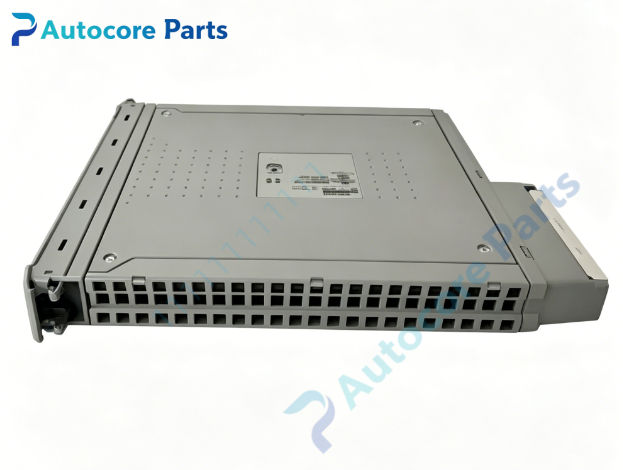

ICS TRIPLEX T8433 Analog Input Module

Technical Specifications

Model:T8433

Brand:ICS TRIPLEX

Product type:TMR 20-channel isolated analog input module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus

Compatible modules:T8300 / T8314 expander chassis,T8310 expander processor,T8311 expander interface

Redundancy:TMR triple modular redundant hot swap architecture

Field input:4-20mA,20 isolated channels

Accuracy:±0.02% full scale

Galvanic isolation:2500V

SOE resolution:1ms

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:0.50kg

Certification:CE,TÜV,SIL3

System compatibility

T8433 belongs to ICS TRIPLEX Trusted SIS safety instrumented system and installs inside T8300 or T8314 expander rack. It collects isolated 4-20mA analog signals from field pressure, temperature and flow transmitters,converts analog signals to digital data and transmits triplicated validated data to expander processor. Widely deployed in oil & gas,petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

T8433 serves as high integrity 20-channel isolated analog input unit of Trusted TMR SIS. It samples 4-20mA loop signals and adopts TMR 2oo3 hardware voting logic to obtain accurate process values. It supports 1ms high precision SOE sequence of events recording for incident trace analysis. Each channel continuously monitors loop health,open circuit and short circuit faults. It supports hot swap replacement without powering down the expansion rack.

Installation

Insert T8433 vertically into dedicated I/O slot of T8300/T8314 expander chassis. Connect field transmitter wiring to terminal assembly. Check channel readings and fault alarms via Trusted Workbench engineering software.

Interface

‑Gold finger connector for triple redundant backplane bus

‑Field termination interface for 20-channel 4-20mA isolated analog wiring

‑Front panel LED indicators for per-channel run,alarm and fault status

‑Onboard TMR sampling,signal conversion and channel diagnostic circuit

Circuit feature

Conformal coated multi-layer PCB,built-in surge and overvoltage protection. Triple slice independent signal acquisition and hardware voting architecture,fully compliant with SIL3 functional safety requirements.

Feature

T8433 is spare 20-channel isolated analog input board for ICS TRIPLEX Trusted SIS. Common faults include input channel burnout,transmitter loop short circuit and backplane contact fault. Confirm field signal type and chassis compatibility before replacement.

Diagnostic

Once channel open circuit,short circuit or onboard hardware breakdown is detected,the module triggers alarm and uploads diagnostic messages and SOE event logs to safety workstation.

Built‑in function

Isolated field analog signal acquisition,per-channel loop fault monitoring,high-speed data conversion and TMR signal voting for Trusted TMR expansion rack,used as SIS analog input spare replacement.

Product Brief

T8433 is ICS TRIPLEX Trusted SIL3 TMR 20-channel isolated 4-20mA analog input module,hot swappable for T8300/T8314 expander chassis. Verify system firmware compatibility before ordering. ESD anti-static protection must be followed during handling and installation.
