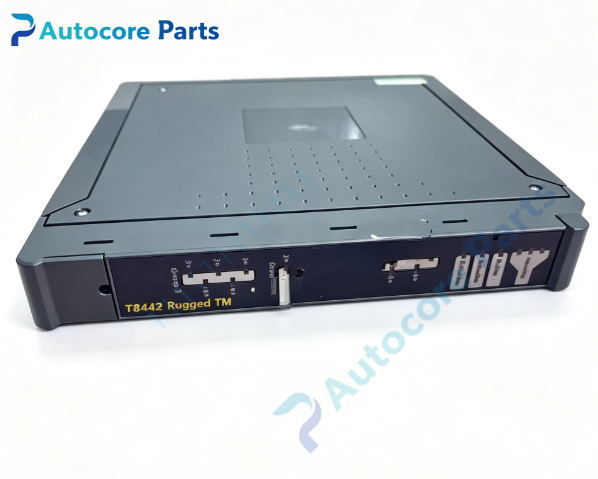

ICS TRIPLEX T8442 Speed Monitor Module

Technical Specifications

Model:T8442

Brand:ICS TRIPLEX

Product type:TMR speed monitor module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus

Compatible modules:T8300 / T8314 expander chassis,T8310 expander processor,T8311 expander interface,T8846 SIFTA transducer

Redundancy:TMR triple modular redundant hot swap architecture

Measurement function:Shaft speed,acceleration

Application:Gas turbine,steam turbine,compressor,generator machinery protection

Diagnostic:Built-in self-test signal injection for circuit health check

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:0.58kg

Certification:CE,TÜV,SIL3

System compatibility

This speed monitor hardware belongs to ICS TRIPLEX Trusted SIS safety instrumented system and installs inside T8300 or T8314 expander rack. It receives pulse signals from field speed transducers,calculates rotational speed and acceleration values,executes overspeed and over-acceleration protection logic for rotating equipment. Widely deployed in oil & gas,power generation and chemical plants for critical machinery ESD protection.

Function

T8442 serves as high integrity machinery speed monitoring unit of Trusted TMR SIS. It samples pulse signals from speed sensors and adopts 2oo3 TMR hardware voting to judge actual rotating speed and acceleration. It implements overspeed and over-acceleration safety trip functions for rotating assets. It supports online self-test injection to verify channel function under steady state. It supports hot swap replacement without rack power off.

Installation

Insert T8442 vertically into dedicated I/O slot of T8300/T8314 expander chassis. Wire field speed transducer cables to terminal assembly. Verify speed reading and protection alarm via Trusted Workbench engineering software.

Interface

‑Gold finger connector for triple redundant backplane bus

‑Field termination interface for speed transducer pulse wiring

‑Front panel LED indicators for channel run,alarm and fault status

‑Onboard TMR pulse sampling,acceleration calculation and self-test circuit

Circuit feature

Conformal coated multi-layer PCB design,built-in surge and ESD protection. Triple slice independent signal acquisition and hardware voting design,fully compliant with SIL3 functional safety hardware specifications.

Feature

T8442 is spare TMR speed monitor board for ICS TRIPLEX Trusted SIS. Common faults include pulse channel burnout,sensor wiring short circuit and backplane contact fault. Confirm transducer type and chassis compatibility before replacement.

Diagnostic

When channel open circuit,signal loss or onboard hardware breakdown is detected,the module triggers fault alarm and uploads diagnostic messages to safety workstation.

Built‑in function

Rotating shaft pulse signal acquisition,speed & acceleration calculation,machinery overspeed protection and per-channel self-test for Trusted TMR expansion rack,used as SIS speed monitor spare replacement.

Product Brief

T8442 is ICS TRIPLEX Trusted SIL3 TMR speed monitor module,hot swappable for T8300/T8314 expander chassis,designed for turbine and compressor machinery protection. Verify system firmware compatibility before ordering. ESD anti-static protection must be followed during handling installation.
