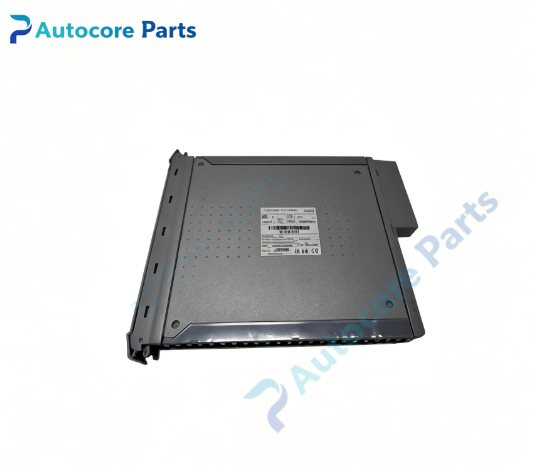

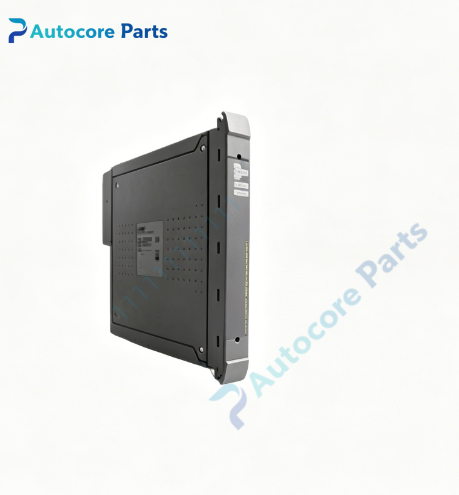

ICS TRIPLEX T9193 Advanced Communication Interface Module

Technical Specifications

Model:T9193

Brand:ICS TRIPLEX

Product type:TMR advanced communication interface co-processor module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus

Compatible modules:T9100-F2 main processor,T9110 PIA module

Redundancy:TMR triple modular redundant hot swap architecture

Communication:2×Ethernet ports,2×serial RS485/RS232 channels,IRIG-B time synchronization

System supply:20~32VDC

Diagnostic:Continuous triple channel health monitoring,communication link diagnostic

Operating temperature:-5~+60℃

Relative humidity:5~95% non-condensing

Weight:1.25kg

Certification:CE,TÜV,SIL3

System compatibility

T9193 belongs to ICS TRIPLEX Trusted SIS safety instrumented system and installs in main processor rack. It acts as high-performance communication co-processor,offloads heavy data exchange tasks from T9100 main processor. It connects SIS with DCS,HMI,SCADA and third-party safety devices. Widely deployed in oil & gas,petrochemical and power generation plants for ESD,turbine protection and fire & gas safety applications.

Function

T9193 serves as high integrity advanced communication unit of Trusted TMR SIS. It executes TMR 2oo3 hardware voting for all safety data transmission,realizes protocol conversion and high precision time synchronization. It reduces main CPU load and ensures stable,consistent safety data transmission. It supports hot swap replacement without shutting down the safety rack.

Installation

Insert T9193 vertically into dedicated slot of Trusted main rack. Connect redundant network and serial cables. Verify communication link and time sync status via Trusted Workbench engineering software.

Interface

‑Gold finger connector for triple redundant backplane bus

‑Dual Ethernet ports and dual serial communication terminals

‑IRIG-B time synchronization input port

‑Front panel LED indicators for run,alarm and communication fault

‑Onboard TMR data processing and communication diagnostic circuit

Circuit feature

Conformal coated multi-layer PCB design,built-in surge and overvoltage protection circuit. Triple slice independent data processing and hardware voting design,fully compliant with SIL3 functional safety hardware specifications.

Feature

T9193 is spare advanced communication interface board for ICS TRIPLEX Trusted SIS. Common faults include Ethernet port failure,serial interface damage,backplane communication error. Confirm rack firmware compatibility before replacement.

Diagnostic

When communication loss,channel mismatch or onboard hardware failure is detected,the module triggers fault alarm and uploads diagnostic messages to safety workstation.

Built‑in function

Safety data communication processing,multi-protocol conversion,IRIG-B time synchronization and TMR signal voting for Trusted TMR SIS rack,used as SIS advanced communication interface spare replacement.

Product Brief

T9193 is ICS TRIPLEX Trusted SIL3 TMR advanced communication interface module,hot swappable for Trusted main rack,designed for high volume safety data exchange between SIS and upper host systems. Verify system firmware compatibility before ordering. ESD anti-static protection must be followed during handling installation.
