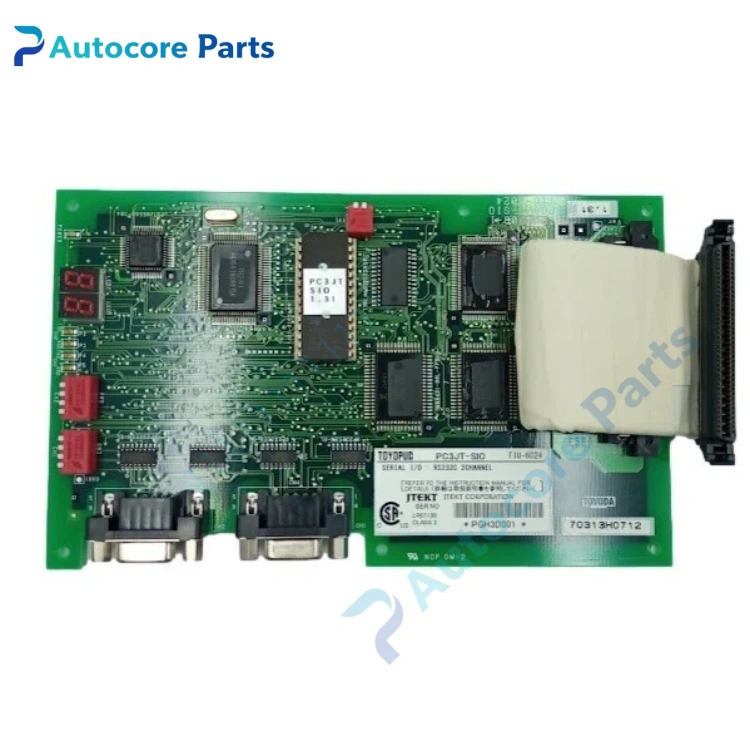

JTEKT TOYOPUC PC3JT PLC CPU

Feature & Principle

It is a compact thin PLC CPU of JTEKT TOYOPUC PC3J series. It supports three independent sequence programs and built-in program library storage. Two standard communication ports are integrated for HMI and PC/CMP link connection. Optional DLNK communication expansion module can realize DeviceNet or AS-i bus master function. The 7-segment display directly shows RUN, ERROR and ALARM status. It executes ladder logic control for automatic assembly and processing equipment. This legacy controller is widely used as maintenance spare for old TOYOPUC automation racks.

Specifications

Model: PC3JT Brand: JTEKT Series: TOYOPUC PC3J Program memory: 16K words × 3 + library area Basic instruction speed: 0.6μs per instruction Built-in ports: 2 communication ports Optional bus: DeviceNet, AS-i Status indicator: 7-segment LED Installation: Thin rack mount, 55.2mm thickness Application: Automated assembly machines, machine tools, transfer line control cabinet Certification: CE

Components & Diagnostics

Main control IC, memory chip, communication transceiver circuit, 7-segment display, backplane connector, status LED. Common faults: communication link failure, program read error, CPU run halt, backplane contact failure.

Product Brief

PC3JT PLC CPU module, JTEKT TOYOPUC compact sequence control spare widely used for automation production line overhaul and replacement.
