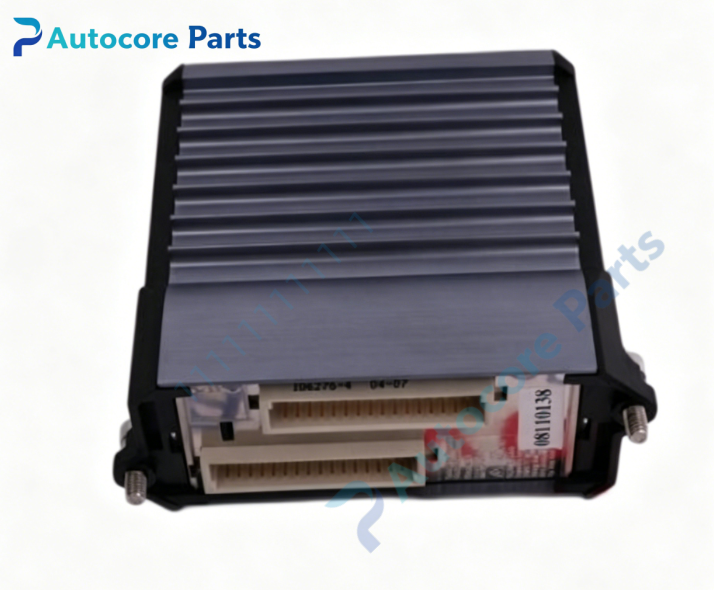

KEBA 2203-6429 Digital Output Module

Technical Specifications

Model:2203-6429

Brand:KEBA

Product type:16-channel digital output module

Power supply:24 Vdc,max 8A total output

Control function:Digital switch signal output,output short-circuit protection,channel status detection,hardware self-diagnosis,fault indication

Communication:Internal backplane bus

Mounting:Plug-in rack mounting

Operating temperature:-10~55℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:0.18kg

Dimension:90mm90mm35mm

Certification:CE

Protection class:IP20

System compatibility

2203-6429 belongs to KEBA KePlast control system family,matched with KEBA CPU and I/O rack.Widely applied in injection molding machine and automated machinery control cabinets.This is a discontinued legacy digital output module for equipment maintenance spare replacement.

Function

2203-6429 serves as KEBA 16-channel digital output module.It receives control instructions from main controller via backplane bus and outputs switching signals to actuators,solenoid valves and relays.Each channel supports short-circuit and overload protection,can detect abnormal output status and feed back information to host controller.It is the signal output component of KEBA machinery control system.

Installation

Insert 2203-6429 into the designated rack slot and lock the latch.Complete field actuator wiring according to wiring drawing.Check 24V power polarity and cabinet grounding before power-on.

Interface

‑Rack backplane connector

‑Screw terminal block for field output

‑Channel status LED indicator

‑Module fault status lamp

Circuit feature

Isolated output circuit,built-in ESD and surge suppression design.Stable switch signal output,strong anti-interference performance for industrial cabinet environment.

Feature

2203-6429 is obsolete KEBA series spare part.Typical failures include channel no output,output burnout,backplane communication failure.Check module circuit and terminal pins before replacement.This module must match corresponding KEBA rack system,direct substitution without inspection is not recommended.

Diagnostic

When channel short-circuit,overload or internal hardware fault occurs,the module uploads fault information to host controller and lights up fault LED.

Built‑in function:16-channel digital signal output,overload and short-circuit protection,channel status monitoring,used as KEBA KePlast series digital output module spare replacement.

Product Brief

2203-6429 is KEBA old industrial series 16CH digital output module for injection molding machine and automated production equipment.Confirm KEBA rack and CPU model matching before ordering.ESD protection required during handling and installation.
