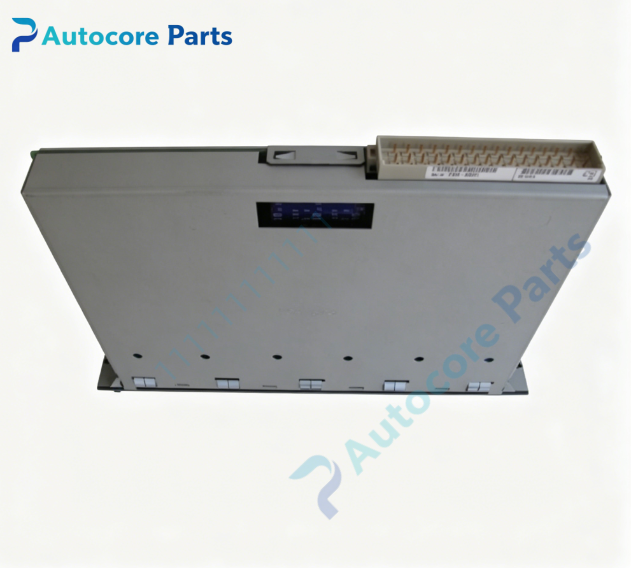

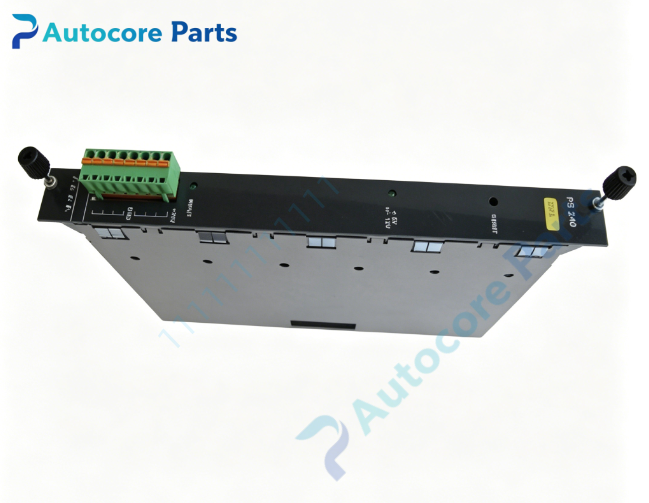

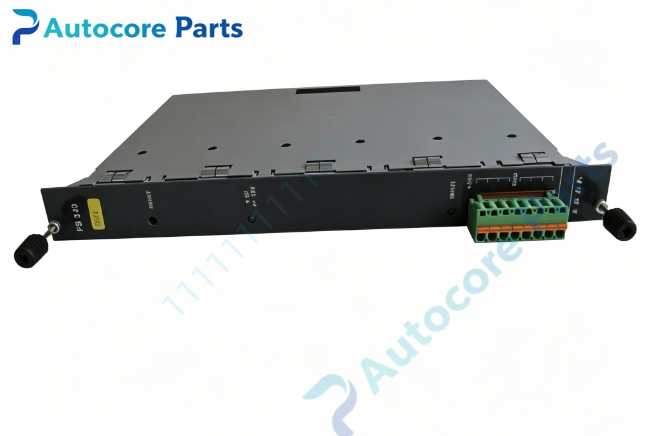

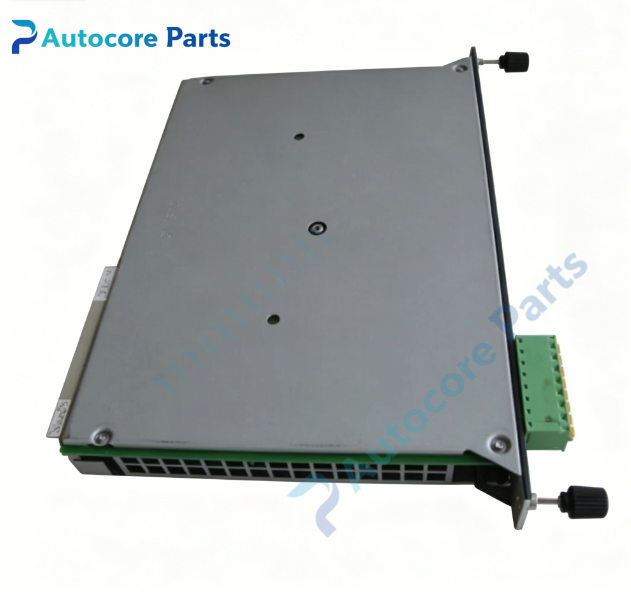

KEBA PS240 Power Supply Module

Technical Specifications

Model:PS240

Brand:KEBA

Product type:Rack mount power supply module

Power input:100-240V AC 50/60Hz

Output:24 Vdc,19.2~28.8V tolerance,max 3.5A

Control function:Stable DC power output,overvoltage protection,overload protection,short-circuit protection,overtemperature protection,hardware self-diagnosis,fault indication

Communication:Kemro K2 backplane bus

Mounting:Plug-in rack slot installation

Operating temperature:-10~55℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:0.42kg

Dimension:260mm64mm25mm

Certification:CE

Protection class:IP20

System compatibility

PS240 belongs to KEBA Kemro K2 control system family,matched with KEMRO-BUS-8 backplane,CPU modules and I/O modules.Widely applied in injection molding,die-casting machine control cabinets.This is a discontinued legacy power supply module for equipment maintenance spare replacement.

Function

PS240 serves as KEBA rack power supply module.It converts AC input into stabilized 24V DC power to supply the whole Kemro K2 rack including CPU,communication and I/O modules.It is equipped with multi-level protection functions including overvoltage,overload,short-circuit and overheat protection to protect all modules on the backplane.It monitors output voltage and current status continuously and sends fault signals to main controller via backplane bus.It acts as core power supply component for Kemro K2 modular control system.

Installation

Insert PS240 into the designated rack slot and lock the latch.Complete AC input wiring and ground connection according to wiring drawing.Check input voltage and cabinet grounding before power-on.

Interface

‑AC power input terminal

‑24Vdc power output terminal

‑Kemro K2 backplane gold finger connector

‑Power status and fault LED indicator

Circuit feature

Built-in ESD and surge suppression circuit,input/output galvanic isolation design,fanless natural cooling,strong anti-interference performance for industrial cabinet environment.

Feature

PS240 is obsolete KEBA series spare part.Typical failures include no power output,intermittent power drop,protection shutdown,connector oxidation.Check module circuit,rectifier circuit and gold fingers before replacement.This module must match Kemro K2 series rack system,direct substitution without inspection is not recommended.

Diagnostic

When overvoltage,overload,short-circuit or overtemperature fault occurs,the module triggers protection and lights up fault LED.

Built‑in function:AC-DC power conversion,stable 24V DC output,multi-protection,status monitoring,self-diagnosis and fault alarm,used as KEBA Kemro K2 series rack power supply module spare replacement.

Product Brief

PS240 is KEBA old industrial rack power supply module for injection molding and die-casting machine automation equipment.Confirm compatibility with Kemro K2 backplane before ordering.ESD protection required during handling and installation.
