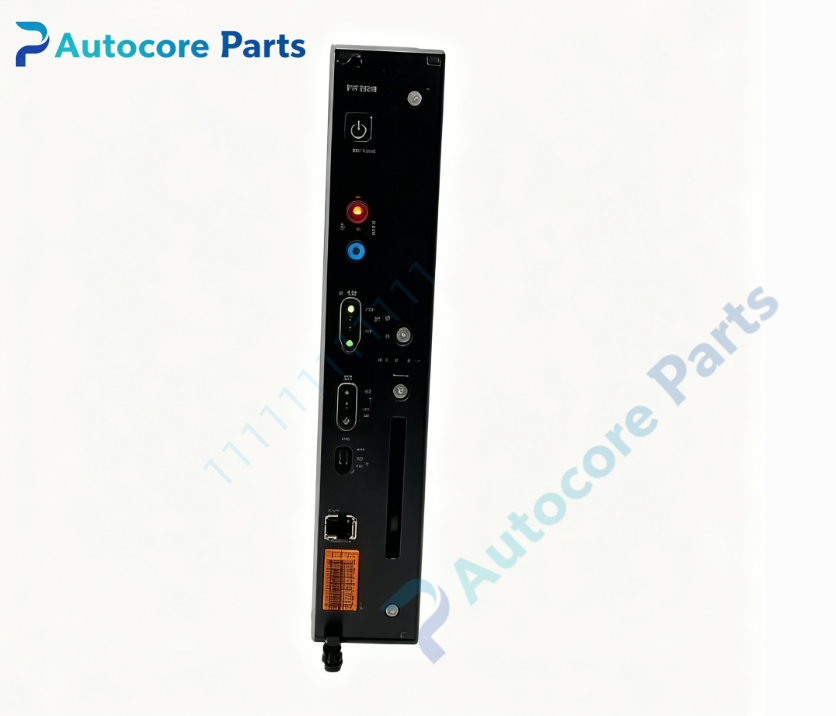

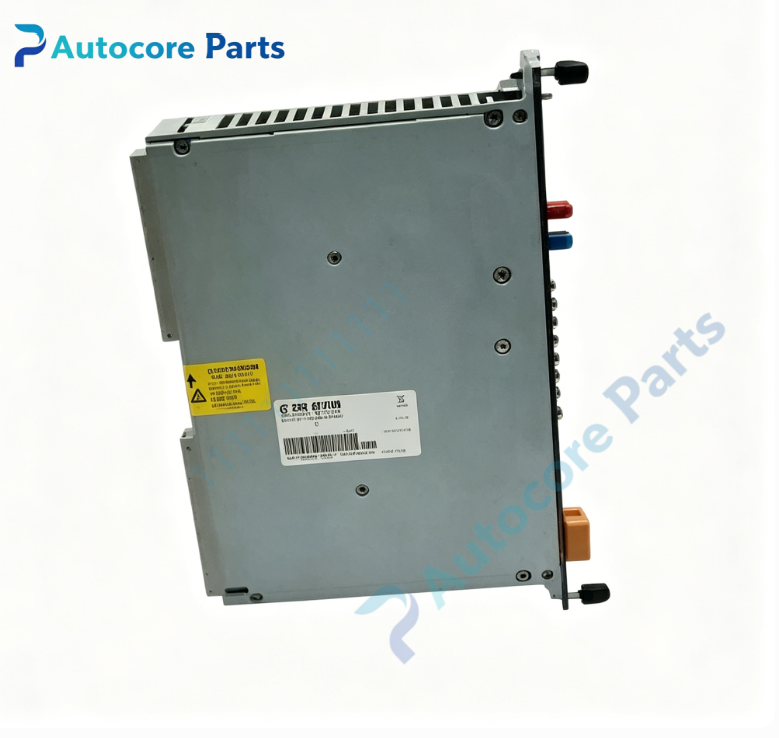

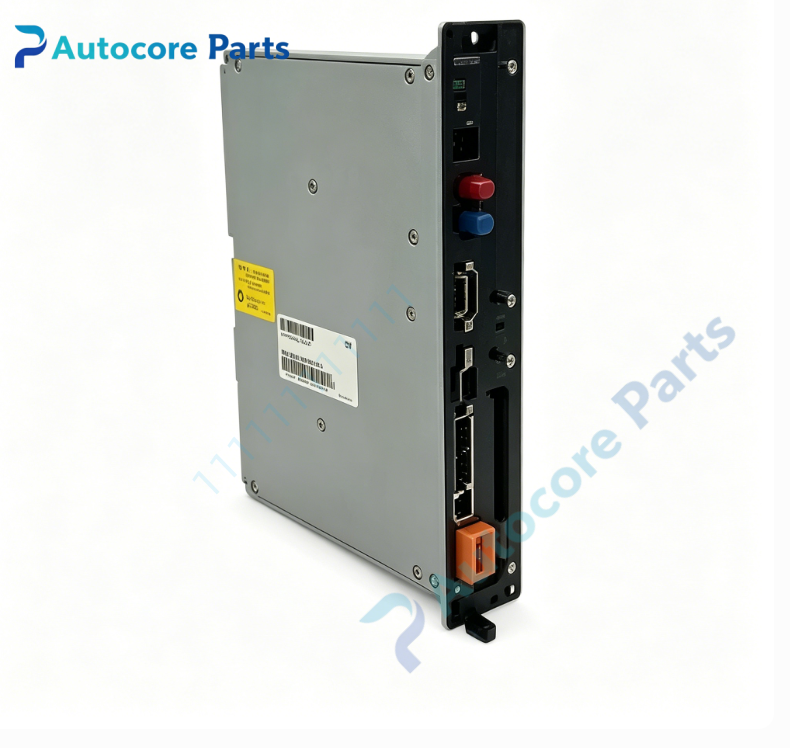

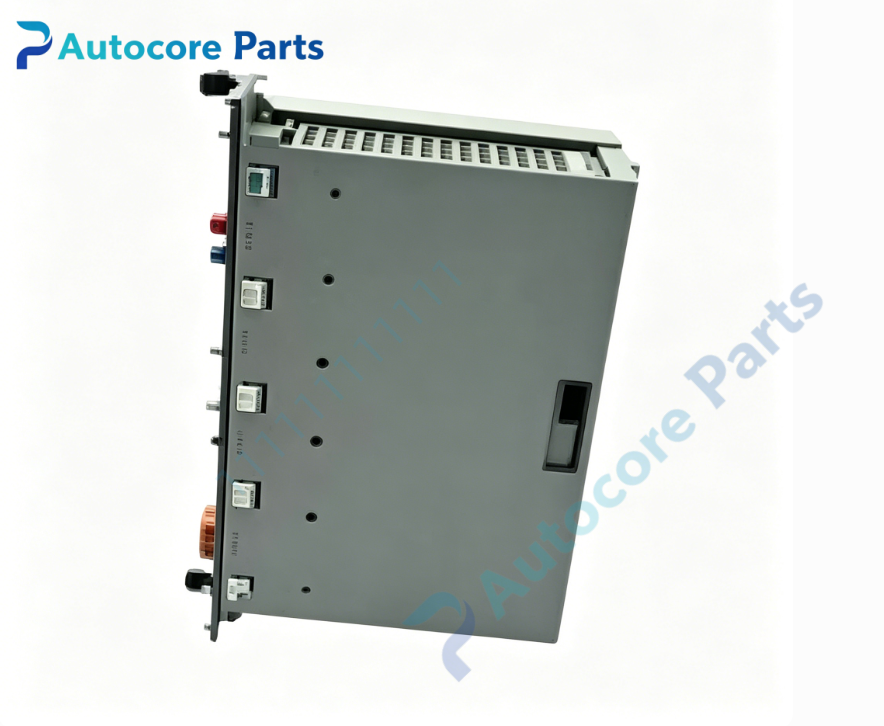

KEBA CU313/C-SI/63036/06 CPU Controller Module

Technical Specifications

Model:CU313/C-SI/63036/06

Brand:KEBA

Product type:Central processing unit module

Power supply:24 Vdc,max 1.4A

Control function:Program execution,machine logic calculation,multi-axis motion control,parameter and log storage,hardware self-diagnosis,fault alarm

Communication:Ethernet,RS232,CAN bus,internal backplane bus

Mounting:Plug-in rack mounting

Operating temperature:-10~55℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:0.49kg

Dimension:165mm100mm32mm

Certification:CE

Protection class:IP20

System compatibility

CU313/C-SI/63036/06 belongs to KEBA control system family,matched with KEBA I/O modules and operator panels.Widely applied in injection molding machinery and robot control cabinets.This is a discontinued legacy CPU controller module for equipment maintenance spare replacement.

Function

CU313/C-SI/63036/06 serves as KEBA central processing unit module.It executes user control programs,handles logic operations and multi-axis motion planning.It communicates with I/O modules,HMI and servo drives through multiple communication interfaces.It stores machine configuration data and runtime logs,monitors hardware working status continuously and outputs fault warning signals.It acts as core control component for KEBA plastic and robotic automation equipment.

Installation

Insert CU313/C-SI/63036/06 into the designated rack slot and lock the latch.Complete power,communication and backplane wiring according to wiring drawing.Check 24V power polarity and cabinet grounding before power-on.

Interface

‑24Vdc power terminal

‑Ethernet communication port

‑RS232 serial port

‑CAN bus interface

‑Rack backplane connector

‑Status and fault LED indicator

Circuit feature

Isolated control circuit,built-in ESD and surge suppression design.Stable program operation and high-speed data transmission,strong anti-interference performance for industrial cabinet environment.

Feature

CU313/C-SI/63036/06 is obsolete KEBA series spare part.Typical failures include communication interruption,program reading error,calculation abnormality,indicator fault.Check module circuit and connector pins before replacement.This module must match corresponding KEBA rack system,direct substitution without inspection is not recommended.

Diagnostic

When communication failure,memory error or internal hardware fault occurs,the module uploads fault information to system and lights up fault LED.

Built‑in function:Control program execution,logic and motion control,parameter storage,multi-protocol communication,self-diagnosis and fault alarm,used as KEBA series CPU controller module spare replacement.

Product Brief

CU313/C-SI/63036/06 is KEBA old industrial series CPU controller for injection molding machine and robot automation equipment.Confirm KEBA rack and system matching before ordering.ESD protection required during handling and installation.
