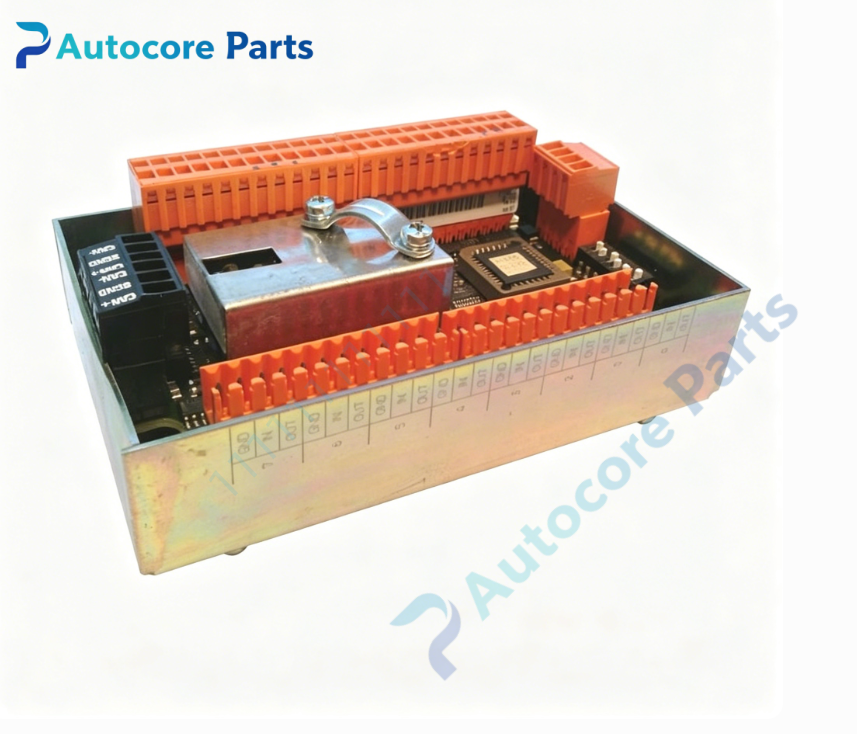

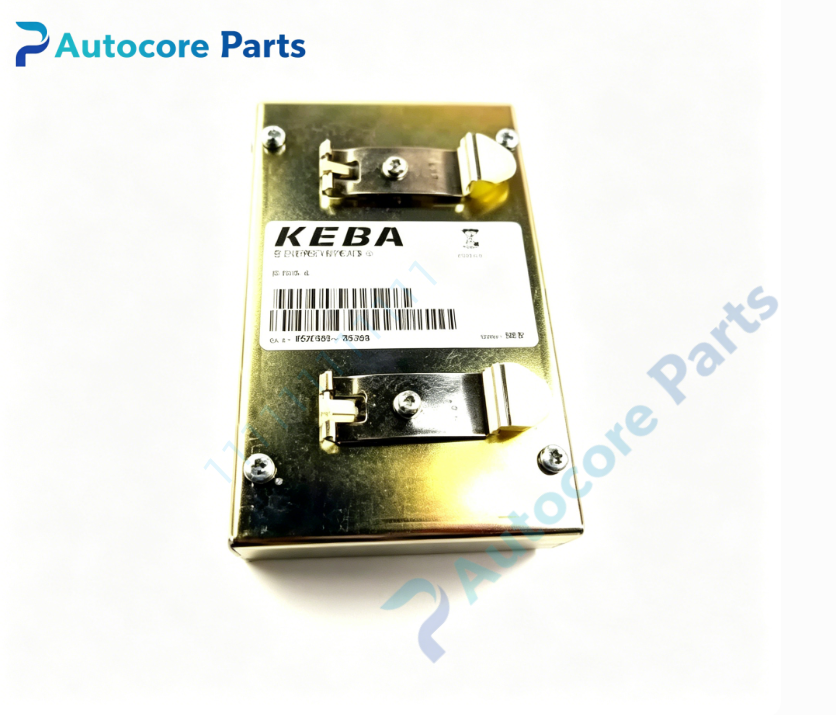

KEBA DC162/IP20/53151/04 Integrated Controller Module

Technical Specifications

Model:DC162/IP20/53151/04

Brand:KEBA

Product type:Integrated machine controller module

Power supply:24 Vdc,max 1.6A

Control function:Program execution,machine logic calculation,multi-axis motion control,analog signal processing,parameter storage,hardware self-diagnosis,fault alarm

Communication:Ethernet,RS232,CAN bus,internal backplane bus

Mounting:Plug-in rack mounting

Operating temperature:-10~55℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:0.55kg

Dimension:170mm105mm35mm

Certification:CE

Protection class:IP20

System compatibility

DC162/IP20/53151/04 belongs to KEBA KePlast control system family,matched with KEBA I/O modules and operator panels.Widely applied in injection molding machinery and automated equipment control cabinets.This is a discontinued legacy integrated controller module for equipment maintenance spare replacement.

Function

DC162/IP20/53151/04 serves as KEBA integrated machine controller module.It executes user control programs,processes logic commands and multi-axis motion planning.It collects analog and digital field signals,communicates with I/O modules,HMI and servo drives through multiple communication interfaces.It stores machine configuration data and operating logs,continuously monitors hardware operating status and triggers fault alarms.It acts as core integrated control component for KEBA plastic automation equipment.

Installation

Insert DC162/IP20/53151/04 into the designated rack slot and lock the latch.Complete power,communication and backplane wiring according to wiring drawing.Check 24V power polarity and cabinet grounding before power-on.

Interface

‑24Vdc power terminal

‑Ethernet communication port

‑RS232 serial port

‑CAN bus interface

‑Rack backplane connector

‑Status and fault LED indicator

Circuit feature

Isolated control circuit,built-in ESD and surge suppression design.Stable program operation and high-speed data transmission,strong anti-interference performance for industrial cabinet environment.

Feature

DC162/IP20/53151/04 is obsolete KEBA series spare part.Typical failures include communication interruption,program reading error,calculation abnormality,indicator fault.Check module circuit and connector pins before replacement.This module must match corresponding KEBA rack system,direct substitution without inspection is not recommended.

Diagnostic

When communication failure,memory error or internal hardware fault occurs,the module uploads fault information to system and lights up fault LED.

Built‑in function:Control program execution,logic and motion control,analog signal acquisition,parameter storage,multi-protocol communication,self-diagnosis and fault alarm,used as KEBA KePlast series integrated controller module spare replacement.

Product Brief

DC162/IP20/53151/04 is KEBA old industrial series IP20 integrated controller for injection molding machine automation equipment.Confirm KEBA rack and system matching before ordering.ESD protection required during handling and installation.
