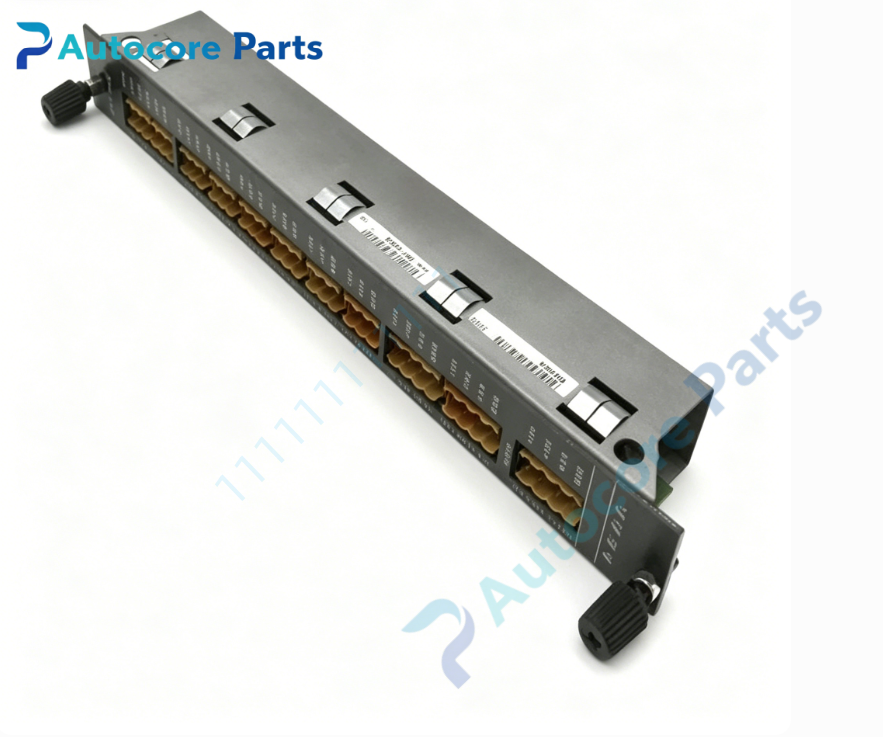

KEBA PD-242/A Power Distribution Module

Technical Specifications

Model:PD-242/A

Brand:KEBA

Product type:Rack mount power distribution module

Power supply:24 Vdc,19.2~28.8V tolerance,max 4A

Control function:Backplane power distribution,overvoltage/undervoltage protection,overcurrent protection,power status monitoring,hardware self-diagnosis,fault indication

Communication:Kemro K2 backplane bus

Mounting:Plug-in rack slot installation

Operating temperature:-10~55℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:0.3kg

Dimension:260mm64mm25mm

Certification:CE

Protection class:IP20

System compatibility

PD-242/A belongs to KEBA Kemro K2 control system family,matched with KEMRO-BUS-8 backplane,K2 series CPU and I/O modules.Widely applied in injection molding,die-casting machine control cabinets.This is a discontinued legacy power distribution module for equipment maintenance spare replacement.

Function

PD-242/A serves as KEBA rack power distribution module.It receives 24V input power and distributes stable power supply to each module on Kemro K2 backplane.It integrates multiple protection circuits,including overcurrent,overvoltage and short-circuit protection,to avoid damage to control modules caused by power abnormality.It continuously monitors power supply status and feeds fault signals back to main controller through backplane bus.It acts as power distribution and protection component for Kemro K2 modular control system.

Installation

Insert PD-242/A into the designated rack slot and lock the latch.Complete power input wiring according to wiring drawing.Check 24V power polarity and cabinet grounding before power-on.

Interface

‑24Vdc power input terminal

‑Kemro K2 backplane gold finger connector

‑Power status and fault LED indicator

Circuit feature

Built-in ESD and surge suppression circuit,multi-stage power protection design,strong anti-interference performance for industrial cabinet environment.

Feature

PD-242/A is obsolete KEBA series spare part.Typical failures include power output loss,overcurrent protection trip,connector oxidation.Check module circuit and gold fingers before replacement.This module must match Kemro K2 series rack system,direct substitution without inspection is not recommended.

Diagnostic

When overcurrent,overvoltage or internal hardware fault occurs,the module triggers protection and lights up fault LED.

Built‑in function:Rack backplane power distribution,power abnormality protection,power status monitoring,self-diagnosis and fault alarm,used as KEBA Kemro K2 series power distribution module spare replacement.

Product Brief

PD-242/A is KEBA old industrial rack power distribution module for injection molding and die-casting machine automation equipment.Confirm compatibility with Kemro K2 backplane before ordering.ESD protection required during handling and installation.
