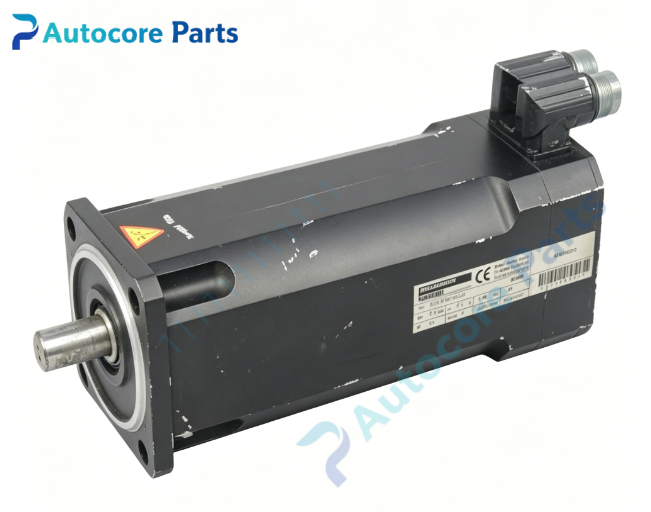

Kollmorgen 6SM57M-3.000 Servo Motor Spare Part

Technical Specifications

Model:6SM57M-3.000

Brand:Kollmorgen

Part No:6SM57M-3.000

Product type:Permanent magnet synchronous servo motor

Rated power:1.9kW

Rated speed:3000rpm

Continuous torque:8.0Nm

Continuous current:4.0A

Peak current:17A

Rated voltage:400/480V AC

Protection class:IP64

Dimension:210mm110mm130mm

Weight:7.2kg

Feedback interface:Resolver

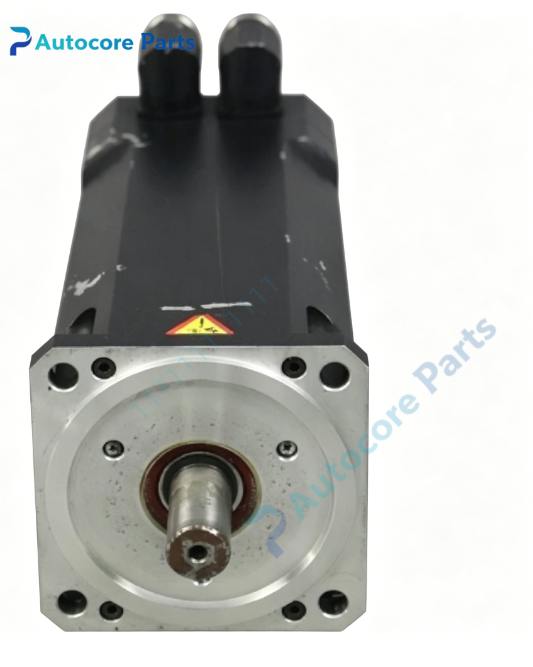

Mounting:IEC flange mounting

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

6SM57M-3.000 belongs to Kollmorgen Seidel 6SM servo motor family,matched with Kollmorgen ServoStar series servo amplifiers,widely used in CNC machine tools,metal cutting,packaging machinery and high dynamic positioning automation systems.This is discontinued industrial spare part for equipment overhaul and maintenance.

Function

6SM57M-3.000 is three-phase brushless synchronous servo motor with neodymium permanent magnet rotor.It delivers high dynamic response and high torque density.Resolver feedback provides reliable position and speed signal for closed-loop motion control.Suitable for continuous operation and frequent start-stop working condition,optional 24V DC holding brake version.

Installation

Install 6SM57M-3.000 via standard IEC flange mounting.Connect motor power cable and resolver feedback cable.Fasten coupling and mechanical connection,complete shielding and grounding inspection before power-on test.

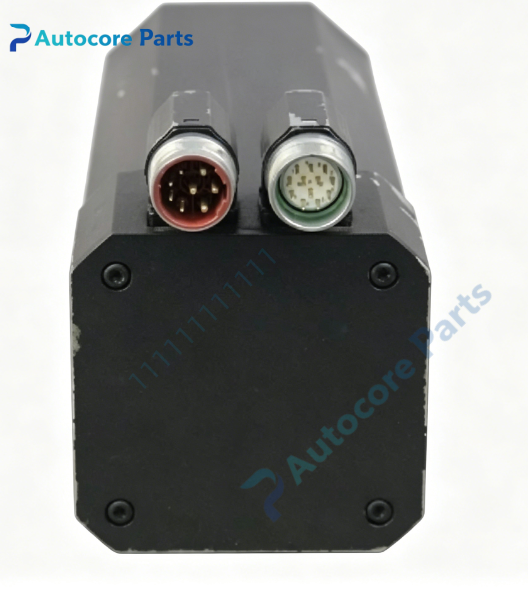

Interface

‑3 phase motor power connector

‑Resolver feedback connector

‑Optional brake terminal

‑Shield grounding terminal

Feature

6SM57M-3.000 is obsolete Kollmorgen Seidel spare part.Typical faults:winding insulation aging, resolver damage, bearing wear, shaft seal leakage,connector corrosion.Test winding resistance,insulation resistance and resolver signal before replacement.

Diagnostic

Motor faults will trigger overcurrent,overload or position deviation alarm;motor no rotation,abnormal noise,axis vibration,positioning inaccuracy.

Built‑in function:Convert electrical signal into mechanical torque,realize high precision speed and position closed-loop control,as Kollmorgen legacy synchronous servo motor spare replacement.

Product Brief

6SM57M-3.000 is Kollmorgen Seidel 6SM series synchronous servo motor,1.9kW,3000rpm,IP64 protection,matched with ServoStar servo drives for legacy CNC and high dynamic automation systems.Confirm power rating,feedback type and brake option before ordering.ESD protection required during handling and installation.
