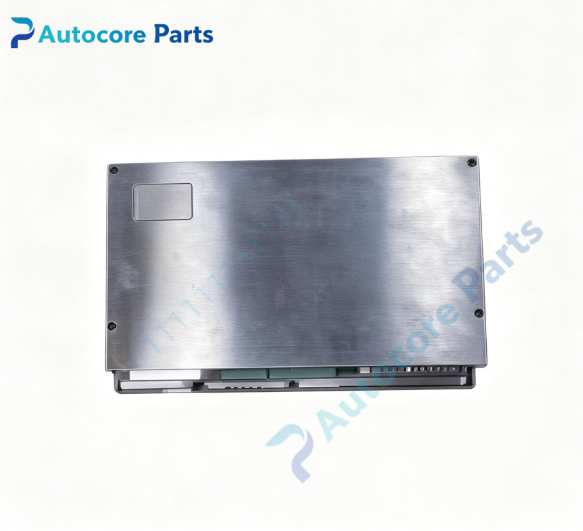

Rexroth BTV06.1HN-RS-FW Miniature Operator Control Panel Spare Part

Technical Specifications

Model:BTV06.1HN-RS-FW

Brand:Rexroth

Product type:Miniature operator control HMI panel

Power supply:24V DC

Display:Graphic LCD,240×128 pixel

Keyboard:Standard integrated membrane keypad

Communication interface:RS232,RS422,RS485

Weight:2.1kg

Dimension:318mm203mm51mm

Mounting:Panel cutout mounting

Front protection:IP65

Rear housing protection:IP20

Operating temperature:0~45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

BTV06.1HN-RS-FW belongs to Rexroth Indramat BTV06 compact operator panel family,matching Indramat System200 motion control and CNC systems,widely used for machine tools,handling and packaging automation local operation.This is a legacy spare part for industrial equipment maintenance replacement.

Function

BTV06.1HN-RS-FW is a compact machine operator panel with graphic LCD and standard membrane keypad.It supports manual axis jog,mode switching,parameter configuration,simple program editing,machine status and alarm message display.It communicates with main controller via multi-protocol serial bus to transmit operation commands and real-time machine data.Firmware is factory assigned and needs separate ordering.

Installation

Install BTV06.1HN-RS-FW on cabinet panel cutout.Tighten mounting clamps.Connect 24V DC power and serial communication cable according to wiring diagram.Check bus shielding and connector contact before power-on commissioning.

Interface

‑24V DC power terminal

‑Multi-protocol serial communication port RS232/RS422/RS485

‑Keypad internal signal terminal

‑Shield grounding terminal

Circuit feature

Built-in graphic display driver and keyboard scanning circuit,optocoupler isolation for serial communication,strong anti-interference,stable multi-protocol serial data transmission,suitable for compact machine cabinet installation.

Feature

BTV06.1HN-RS-FW is obsolete Rexroth spare part.Typical faults:LCD display failure,membrane keypad aging,serial communication port damage,internal power circuit fault.Inspect display function and serial communication before replacement.This panel must match original Indramat system firmware,direct substitution without inspection is not recommended.

Diagnostic

When panel fails,LCD screen no display,keypad input invalid,system triggers serial communication timeout alarm.

Built‑in function:Manual axis jogging,parameter configuration,machine status and alarm display,simple program operation,used as Rexroth Indramat motion control system spare replacement.

Product Brief

BTV06.1HN-RS-FW is Rexroth Indramat BTV06 series miniature graphic operator panel with multi-protocol serial interface.Verify system firmware and serial bus configuration before ordering.ESD protection required during handling and installation.
