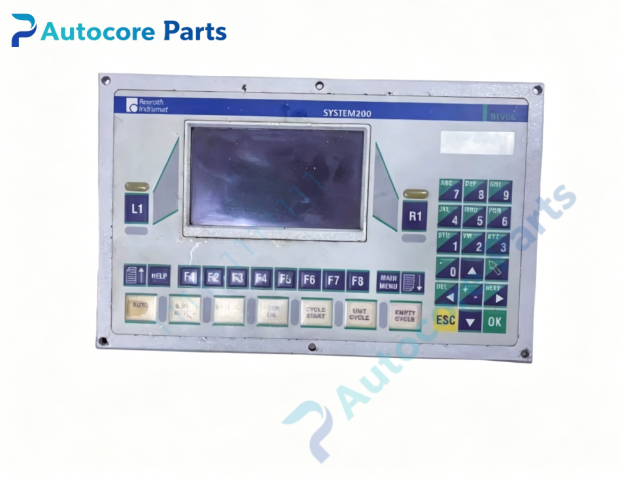

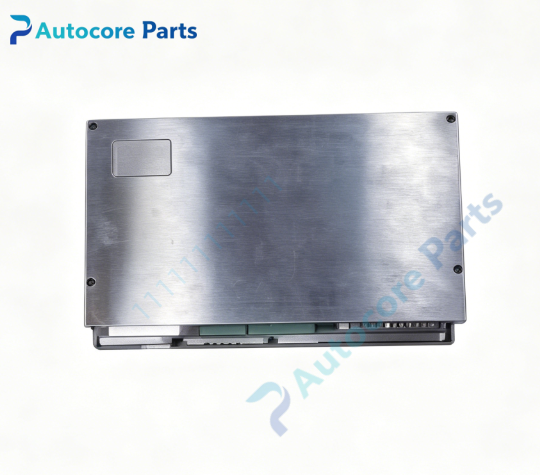

Rexroth BTV15.2CA-28B-320-B-FW Visualization Terminal Spare Part

Technical Specifications

Model:BTV15.2CA-28B-320-B-FW

Brand:Rexroth

Product type:CNC visualization HMI terminal

Input voltage:24V DC

Display:8.2 inch DSTN color display,640×480 pixel

Processor:5x86 266MHz

Memory:128MB RAM,3GB HDD

Communication:10 Base-T Ethernet

Keyboard:Integrated keypad with 8 writeable machine function keys

Mounting:Panel cutout mounting

Front panel protection:IP65

Rear housing protection:IP20

Operating temperature:+5~+45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max operation altitude:1500m

Certification:CE

System compatibility

BTV15.2CA-28B-320-B-FW belongs to Rexroth Indramat BTV15 visualization terminal family,matching Indramat System200 CNC and motion control systems,widely used for CNC machine tools and heavy processing equipment operator interface.This is a legacy spare part for industrial equipment maintenance replacement.

Function

BTV15.2CA-28B-320-B-FW is an integrated industrial visualization terminal.It integrates color display,hardware keyboard and industrial computer unit for CNC program editing,manual axis jog,operation mode selection,parameter configuration,feed and spindle override adjustment,real-time machine status and alarm message display.It communicates with main CNC controller via Ethernet bus to transmit operation commands and feedback data.

Installation

Install BTV15.2CA-28B-320-B-FW on cabinet panel cutout.Tighten mounting fixtures.Connect 24V DC power and Ethernet communication cable according to wiring diagram.Check cable shielding and connector tightness before power-on commissioning.

Interface

‑24V DC power input terminal

‑10 Base-T Ethernet port

‑Keyboard internal signal terminal

‑Shield grounding terminal

Circuit feature

Industrial embedded computer architecture,color display drive circuit,hardware keyboard scanning circuit,stable Ethernet communication,strong anti-interference,suitable for harsh machine workshop environment.

Feature

BTV15.2CA-28B-320-B-FW is obsolete Rexroth spare part.Typical faults:display backlight failure,membrane key aging,Ethernet port damage,internal hard disk or power board failure.Inspect display and network communication link before replacement.This visualization terminal must match original Indramat CNC system firmware,direct substitution without inspection is not recommended.

Diagnostic

When terminal fails,HMI screen blank,keyboard input no response,system triggers Ethernet communication timeout alarm.

Built‑in function:CNC program editing,manual axis jogging,parameter configuration,machine status & alarm display,production operation control,used as Rexroth Indramat CNC system spare replacement.

Product Brief

BTV15.2CA-28B-320-B-FW is Rexroth Indramat BTV15 series 8.2-inch color visualization HMI terminal with embedded industrial computer and function keys.Verify CNC system firmware and Ethernet configuration before ordering.ESD protection required during handling and installation.
