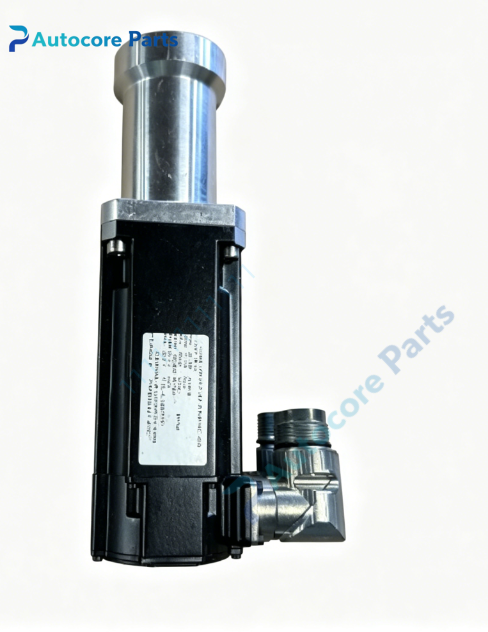

Kollmorgen AKM23D-ANBNC-00 Servo Motor Spare Part

Technical Specifications

Model:AKM23D-ANBNC-00

Brand:Kollmorgen

Part No:AKM23D-ANBNC-00

Product type:Permanent magnet AC synchronous servo motor

Rated power:0.77kW

Rated speed:8000rpm

Continuous torque:1.37Nm

Peak torque:3.84Nm

Max DC bus voltage:320V DC

Protection class:IP54

Dimension:148mm70mm80mm

Weight:1.72kg

Feedback interface:SFD smart digital feedback device

Mounting:70mm IEC flange mounting

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE,UL

System compatibility

AKM23D-ANBNC-00 belongs to Kollmorgen AKM servo motor family,matched with Kollmorgen AKD series servo drives,widely used in packaging machinery,cutting equipment,material handling and medium-load multi-axis automation systems.This is industrial spare part for equipment overhaul and maintenance.

Function

AKM23D-ANBNC-00 is medium frame AKM synchronous servo motor.It features ultra-low cogging torque and smooth rotation performance.SFD smart feedback supports automatic motor identification when paired with AKD servo drives,high precision position detection.High energy density rare-earth permanent magnet rotor delivers excellent dynamic response,suitable for medium-load high-speed positioning applications,this model has built-in 24V DC holding brake.

Installation

Install AKM23D-ANBNC-00 via IEC flange mounting on machine fixture.Connect motor power cable,SFD feedback cable and brake power cable.Tighten mounting bolts and connector locking rings,separate power and signal wiring,complete shielding grounding before power-on test.

Interface

‑3 phase motor power connector

‑SFD digital feedback connector

‑24V DC brake terminal

‑Shield grounding terminal

Feature

AKM23D-ANBNC-00 Kollmorgen servo motor.Typical faults:winding insulation aging,SFD feedback element damage,bearing wear,brake failure,connector pin oxidation.Test winding resistance,insulation resistance and feedback signal before replacement.

Diagnostic

Motor faults will trigger overload,overcurrent or feedback loss alarm;motor jitter,position tracking error,brake release failure,motor fails to start,intermittent positioning deviation.

Built‑in function:Convert electrical command into precise mechanical torque,realize high accuracy speed and position closed-loop control,as Kollmorgen AKM series medium frame servo motor spare replacement.

Product Brief

AKM23D-ANBNC-00 is Kollmorgen AKM 0.77kW servo motor,70mm flange,SFD smart feedback,with 24V holding brake,compatible with AKD servo drives for medium-load automation equipment maintenance.Confirm feedback type and shaft specification before ordering.ESD protection required during handling and installation.
