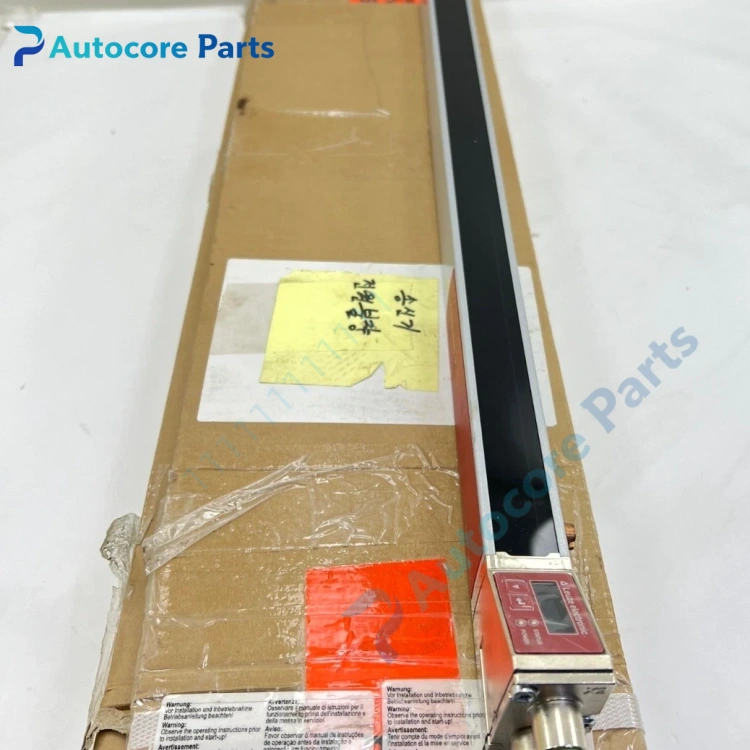

Leuze CML720I-R05-480 Measuring Light Curtain Receiver

Feature & Principle

It matches the corresponding transmitter to form an optical measurement array. It detects the blocked beam quantity and position, transmits measurement data via CANopen bus to PLC. It realizes part width, height detection, counting and edge positioning, supports high-speed object detection and transparent object identification.

Specifications

Model: CML720I-R05-480 Brand: Leuze Series: CML720i Beam spacing: 5 mm Measuring field height: 480 mm Interface: CANopen Supply voltage: 24VDC Connection: M12 connector Housing: Metal shell Application: Dimension inspection, edge positioning, counting Certification: CE

Components & Diagnostics

Receiver housing, optical receiving array, signal processing board, CAN communication chip, status LED, M12 connector. Common faults: lens contamination, beam loss, communication timeout, abnormal indicator, circuit damage.

Product Brief

CML720I-R05-480 measuring light curtain receiver, Leuze measurement sensor spare widely used for packaging, logistics and automotive part inspection replacement.
