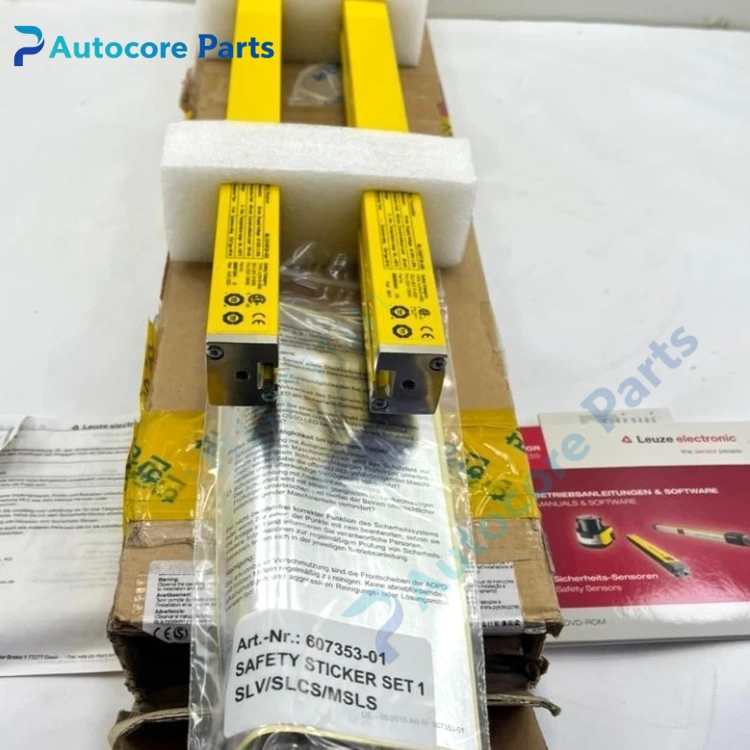

Leuze MLC500T30-450 Safety Light Curtain Transmitter Unit

Feature & Principle

This safety light curtain transmitter sends pulsed infrared beams to the paired receiver. If any beam is interrupted, the safety output will switch off and trigger machine emergency stop. It supports optical synchronization and meets Type4, SIL3, PL e safety standards for hand protection applications.

Specifications

Model: MLC500T30-450 Brand: Leuze Series: MLC500 Type: Transmitter Resolution: 30 mm Protective height: 450 mm Max operating distance: 10 m Safety rating: Type4, SIL3, PL e Power supply: 24VDC Connector: M12 Protection: IP67 Certification: CE

Components & Diagnostics

Infrared LED array, drive circuit, status LED indicator, M12 connector, extruded aluminum housing. Common faults: beam misalignment, lens dirt, power supply failure, internal emitter circuit damage.

Product Brief

MLC500T30-450 light curtain emitter, Leuze machine safety spare widely used for press, packaging automation and robot workstation hand protection.
