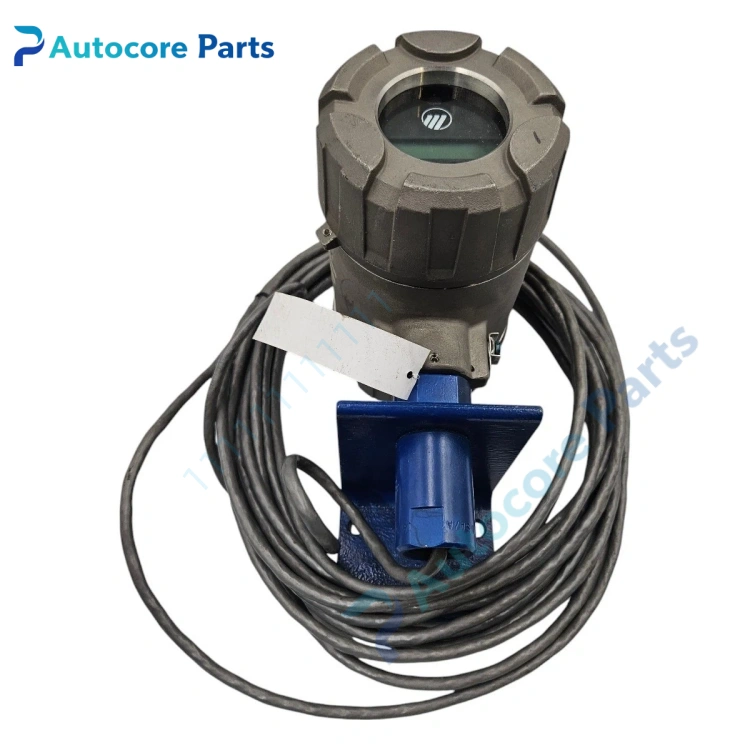

Magnetrol TA2-A1B0-142 Thermal Dispersion Switch

Feature & Principle

It is a thermal dispersion type point level / low flow switch of Magnetrol TA2 series. It uses two RTD sensing elements, one heated and one reference. The temperature difference changes with medium coverage or flow velocity. The internal circuit converts temperature difference signal to relay switch output for alarm or interlock. It has no moving parts, good resistance to viscous, dirty medium, widely used for tank high/low level, liquid-liquid interface and minimum flow protection.

Specifications

Model: TA2-A1B0-142 Brand: Magnetrol Measurement principle: Thermal dispersion Power supply: 24 VDC Output: Relay contact output Process connection: Thread / flange optional Wetted material: 316L stainless steel optional Protection: IP66 Certification: ATEX, IECEx, FM explosion-proof optional Application: Petrochemical, refinery, power plant, process tank, pipeline minimum flow protection

Components & Diagnostics

Dual RTD probe assembly, signal conditioning board, relay unit, housing, cable entry gland. Common faults: probe fouling, temperature drift, relay failure, power loss, incorrect calibration.

Product Brief

TA2-A1B0-142 thermal dispersion switch, Magnetrol point level and low flow detection spare widely used for process tank and pipeline overhaul and replacement.
