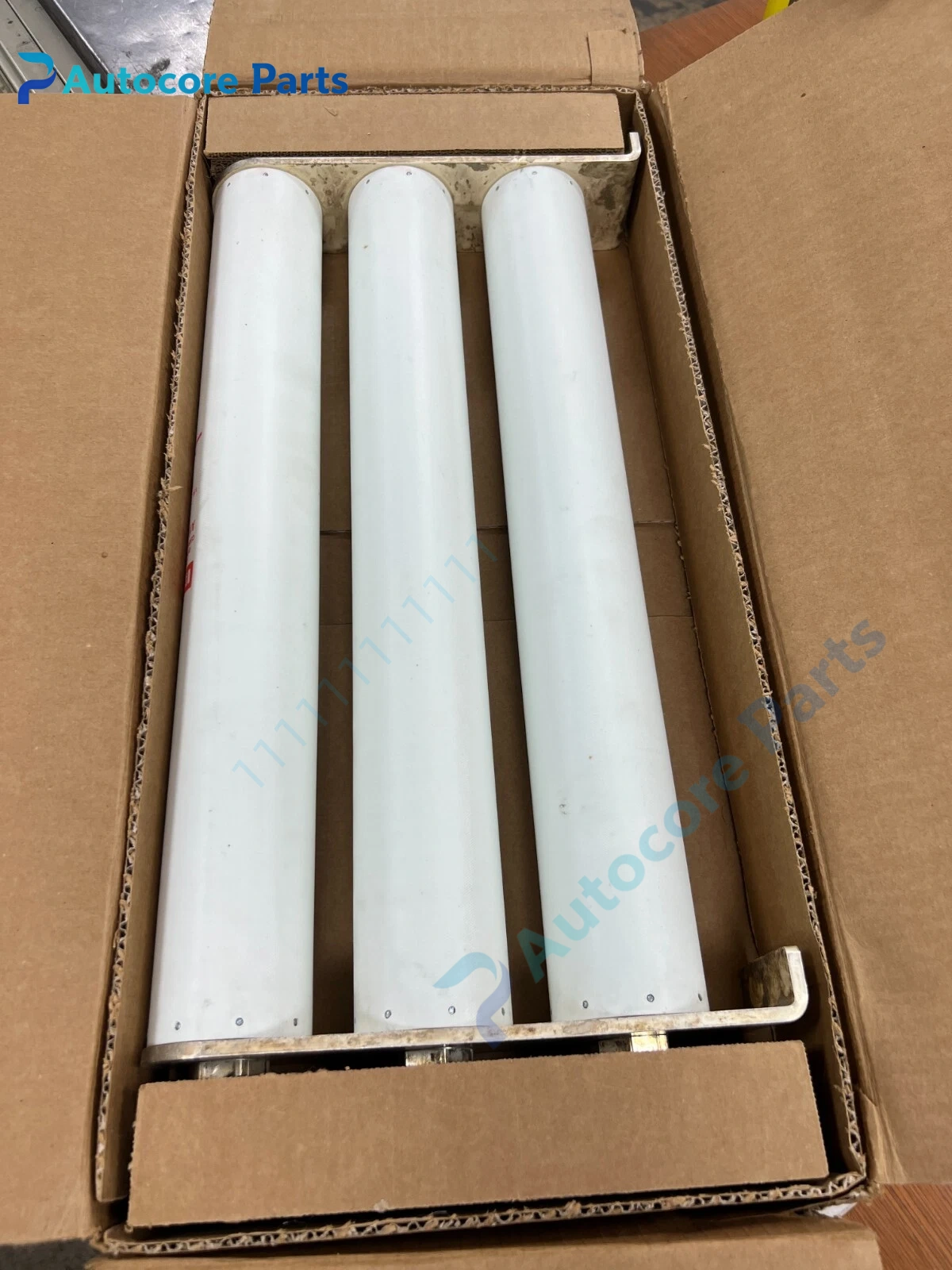

Mersen A155C3D0R0-150E MV Fuse Unit

Module Feature

A155C3D0R0-150E belongs to Mersen Amp-Trap CL-14 series medium voltage current limiting fuse. It is Class E rated ferrule type fuse with built-in visual blow indicator. The fuse element is specially designed to withstand transformer inrush current, provides reliable short circuit and overload protection for 12kV~15.5kV distribution transformers and switchgear circuits. It adopts poly fiber tube body, high interrupt capacity up to 50kA. It is installed by spring reinforced clip holder, easy for field inspection and replacement. Widely used in power distribution cabinet, substation transformer protection and industrial medium voltage power system.

Working principle

Under normal load condition, the fuse element remains conductive. When overload or short-circuit fault occurs, internal fuse element melts rapidly and generates arc. The quartz sand filler quenches the arc and cuts off fault current within extremely short time. The visual indicator pops out after fuse blow, so maintenance staff can quickly identify failed fuse without power test instrument.

Onboard components

Fuse element, quartz sand arc-quenching filler, fiber reinforced fuse barrel, ferrule end caps, visual indicator mechanism.

LED indicators

No LED indicators. Fuse status is shown by mechanical visual indicator.

Hardware self-diagnosis

Visual indicator inspection, insulation resistance test, continuity check.

Programming software

No configuration software required.

Electrical & Process Parameters

Model:A155C3D0R0-150E Brand:Mersen Device type:Medium Voltage Current Limiting Fuse Rated voltage:15500VAC Rated current:150A Interrupt rating:50kA Class:E Mount style:Ferrule mount Function:Transformer & distribution circuit overload, short circuit protection

Mechanical & Structure

Mounting:Spring clip ferrule mount Protection class:Indoor service Housing:Poly composite tube, metal ferrule terminals

Environmental

Operating temperature:-40℃ ~ +85℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:UL, CSA compliant Status: Mersen original Amp-Trap medium voltage fuse

Installation

Cut off medium voltage power and confirm zero energy state before operation. Install Mersen A155C3D0R0-150E fuse into matched spring clip holder. Check indicator position and secure connection. Close cabinet and complete power recovery after insulation test.

Interface

Top and bottom ferrule contact terminals, visual indicator window.

Diagnostic

Indicator popped: fuse blown due to overload or short circuit. Intermittent heating: loose ferrule contact. Insulation failure: fuse barrel surface contamination or damage.

Product Brief

Mersen A155C3D0R0-150E Amp-Trap CL-14 15.5kV 150A ferrule mount medium voltage fuse, visual blow indicator, for distribution transformer medium voltage protection.
