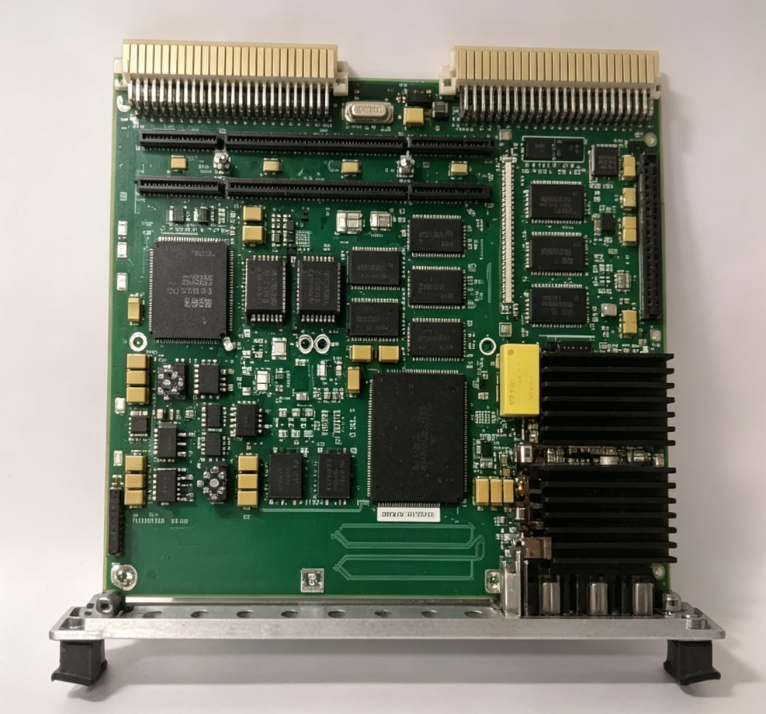

Motorola MVME1604-012 VMEbus Single Board Computer

Technical Specifications

Model:MVME1604-012

Brand:Motorola

Part No:MVME1604-012

Product type:VMEbus Single Board Computer

CPU:PowerPC 604

Clock:100MHz

Cache:256KB L2 cache

Memory:128MB DRAM,4MB Flash memory,8KB NVRAM with battery backup

Bus:VMEbus A32/D32,A24/D16,A16

Form Factor:6U Eurocard

Power supply:+5V DC

Power consumption:26W

Dimension:233mm160mm20mm

Weight:0.98kg

Interface:2×RS232 serial port,SCSI interface,10M Ethernet,VGA graphics port,PS/2 keyboard and mouse,VME backplane connector,watchdog timer,RTC clock

Operating temperature:0℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5~90% non-condensing

Certification:CE

System compatibility

MVME1604-012 belongs to Motorola MVME1600 VME series single board computer.It can work with standard VME backplane and matched VME I/O modules,widely used in old industrial control,test measurement and semiconductor equipment.It is spare part for legacy equipment overhaul.

Function

MVME1604-012 is a 6U VME single board computer based on PowerPC 604 processor with 256KB L2 cache.It supports embedded real-time operating system such as VxWorks,performs control logic operation and field data acquisition.It communicates with peripheral modules via VME bus,serial ports,SCSI and onboard Ethernet.It integrates VGA graphics and PS/2 keyboard mouse interface,onboard watchdog timer and RTC improve system stability.It adopts mezzanine processor module design,PowerPC604 core provides higher performance compared with MVME1603 series.

Installation

Insert MVME1604-012 into standard 6U VME chassis slot,lock the front panel.Fix the board,connect serial cable,SCSI cable,Ethernet cable and VME backplane.Take ESD protection before power-on.

Interface

‑VME backplane connector

‑Dual RS232 serial port

‑SCSI interface

‑10M Ethernet port

‑VGA graphics port

‑PS/2 keyboard and mouse port

‑Watchdog timer

‑RTC battery backup circuit

‑+5V power terminal

Feature

MVME1604-012 classic industrial SBC.Typical faults:gold finger oxidation,RAM chip failure,serial transceiver damage,electrolytic capacitor aging,battery leakage,Ethernet controller failure.Clean gold finger and test memory before replacement.

Diagnostic

Fault phenomenon:no power on,boot failure,VME bus communication error,serial port no data output,SCSI access failure,Ethernet link loss.Check VME backplane power supply,clean gold finger,test RAM and communication circuit.

Product Brief

MVME1604-012 is Motorola 6U VME single board computer with PowerPC 604 100MHz CPU,256KB L2 cache,128MB DRAM and 4MB Flash,onboard VGA graphics,Ethernet and SCSI.It is high-performance version of MVME1604 series.Mainly used for maintenance and replacement of old VME industrial control equipment.ESD protection must be followed during handling.
