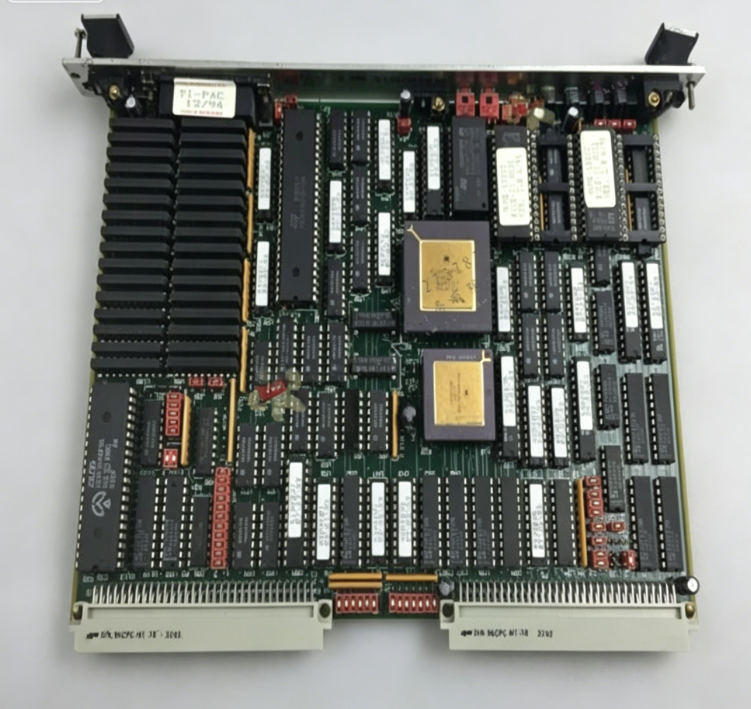

Motorola MVME1604-013 VMEbus Single Board Computer

Technical Specifications

Model:MVME1604-013

Brand:Motorola

Part No:MVME1604-013

Product type:VMEbus Single Board Computer

CPU:PowerPC 604

Clock:100MHz

Cache:256KB L2 cache

Memory:32MB DRAM,4MB Flash memory,8KB NVRAM with battery backup

Bus:VMEbus A32/D32,A24/D16,A16

Form Factor:6U Eurocard

Power supply:+5V DC

Power consumption:24W

Dimension:233mm160mm20mm

Weight:0.94kg

Interface:2×RS232 serial port,SCSI interface,10M Ethernet,VGA graphics port,PS/2 keyboard and mouse,VME backplane connector,watchdog timer,RTC clock

Operating temperature:0℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5~90% non-condensing

Certification:CE

System compatibility

MVME1604-013 belongs to Motorola MVME1600 VME series single board computer.It can work with standard VME backplane and matched VME I/O modules,widely used in old industrial control,test measurement and semiconductor equipment.It is spare part for legacy equipment overhaul.

Function

MVME1604-013 is a 6U VME single board computer based on PowerPC 604 processor with 256KB L2 cache.It supports embedded real-time operating system such as VxWorks,performs control logic operation and field data acquisition.It communicates with peripheral modules via VME bus,serial ports,SCSI and onboard Ethernet.It integrates VGA graphics and PS/2 keyboard mouse interface,onboard watchdog timer and RTC improve system stability.It adopts mezzanine processor module design,compared with MVME1604-012,it reduces onboard DRAM capacity.

Installation

Insert MVME1604-013 into standard 6U VME chassis slot,lock the front panel.Fix the board,connect serial cable,SCSI cable,Ethernet cable and VME backplane.Take ESD protection before power-on.

Interface

‑VME backplane connector

‑Dual RS232 serial port

‑SCSI interface

‑10M Ethernet port

‑VGA graphics port

‑PS/2 keyboard and mouse port

‑Watchdog timer

‑RTC battery backup circuit

‑+5V power terminal

Feature

MVME1604-013 classic industrial SBC.Typical faults:gold finger oxidation,RAM chip failure,serial transceiver damage,electrolytic capacitor aging,battery leakage,Ethernet controller failure.Clean gold finger and test memory before replacement.

Diagnostic

Fault phenomenon:no power on,boot failure,VME bus communication error,serial port no data output,SCSI access failure,Ethernet link loss.Check VME backplane power supply,clean gold finger,test RAM and communication circuit.

Product Brief

MVME1604-013 is Motorola 6U VME single board computer with PowerPC 604 100MHz CPU,256KB L2 cache,32MB DRAM and 4MB Flash,onboard VGA graphics,Ethernet and SCSI.It is low memory variant of MVME1604 series.Mainly used for maintenance and replacement of old VME industrial control equipment.ESD protection must be followed during handling.
