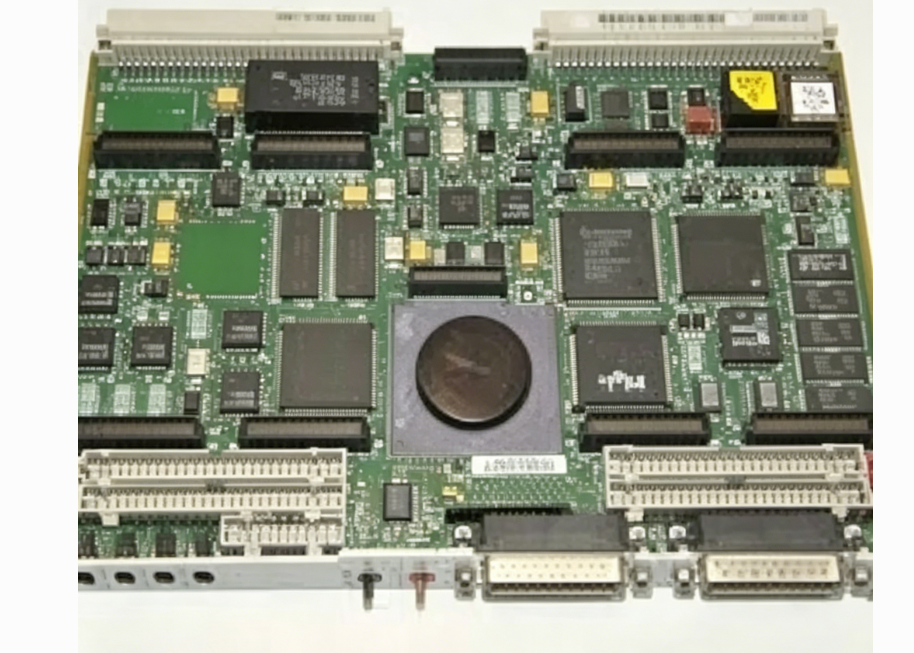

Motorola MVME162-001 VMEbus Single Board Computer

Technical Specifications

Model:MVME162-001

Brand:Motorola

Part No:MVME162-001

Product type:VMEbus Single Board Computer

CPU:MC68LC040

Clock:25MHz

Cache:8KB internal cache,with MMU,no FPU

Memory:1MB parity DRAM,512KB battery-backed SRAM,8KB NVRAM with RTC clock

Bus:VMEbus A32/D32,A24/D16,A16

Form Factor:6U Eurocard

Power supply:+5V DC,typical 17.5W

Dimension:233mm160mm20mm

Weight:0.84kg

Interface:2×RS232 serial port,4×IndustryPack expansion slots,VME backplane connector,watchdog timer,RTC clock

Operating temperature:0℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5~90% non-condensing

Certification:CE

System compatibility

MVME162-001 belongs to Motorola MVME162 VME series single board computer.It can work with standard VME backplane and matched VME I/O modules,widely used in old industrial control,test measurement and semiconductor equipment.It is spare part for legacy equipment overhaul.

Function

MVME162-001 is a 6U VME single board computer based on MC68LC040 processor,without floating point unit.It supports embedded real-time operating system such as VxWorks and RTEMS,performs control logic operation and field data acquisition.It communicates with peripheral modules via VME bus and serial ports.It integrates four IndustryPack expansion slots for adding optional function modules,onboard watchdog timer and RTC improve system stability.It is the base configuration version of MVME162 series.

Installation

Insert MVME162-001 into standard 6U VME chassis slot,lock the front panel.Fix the board,connect serial cable and VME backplane.Take ESD protection before power-on.

Interface

‑VME backplane connector

‑Dual RS232 serial port

‑Four IndustryPack expansion slots

‑Watchdog timer

‑RTC battery backup circuit

‑+5V power terminal

Feature

MVME162-001 classic industrial SBC.Typical faults:gold finger oxidation,RAM chip failure,serial transceiver damage,electrolytic capacitor aging,battery leakage.Clean gold finger and test memory before replacement.

Diagnostic

Fault phenomenon:no power on,boot failure,VME bus communication error,serial port no data output.Check VME backplane power supply,clean gold finger,test RAM and communication circuit.

Product Brief

MVME162-001 is Motorola 6U VME single board computer with MC68LC040 25MHz CPU,1MB DRAM and 512KB battery-backed SRAM,four IndustryPack expansion shturl.c is basic model of MVME162 series without SCSI and Ethernet onboard.Mainly used for maintenance and replacement of old VME industrial control equipment.ESD protection must be followed during handling.
