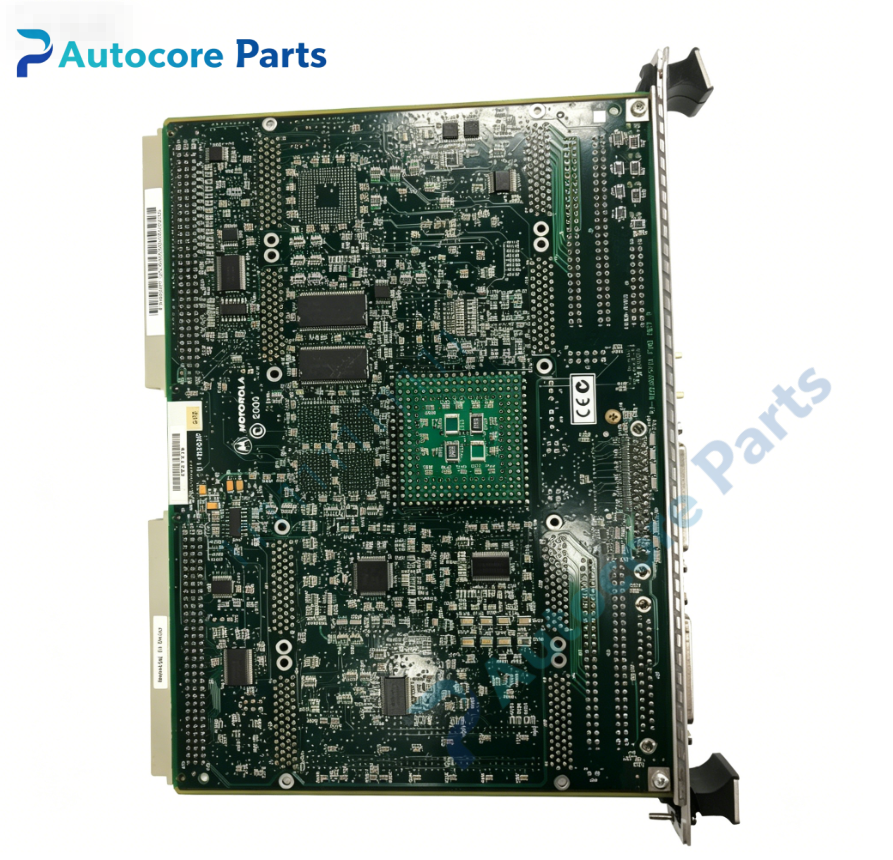

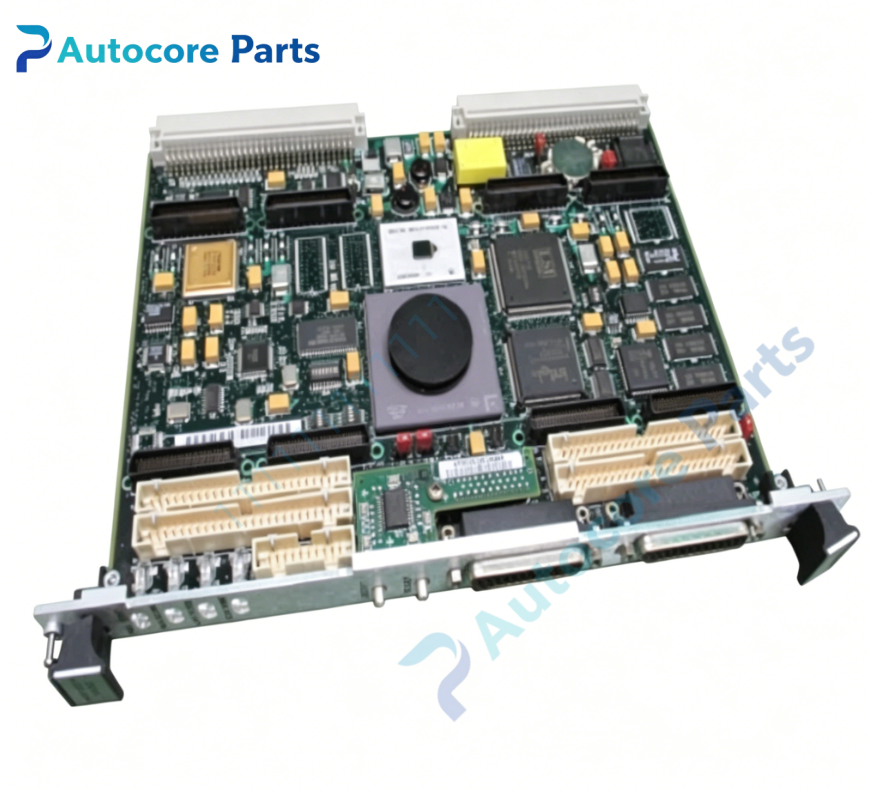

Motorola VME162PA-344SE 01-W3528F60A VMEbus Single Board Computer

Technical Specifications

Model:VME162PA-344SE 01-W3528F60A

Brand:Motorola

Part No:01-W3528F60A

Product type:VMEbus Single Board Computer

CPU:MC68040

Clock:25MHz

Cache:8KB integrated cache

Memory:8MB DRAM,512KB battery-backed SRAM,1MB Flash memory

Bus:VMEbus A32/D32,A24/D16,A16,master/slave with DMA

Form Factor:6U Eurocard

Power supply:+5V DC,typical 3.5A

Dimension:233mm160mm17mm

Weight:0.90kg

Interface:2×RS232 serial port,10M Ethernet port,SCSI-2 interface,watchdog timer

Operating temperature:0℃ ~ +55℃ (forced air cooling)

Storage temperature:-40℃ ~ +85℃

Relative humidity:5~90% non-condensing

Certification:CE

System compatibility

VME162PA-344SE 01-W3528F60A belongs to Motorola MVME162PA VME series single board computer.It can work with standard VME backplane and matched VME I/O modules,widely used in old industrial control,test measurement and semiconductor equipment.It is spare part for legacy equipment overhaul.

Function

VME162PA-344SE 01-W3528F60A is a 6U VME single board computer based on MC68040 processor.It supports embedded real-time operating system such as VxWorks and RTEMS,performs control logic operation and field data acquisition.It communicates with peripheral modules via VME bus,serial ports,Ethernet and SCSI.It has onboard watchdog timer and real-time clock for reliable long-running embedded control.This variant adopts 25MHz MC68040 CPU,SE hardware revision.

Installation

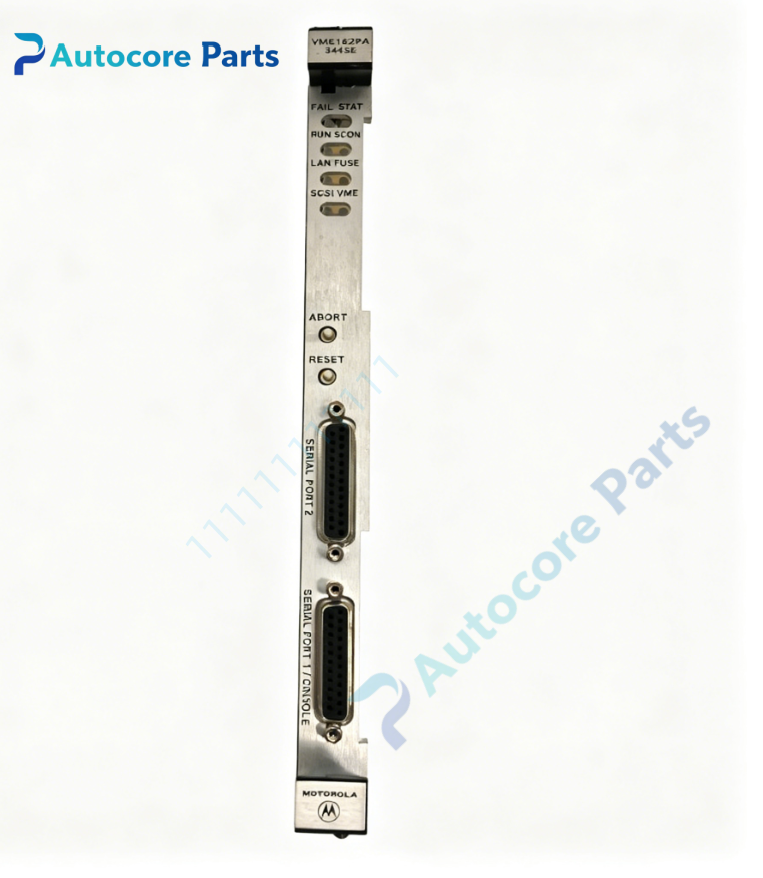

Insert VME162PA-344SE 01-W3528F60A into standard 6U VME chassis slot,lock the front panel.Fix the board,connect serial cable,Ethernet cable,SCSI cable and VME backplane.Take ESD protection before power-on.

Interface

‑VME backplane connector

‑Dual RS232 serial port

‑10M Ethernet port

‑SCSI-2 interface

‑Watchdog timer

‑RTC battery backup circuit

‑+5V power terminal

Feature

VME162PA-344SE 01-W3528F60A classic industrial SBC.Typical faults:gold finger oxidation,DRAM chip failure,serial transceiver damage,battery leakage.Clean gold finger and test memory before replacement.

Diagnostic

Fault phenomenon:no power on,boot failure,VME bus communication error,serial port no data output,Ethernet link loss,SCSI communication failure.Check VME backplane power supply,clean gold finger,test DRAM and communication circuit.

Product Brief

VME162PA-344SE 01-W3528F60A is Motorola 6U VME single board computer with MC68040 25MHz CPU,8MB DRAM,with dual serial ports,10M Ethernet and SCSI-2.It is SE hardware version,mainly used for maintenance and replacement of old VME industrial control equipment.ESD protection must be followed during handling.
