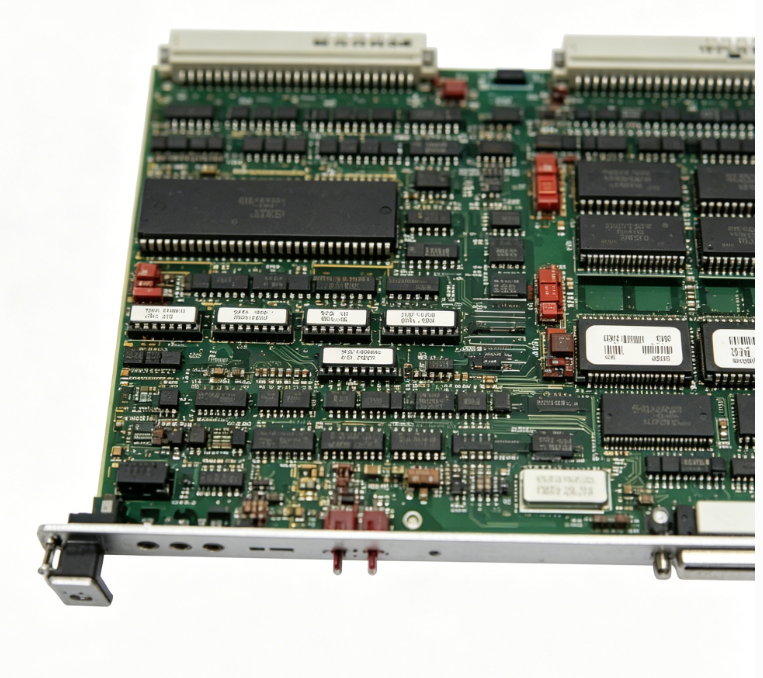

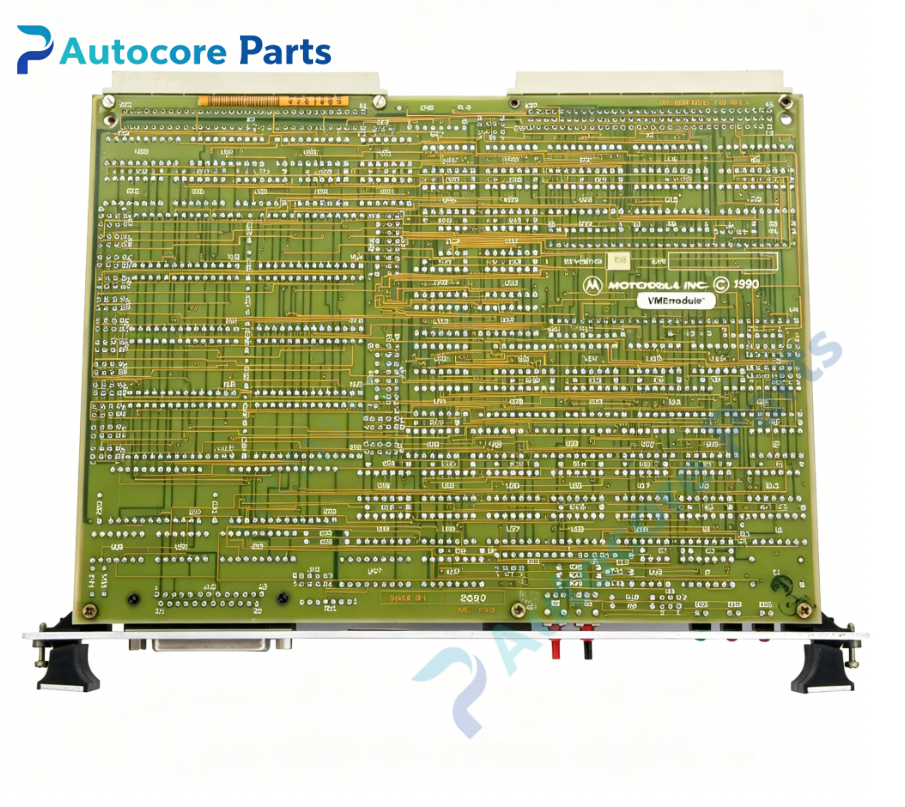

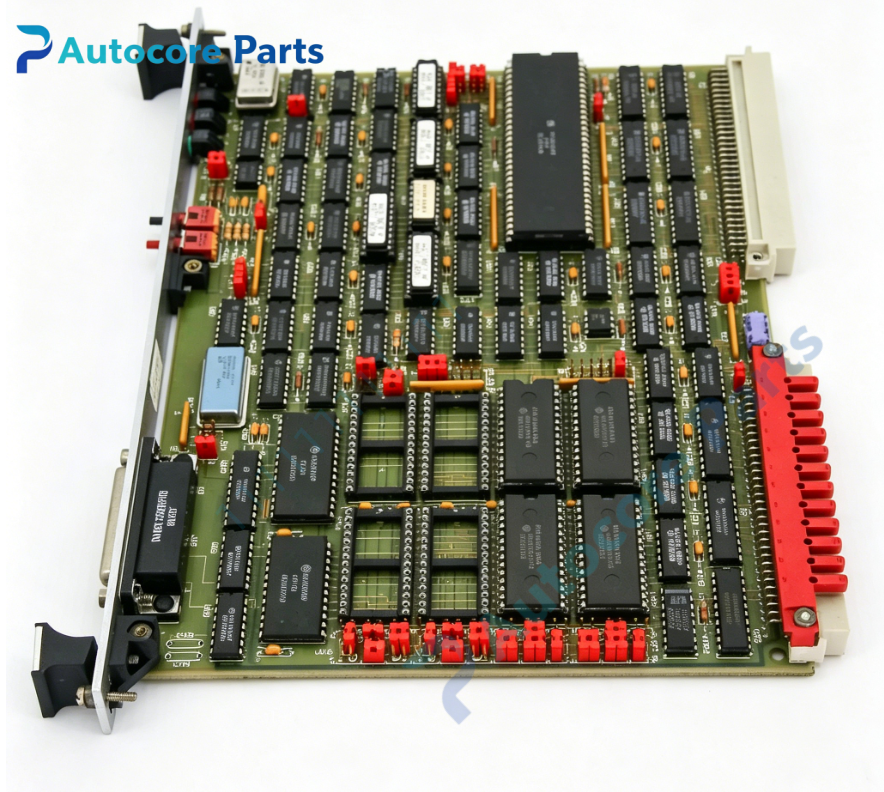

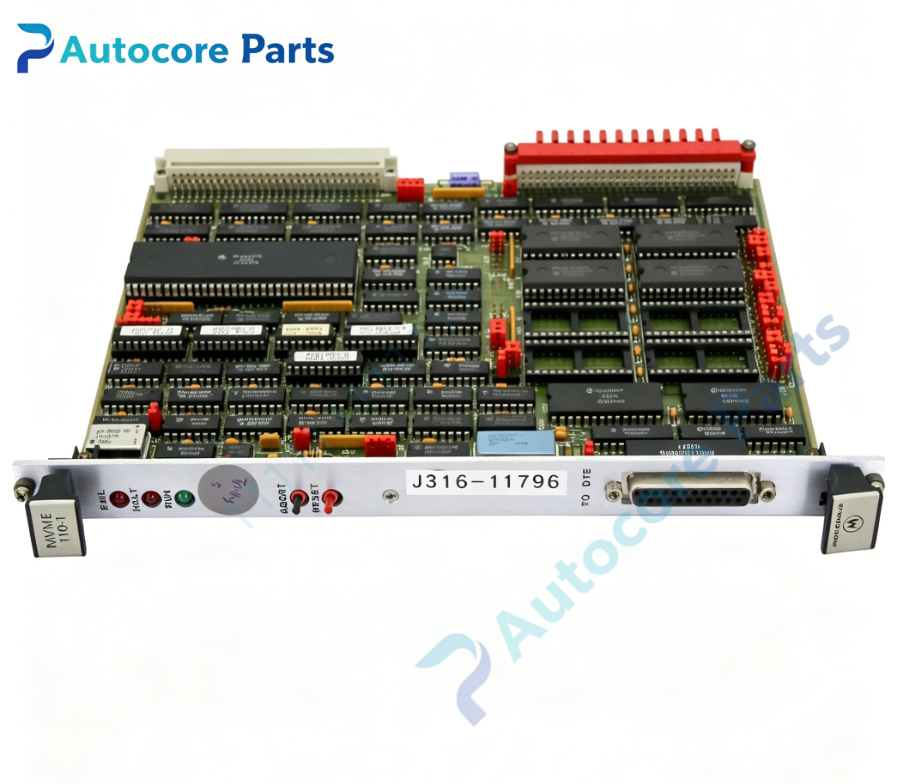

Motorola MVME110-1 VMEbus Single Board Computer

Technical Specifications

Model:MVME110-1

Brand:Motorola

Part No:MVME110-1

Product type:VMEbus Single Board Computer

CPU:MC68010

Clock:10MHz

Cache:Integrated on-chip cache

Memory:512KB zero-wait-state RAM,battery-backed clock/calendar,EPROM sockets

Bus:VMEbus A16/A24,master/slave with DMA

Form Factor:3U Eurocard

Power supply:+5V DC,typical 0.6A

Dimension:100mm160mm17mm

Weight:0.60kg

Interface:1×RS232 serial port,SCSI bus interface,watchdog timer

Operating temperature:0℃ ~ +55℃ (forced air cooling)

Storage temperature:-40℃ ~ +85℃

Relative humidity:5~90% non-condensing

Certification:CE

System compatibility

MVME110-1 belongs to Motorola MVME110 VME series single board computer.It can work with standard VME backplane and matched VME I/O modules,widely used in old industrial control,test measurement and semiconductor equipment.It is spare part for legacy equipment overhaul.

Function

MVME110-1 is a 3U VME single board computer based on MC68010 processor.It supports embedded real-time operating system such as VxWorks and RTEMS,performs control logic operation and field data acquisition.It communicates with peripheral modules via VME bus,serial port and SCSI.It has onboard watchdog timer and real-time clock for reliable long-running embedded control.

Installation

Insert MVME110-1 into standard 3U VME chassis slot,lock the front panel.Fix the board,connect serial cable,SCSI cable and VME backplane.Take ESD protection before power-on.

Interface

‑VME backplane connector

‑Single RS232 serial port

‑SCSI bus interface

‑Watchdog timer

‑RTC battery backup circuit

‑+5V power terminal

Feature

MVME110-1 classic industrial SBC.Typical faults:gold finger oxidation,RAM chip failure,serial transceiver damage,battery leakage.Clean gold finger and test memory before replacement.

Diagnostic

Fault phenomenon:no power on,boot failure,VME bus communication error,serial port no data output,SCSI communication failure.Check VME backplane power supply,clean gold finger,test RAM and communication circuit.

Product Brief

MVME110-1 is Motorola 3U VME single board computer with MC68010 10MHz CPU,512KB RAM,with single RS232 serial port and SCSI interface.It is mainly used for maintenance and replacement of old VME industrial control equipment.ESD protection must be followed during handling.
