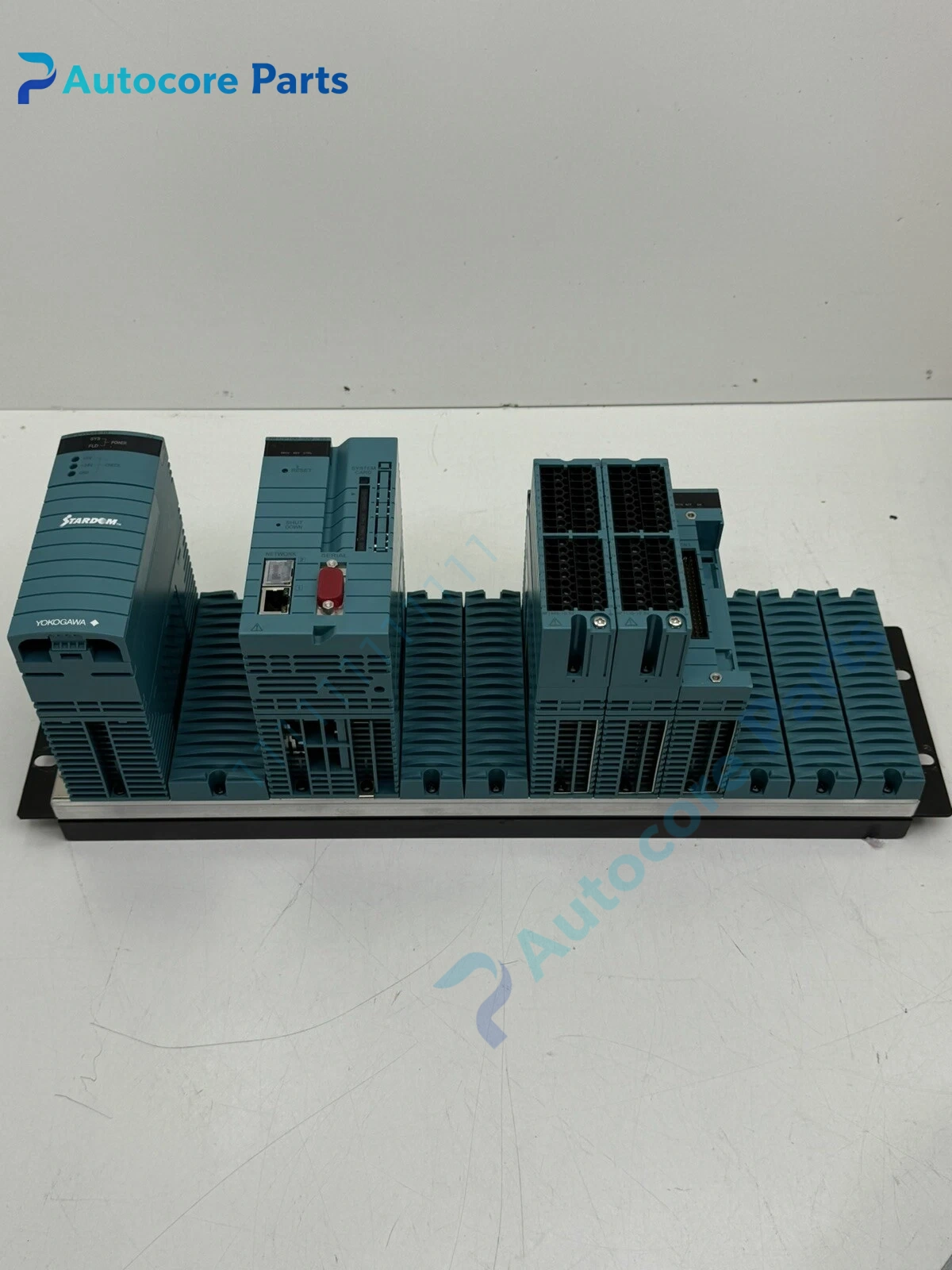

NFCP100-S00 CPU Module Unit

Feature & Principle

It is the core processing unit of STARDOM FCN-100 field control node. It runs IEC61131-3 control programs, collects I/O signal data, completes PID regulation, sequence interlock and logic calculation. Dual Ethernet and serial interfaces realize data interaction with HMI, upper DCS system and field equipment, with battery backup for SRAM data retention.

Specifications

Model: NFCP100-S00 Brand: Yokogawa Series: STARDOM FCN-100 Memory: 128MB main memory, 1MB battery-backed SRAM Communication: 2 × 10/100Mbps Ethernet, RS232 serial port Mounting: Rack plug-in Certification: CE

Components & Diagnostics

Main processor chip, memory module, communication transceiver circuit, backup battery, status LED indicator, backplane connector. Common faults: battery depletion, communication offline, boot failure, program loss, network port damage.

Product Brief

NFCP100-S00 CPU module, Yokogawa STARDOM spare widely used for petrochemical, power and compressor anti-surge control cabinet maintenance.
