NI cRIO-9054 CompactRIO Real-Time FPGA Controller

Feature & Principle

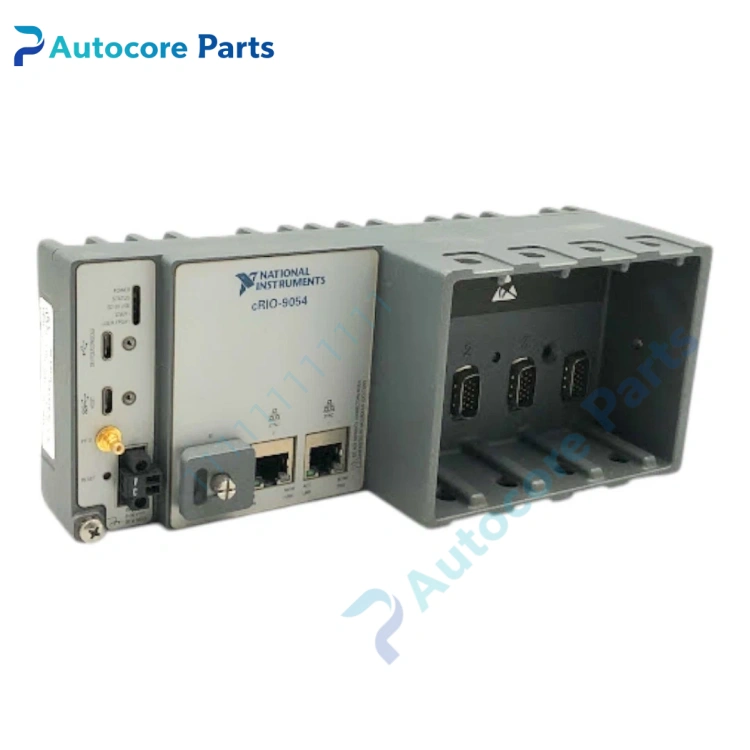

It is NI CompactRIO cRIO-9054 reconfigurable real-time controller. It runs NI Linux Real-Time OS, equipped with Intel Atom dual-core CPU and Xilinx Artix-7 A100T FPGA. The real-time core handles deterministic control logic and communication, FPGA undertakes high-speed parallel I/O timing, trigger and signal processing. It has 4 C-series I/O slots, dual Gigabit Ethernet supporting TSN time synchronization, suitable for distributed measurement, motion control, test and monitoring systems. Programmed via LabVIEW FPGA and NI-DAQmx.

Specifications

Model: cRIO-9054 (PN:786425-01) Brand: NI (National Instruments) CPU: Intel Atom E3805, 1.33GHz dual-core Memory: 2GB DDR3L DRAM, 4GB onboard storage FPGA: Xilinx Artix-7 A100T I/O slot: 4 slots for C series modules Ethernet: 2 × Gigabit Ethernet, TSN supported Power input: 9~30VDC Operating temperature: -20℃ ~ +55℃ Protection class: IP40 Application: Automated test, machinery control, vibration monitoring, distributed data acquisition Certification: CE, FCC

Components & Diagnostics

Real-time mainboard, Artix-7 FPGA chip, Ethernet transceiver, μSD slot, USB interface, status LED. Common faults: firmware corruption, network sync abnormal, FPGA compile failure, power supply undervoltage, slot communication error.

Product Brief

cRIO-9054 real-time FPGA controller, NI CompactRIO series high-performance measurement & control spare widely used for test bench and automation system overhaul and replacement.
