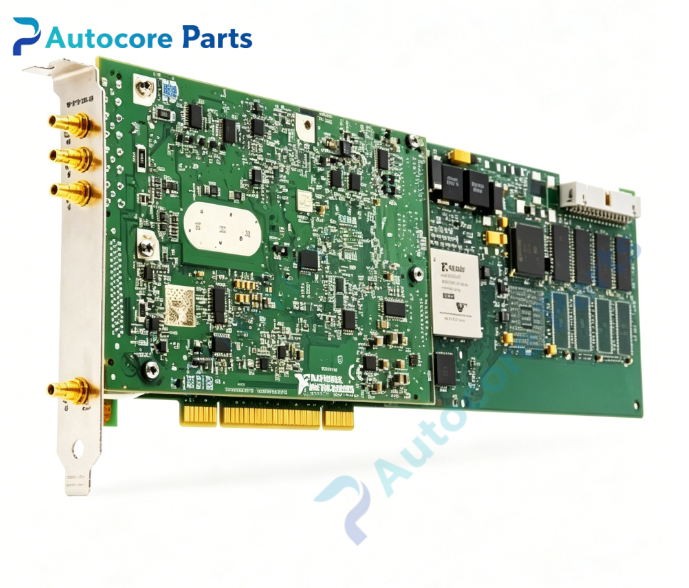

NI PCI-5421 PCI Bus 16-Bit Arbitrary Waveform Generator Board

Technical Specifications

Model:PCI-5421

Brand:NI

Part No:778692-01 /778692-02 /778692-03

Product type:PCI Bus Arbitrary Waveform Generator(AWG) Board

DAC:16-bit resolution

Analog Output:1 channel

Max update rate:100MS/s,interpolation up to 400MS/s

Analog bandwidth:43MHz

Output impedance:software selectable 50Ω /75Ω

Output amplitude:12Vpp max into 50Ω load

Onboard memory:8MB /32MB /256MB optional

Function:DDS direct digital synthesis,arbitrary waveform sequencing,marker output,external reference clock,external trigger,RTSI multi-board synchronization

Bus:32-bit PCI

Dimension:175mm107mm20mm

Weight:0.23kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-5421 belongs to NI arbitrary waveform generator platform.It works with standard PCI industrial PC,supported by NI-FGEN driver and LabVIEW,widely used for custom arbitrary waveform simulation,communication signal test,component characterization and stimulus-response test in legacy ATE systems.It is spare part for legacy test equipment overhaul.

Function

PCI-5421 is PCI-based 16-bit arbitrary waveform generator adopting SMC shared memory shturl.cc/4VGor supports standard sine,square,triangle waveforms and user-defined arbitrary waveform sequences,DDS provides high precision frequency control.Software selectable impedance adapts to different test loads.Deep shared onboard memory supports long waveform sequences,RTSI bus enables multi-card synchronous output for multi-channel automated test systems.

Installation

Insert PCI-5421 into computer PCI slot and fasten bracket.Connect signal cables to SMB connectors.Install NI-FGEN instrument driver.Take ESD protection before installation.

Interface

‑SMB waveform output connector

‑SMB reference clock input connector

‑SMB trigger & marker port

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-5421 classic NI PCI high resolution arbitrary waveform generator board.Typical faults:SMB connector oxidation,output amplifier damage,onboard memory failure.Inspect waveform output and amplitude calibration before replacement.

Diagnostic

Fault phenomenon:no waveform output,amplitude abnormal,frequency deviation,sync failure.Check SMB cable,termination resistor,PCI slot contact,NI-FGEN driver and impedance/gain configuration.

Product Brief

PCI-5421 is NI PCI bus 1-channel 16-bit AWG board with 100MS/s update rate and 43MHz bandwidth,supporting DDS and large shared memory,for custom waveform stimulus testing and legacy automated test equipment renovation.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
